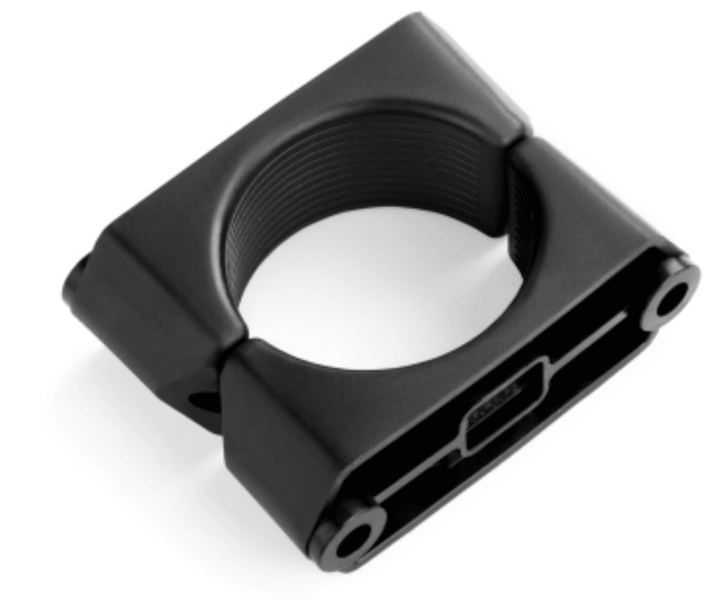

Polyamide Two Bolt Cable Cleat | For Single Cable
High density Nylon 66 two bolt cable cleat for single cable installations. Two piece, two bolt fixing design that can be stacked on common fixings. Sunlight and weather resistant, suitable…
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Key Features
Technical Specifications
Applications
Specifications
| Cable Dia. min (mm) | Cable Dia. max (mm) | B (mm) | C (mm) | D (mm) | E (mm) | P/N |
|---|---|---|---|---|---|---|
| 50.0 | 58.0 | 89.0 | 102.0 | 45.0 | 80.0 | ATC(P) 50-58 |
| 56.0 | 64.0 | 93.0 | 102.0 | 45.0 | 80.0 | ATC(P) 56-64 |
| 62.0 | 70.0 | 98.0 | 114.0 | 45.0 | 92.0 | ATC(P) 62-70 |
| 68.0 | 76.0 | 104.0 | 114.0 | 50.0 | 92.0 | ATC(P) 68-76 |
| 74.0 | 82.0 | 110.0 | 126.0 | 50.0 | 104.0 | ATC(P) 74-82 |
| 80.0 | 88.0 | 118.0 | 126.0 | 50.0 | 104.0 | ATC(P) 80-88 |
| 86.0 | 94.0 | 121.0 | 126.0 | 60.0 | 114.0 | ATC(P) 86-94 |
Notes
All dimensions are in mm. Standard tolerance applies.
Can be stacked on common fixings.

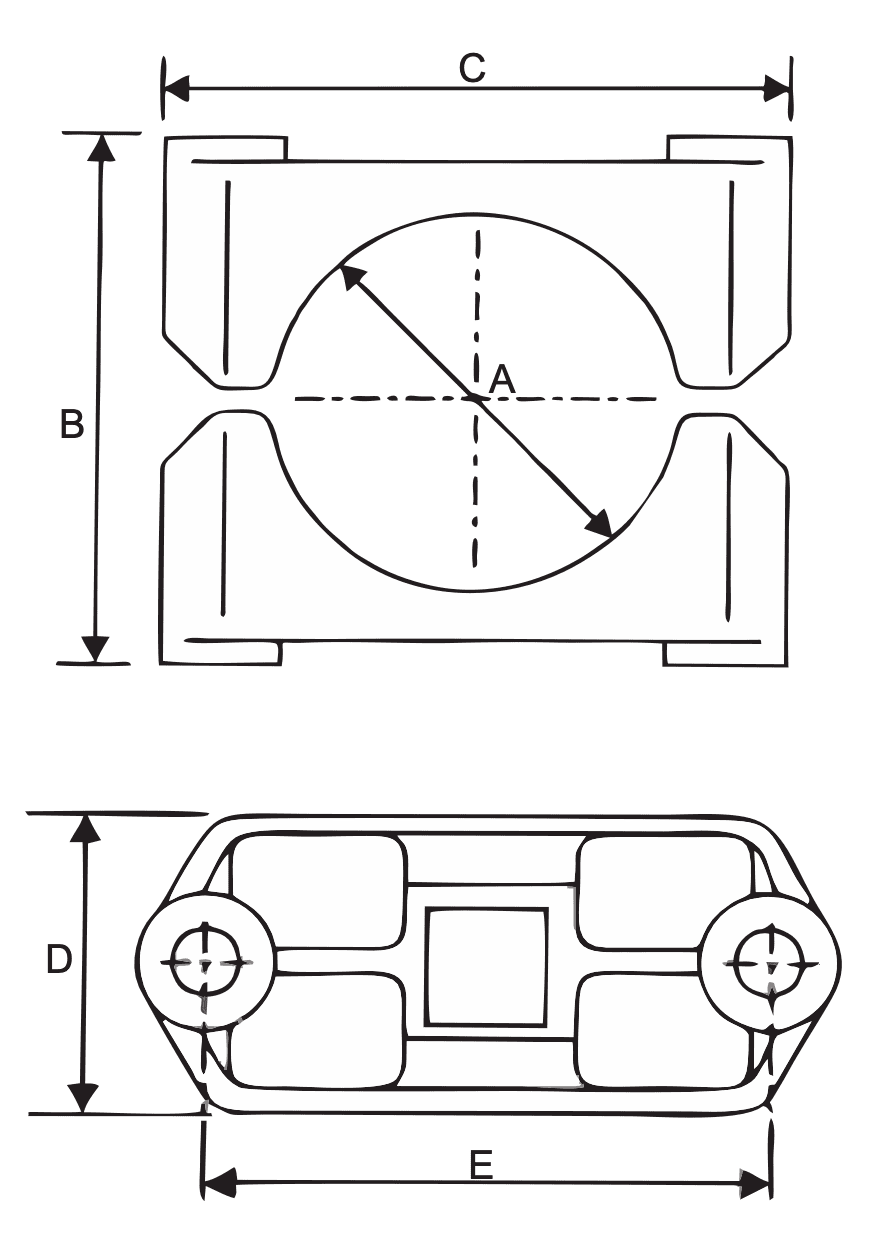

Technical Drawing
Aluminium Trefoil Cable Cleat | For Trefoil Cable Formation
Aluminium alloy trefoil cable cleat for three-cable trefoil formation installations. Epoxy coated, suitable for LV/MV/HV…
Aluminium Single Hole Fixing Trefoil Cable Cleat | For Trefoil Cable Formation
Aluminium alloy single hole fixing trefoil cable cleat for three-cable trefoil formation. Epoxy coated, suitable…

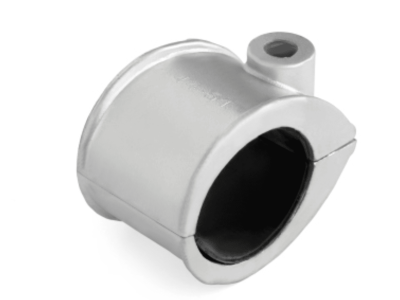

Aluminium Claw Cable Cleat | For Single Cable
