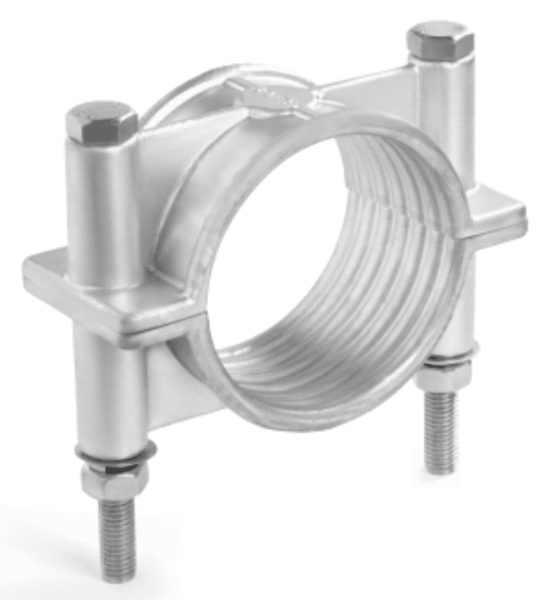

Aluminium Two Bolt Cable Cleat | Single Cable
Two-piece, two-bolt aluminium alloy cable cleat for single cable installations. Epoxy coated, suitable for LV/MV/HV cables with diameters from 30 to 150 mm. Can be double stacked on common fixings.…
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Key Features
Technical Specifications
Applications
Specifications
| Cable Dia. A min (mm) | Cable Dia. A max (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | P/N |
|---|---|---|---|---|---|---|---|---|---|
| 30 | 40 | 40.2 | 21.0 | 4.0 | 23.6 | 75.5 | 95.0 | 45.0 | ATC 30-40 |
| 40 | 50 | 50.2 | 20.2 | 4.0 | 30.0 | 84.5 | 110.0 | 45.0 | ATC 40-50 |
| 51 | 57 | 57.1 | 32.0 | 6.5 | 33.5 | 84.3 | 114.5 | 49.0 | ATC 51-57 |
| 57 | 64 | 64.4 | 28.8 | 4.0 | 37.8 | 94.0 | 122.0 | 48.0 | ATC 57-64 |
| 64 | 70 | 70.5 | 32.2 | 4.0 | 40.0 | 98.0 | 124.0 | 46.0 | ATC 64-70 |
| 70 | 76 | 76.5 | 35.2 | 4.0 | 44.8 | 110.7 | 136.0 | 48.0 | ATC 70-76 |
| 76 | 83 | 83.5 | 38.2 | 6.0 | 48.0 | 117.7 | 143.0 | 52.0 | ATC 76-83 |
| 83 | 89 | 89.5 | 41.0 | 5.0 | 48.8 | 124.2 | 149.2 | 60.0 | ATC 83-89 |
| 89 | 95 | 95.5 | 44.8 | 5.0 | 52.8 | 130.5 | 158.2 | 59.0 | ATC 89-95 |
| 95 | 101 | 101.5 | 47.8 | 5.0 | 55.3 | 126.1 | 154.0 | 65.0 | ATC 95-101 |
| 101 | 108 | 108.0 | 57.0 | 6.0 | 59.0 | 136.5 | 165.0 | 65.0 | ATC 101-108 |
| 108 | 114 | 114.1 | 60.0 | 6.0 | 62.0 | 142.0 | 171.0 | 65.0 | ATC 108-114 |
| 115 | 125 | 125.5 | 58.0 | 6.0 | 63.5 | 150.0 | 175.0 | 85.0 | ATC 115-125 |
| 125 | 135 | 136.1 | 62.8 | 6.0 | 70.2 | 166.0 | 194.0 | 85.0 | ATC 125-135 |
| 135 | 150 | 150.5 | 75.0 | 6.0 | 81.0 | 174.0 | 206.0 | 76.0 | ATC 135-150 |
Notes
All dimensions are in mm. Standard tolerance applies.
Conforming to IEC 61914.
Rubber liner optionally available.

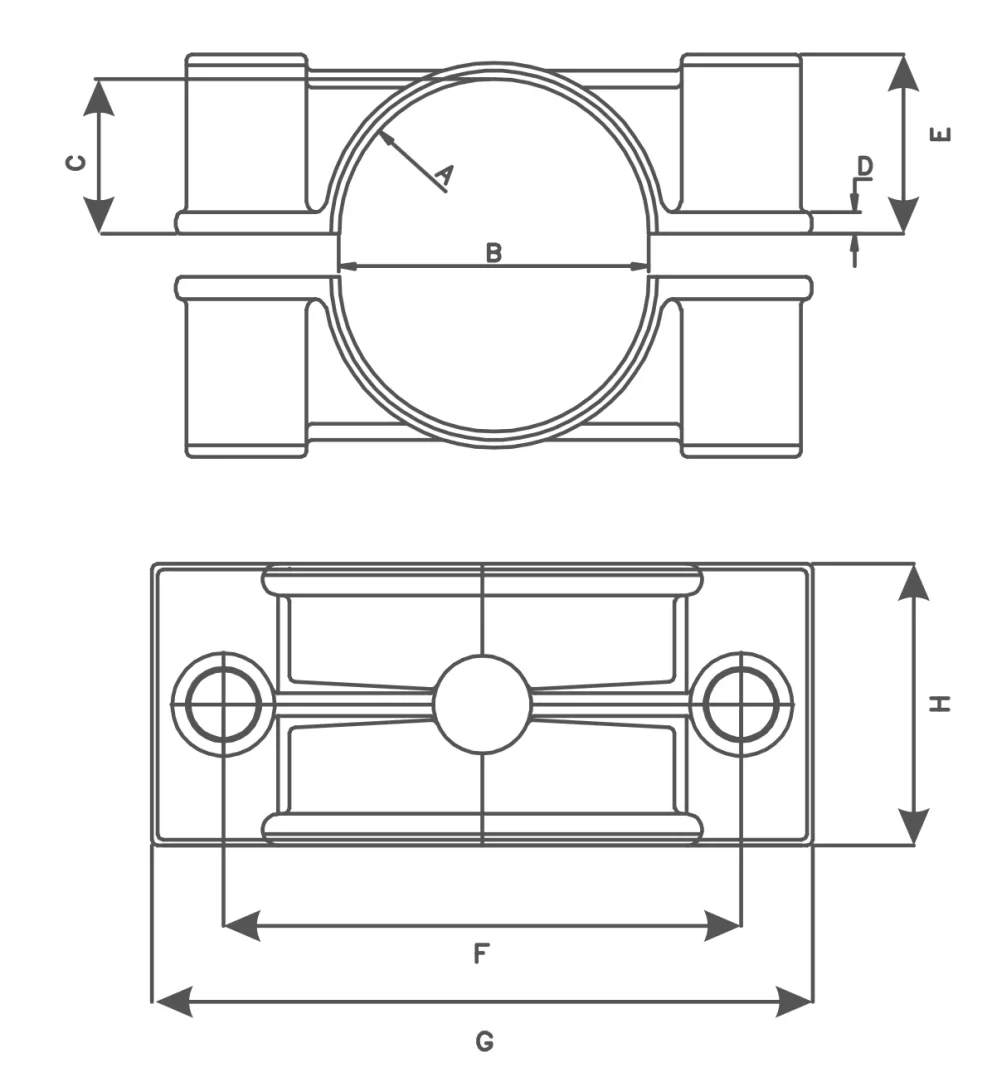

Technical Drawing
