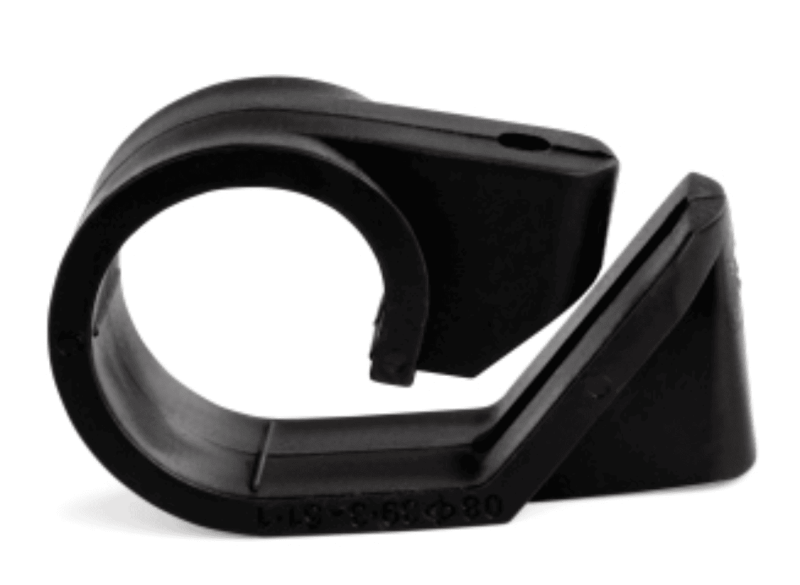

Polyamide Single Bolt Cable Cleat | For Single Cable
High density Nylon 66 single bolt cable cleat for single cable installations. Single piece, one bolt fixing design that can be double stacked on a single fixing. Sunlight and weather…
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Key Features
Technical Specifications
Applications
Specifications
| Cable Dia. min (mm) | Cable Dia. max (mm) | B min (mm) | B max (mm) | C (mm) | D (mm) | P/N |
|---|---|---|---|---|---|---|
| 10.5 | 14.5 | 15.0 | 18.0 | 32.0 | 12.0 | ACC(P) 10.5-14.5 |
| 12.2 | 16.7 | 17.0 | 22.0 | 36.0 | 14.0 | ACC(P) 12.2-16.7 |
| 14.6 | 19.8 | 21.0 | 26.0 | 43.0 | 16.0 | ACC(P) 14.6-19.8 |
| 17.7 | 24.0 | 25.0 | 31.0 | 51.0 | 18.0 | ACC(P) 17.7-24.0 |
| 21.7 | 28.5 | 30.0 | 37.0 | 57.0 | 20.0 | ACC(P) 21.7-28.5 |
| 26.2 | 34.2 | 35.0 | 43.0 | 65.0 | 22.0 | ACC(P) 26.2-34.2 |
| 31.9 | 41.6 | 42.0 | 52.0 | 78.0 | 25.0 | ACC(P) 31.9-41.6 |
| 39.3 | 51.1 | 50.0 | 62.0 | 91.0 | 26.0 | ACC(P) 39.3-51.1 |
Notes
All dimensions are in mm. Standard tolerance applies.
Can be double stacked on a single fixing.

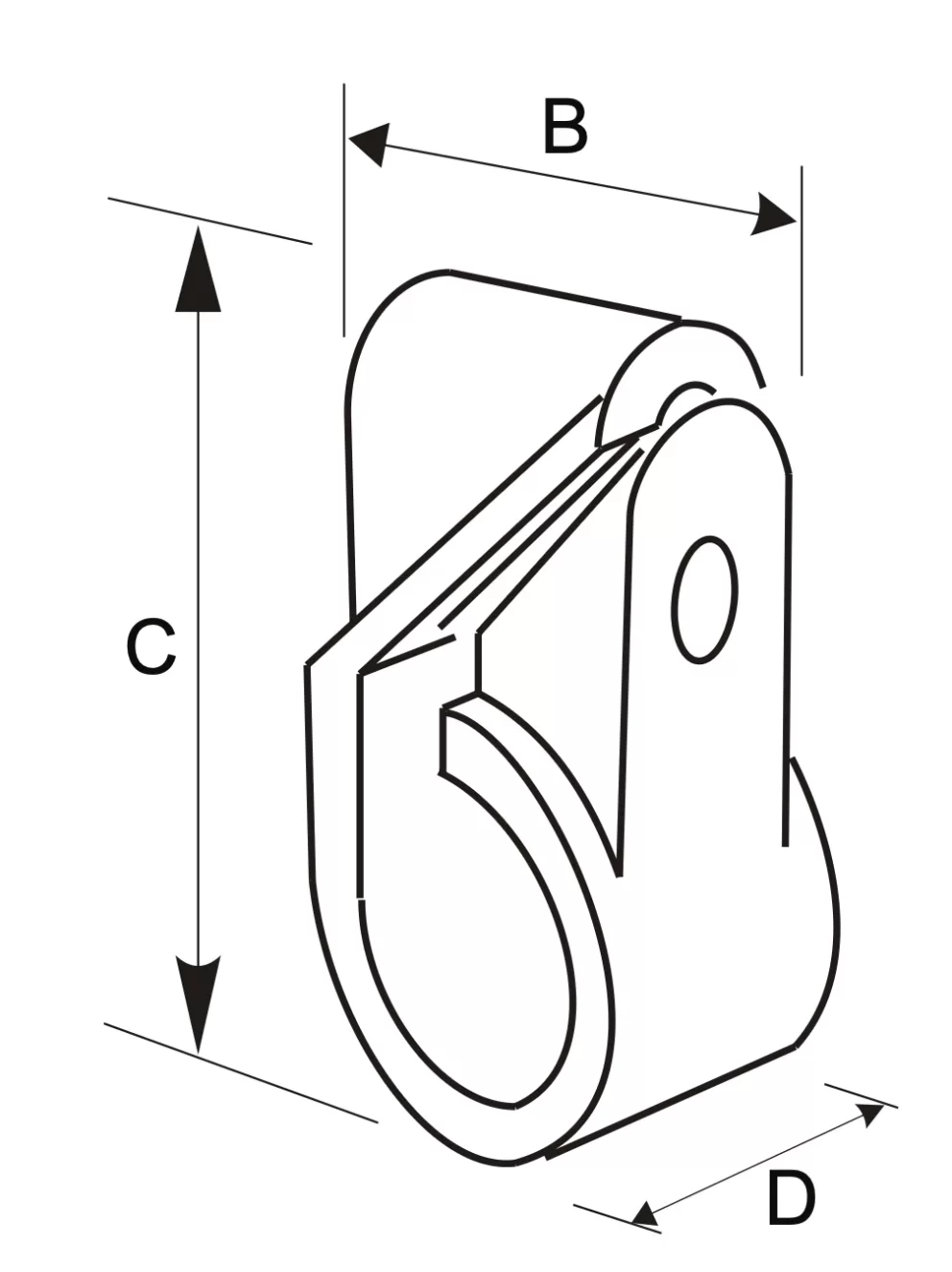

Technical Drawing
