Aluminium Trefoil Cable Cleat | For Trefoil Cable Formation
Aluminium alloy trefoil cable cleat for three-cable trefoil formation installations. Epoxy coated, suitable for LV/MV/HV cables with diameters from 15 to 155 mm. Conforming to IEC 61914.
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Key Features
Technical Specifications
Applications
Specifications
| Cable Dia. A min (mm) | Cable Dia. A max (mm) | B (mm) | C (mm) | D (mm) | E (mm) | P/N |
|---|---|---|---|---|---|---|
| 15.0 | 30.0 | 108.0 | 80.0 | 45.0 | 30.0 | ATFC(SP) 15-30 |
| 30.0 | 45.0 | 151.0 | 120.0 | 66.0 | 30.0 | ATFC(SP) 30-45 |
| 45.0 | 60.0 | 184.0 | 151.0 | 85.0 | 40.0 | ATFC(SP) 45-60 |
| 60.0 | 75.0 | 226.0 | 193.0 | 114.0 | 40.0 | ATFC(SP) 60-75 |
| 75.0 | 90.0 | 267.0 | 235.0 | 142.0 | 40.0 | ATFC(SP) 75-90 |
| 90.0 | 107.0 | 319.0 | 282.0 | 171.0 | 50.0 | ATFC(SP) 90-107 |
| 107.0 | 129.0 | 390.0 | 352.0 | 203.0 | 57.0 | ATFC(SP) 107-129 |
| 129.0 | 155.0 | 455.0 | 397.0 | 244.0 | 57.0 | ATFC(SP) 129-155 |
Notes
All dimensions are in mm. Standard tolerance applies.
Conforming to IEC 61914.
Rubber liner optionally available.

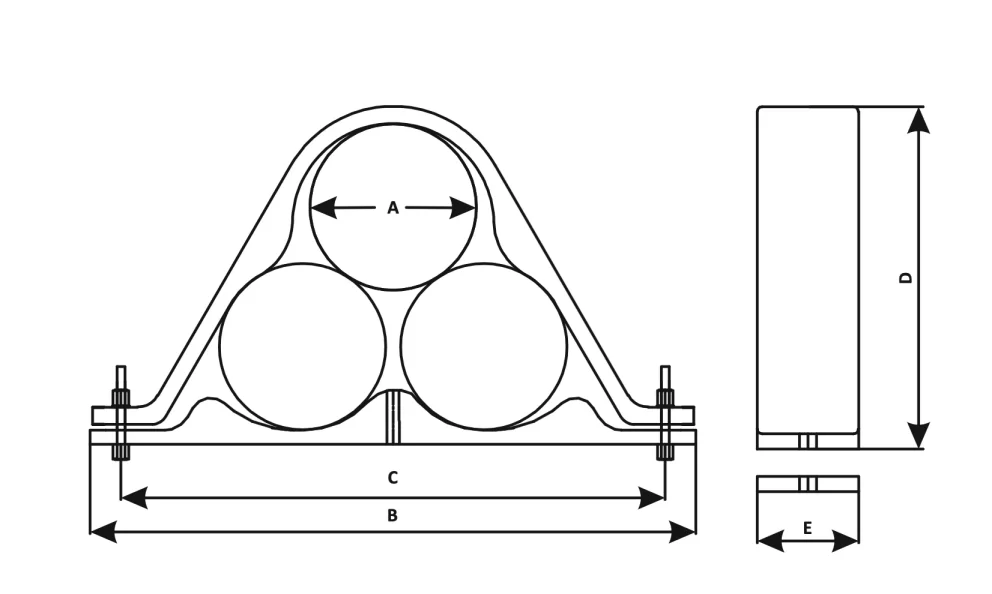

Technical Drawing
Aluminium Single Hole Fixing Trefoil Cable Cleat | For Trefoil Cable Formation
Aluminium alloy single hole fixing trefoil cable cleat for three-cable trefoil formation. Epoxy coated, suitable…
Aluminium Claw Cable Cleat | For Single Cable
Aluminium alloy claw cable cleat for single cable installations. Two piece, one bolt fixing design…

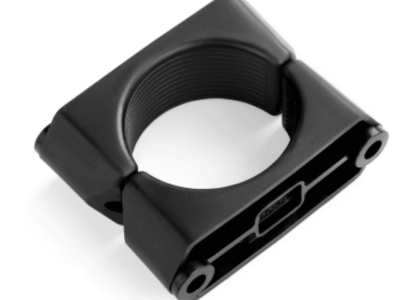

Polyamide Two Bolt Cable Cleat | For Single Cable
