Aluminium Single Hole Fixing Trefoil Cable Cleat | For Trefoil Cable Formation
Aluminium alloy single hole fixing trefoil cable cleat for three-cable trefoil formation. Epoxy coated, suitable for LV/MV cables with diameters from 15 to 76 mm. Single and two hole fixing…
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Key Features
Technical Specifications
Applications
Specifications
| Cable Dia. min (mm) | Cable Dia. max (mm) | B (mm) | C (mm) | D (mm) | P/N |
|---|---|---|---|---|---|
| 24.0 | 25.0 | 94.0 | 75.0 | 38.0 | ATFC 24-25 |
| 25.0 | 27.0 | 97.0 | 75.0 | 38.0 | ATFC 25-27 |
| 27.0 | 28.0 | 100.0 | 75.0 | 38.0 | ATFC 27-28 |
| 28.0 | 30.0 | 103.0 | 76.0 | 38.0 | ATFC 28-30 |
| 30.0 | 32.0 | 105.0 | 79.0 | 38.0 | ATFC 30-32 |
| 32.0 | 34.0 | 106.0 | 83.0 | 38.0 | ATFC 32-34 |
| 34.0 | 35.0 | 109.0 | 86.0 | 38.0 | ATFC 34-35 |
| 35.0 | 36.0 | 113.0 | 89.0 | 38.0 | ATFC 35-36 |
| 36.0 | 38.0 | 116.0 | 92.0 | 38.0 | ATFC 36-38 |
| 38.0 | 40.0 | 119.0 | 95.0 | 38.0 | ATFC 38-40 |
| 40.0 | 41.0 | 122.0 | 99.0 | 38.0 | ATFC 40-41 |
| 41.0 | 43.0 | 124.0 | 105.0 | 38.0 | ATFC 41-43 |
| 43.0 | 44.0 | 127.0 | 108.0 | 38.0 | ATFC 43-44 |
| 44.0 | 46.0 | 130.0 | 112.0 | 38.0 | ATFC 44-46 |
| 46.0 | 48.0 | 133.0 | 114.0 | 38.0 | ATFC 46-48 |
| 48.0 | 49.0 | 137.0 | 118.0 | 38.0 | ATFC 48-49 |
| 49.0 | 51.0 | 140.0 | 121.0 | 38.0 | ATFC 49-51 |
| 51.0 | 53.0 | 143.0 | 124.0 | 38.0 | ATFC 51-53 |
| 53.0 | 54.0 | 146.0 | 127.0 | 38.0 | ATFC 53-54 |
| 54.0 | 55.5 | 155.0 | 133.0 | 44.0 | ATFC 54-55 |
| 55.5 | 57.0 | 158.0 | 137.0 | 44.0 | ATFC 55-57 |
| 57.0 | 59.0 | 160.0 | 141.0 | 44.0 | ATFC 57-59 |
| 59.0 | 60.0 | 163.0 | 145.0 | 44.0 | ATFC 59-60 |
| 60.0 | 62.0 | 165.0 | 148.0 | 44.0 | ATFC 60-62 |
| 62.0 | 63.5 | 168.0 | 152.0 | 44.0 | ATFC 62-63 |
| 63.5 | 65.0 | 172.0 | 156.0 | 44.0 | ATFC 63-65 |
| 65.0 | 66.5 | 176.0 | 160.0 | 44.0 | ATFC 65-66 |
| 66.5 | 68.0 | 178.0 | 164.0 | 44.0 | ATFC 66-68 |
| 68.0 | 70.0 | 181.0 | 168.0 | 44.0 | ATFC 68-70 |
| 70.0 | 71.5 | 187.0 | 171.0 | 44.0 | ATFC 70-71 |
| 71.5 | 73.0 | 190.0 | 175.0 | 44.0 | ATFC 71-73 |
| 73.0 | 74.5 | 193.0 | 179.0 | 44.0 | ATFC 73-74 |
| 74.5 | 76.0 | 197.0 | 183.0 | 44.0 | ATFC 74-76 |
Notes
All dimensions are in mm. Standard tolerance applies.
Dimensions for two bolt fixing available on request.

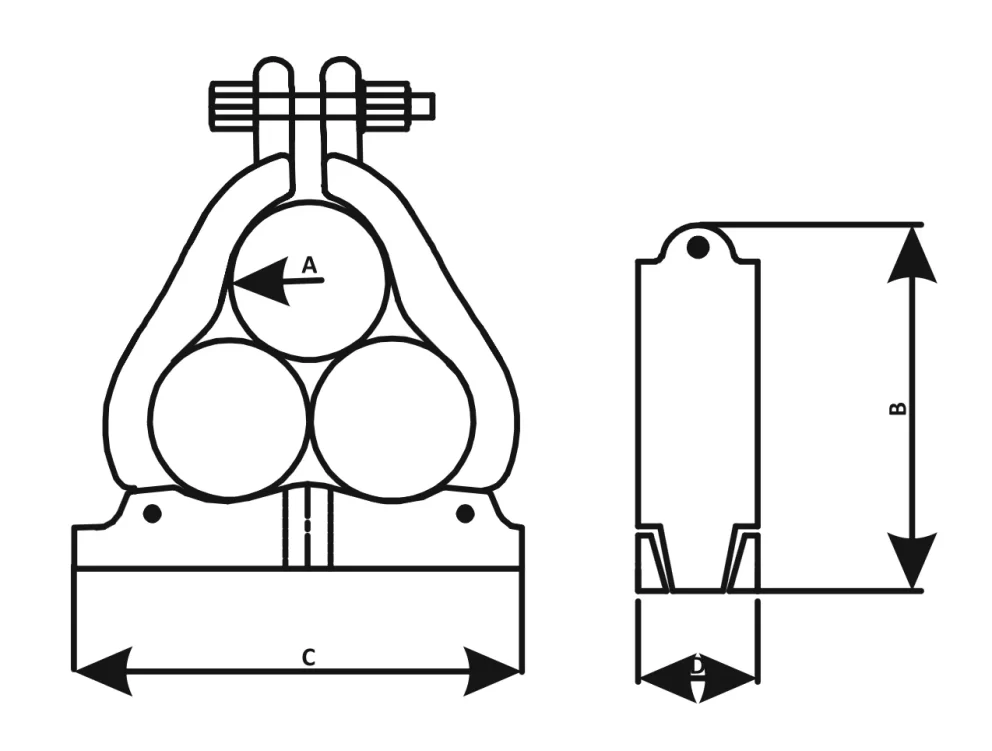

Technical Drawing
