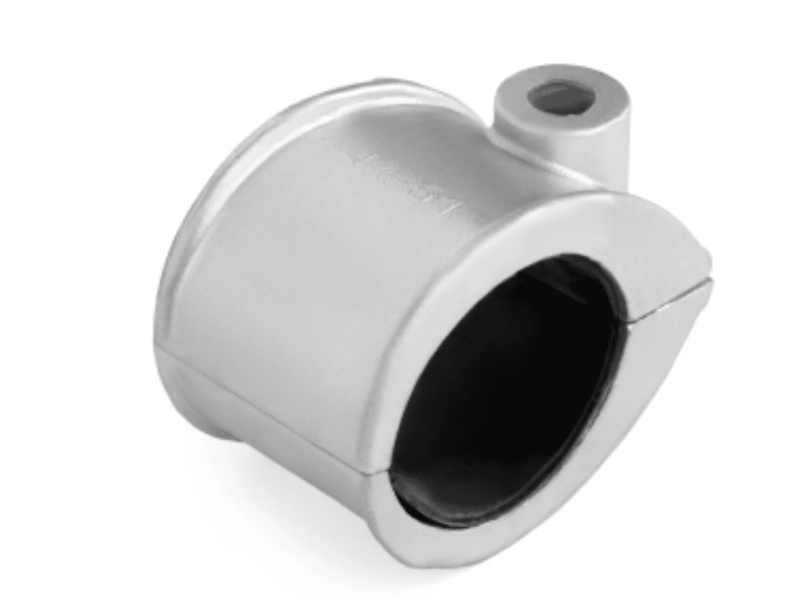

Aluminium Claw Cable Cleat | For Single Cable
Aluminium alloy claw cable cleat for single cable installations. Two piece, one bolt fixing design that can be stacked to a maximum of three on one fixing. Epoxy coated, suitable…
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Key Features
Technical Specifications
Applications
Specifications
| Cable Dia. min (mm) | Cable Dia. max (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | P/N |
|---|---|---|---|---|---|---|---|---|
| 10.0 | 13.0 | 6.5 | 3.0 | 5.0 | 6.3 | 40.0 | 46.8 | ACC 10-13 |
| 13.0 | 16.0 | 9.0 | 3.0 | 6.5 | 8.3 | 40.0 | 46.8 | ACC 13-16 |
| 16.0 | 19.0 | 10.0 | 3.5 | 8.3 | 9.3 | 42.0 | 46.8 | ACC 16-19 |
| 19.0 | 22.0 | 11.3 | 3.5 | 11.0 | 9.7 | 46.0 | 46.8 | ACC 19-22 |
| 22.0 | 25.0 | 12.7 | 4.3 | 12.5 | 11.3 | 50.0 | 46.8 | ACC 22-25 |
| 25.0 | 32.0 | 16.3 | 4.3 | 16.2 | 12.5 | 56.0 | 46.8 | ACC 25-32 |
| 32.0 | 38.0 | 19.6 | 6.0 | 16.0 | 19.3 | 62.0 | 47.0 | ACC 32-38 |
| 38.0 | 44.0 | 23.0 | 6.0 | 19.0 | 22.3 | 69.0 | 47.0 | ACC 38-44 |
| 44.0 | 51.0 | 26.0 | 6.2 | 22.0 | 25.3 | 75.0 | 47.0 | ACC 44-51 |
Notes
All dimensions are in mm. Standard tolerance applies.
Conforming to IEC 61914.
Rubber liner optionally available.
Can be stacked to a maximum of three on one fixing.
