DIN 46235
Compression Cable Lugs & Connectors

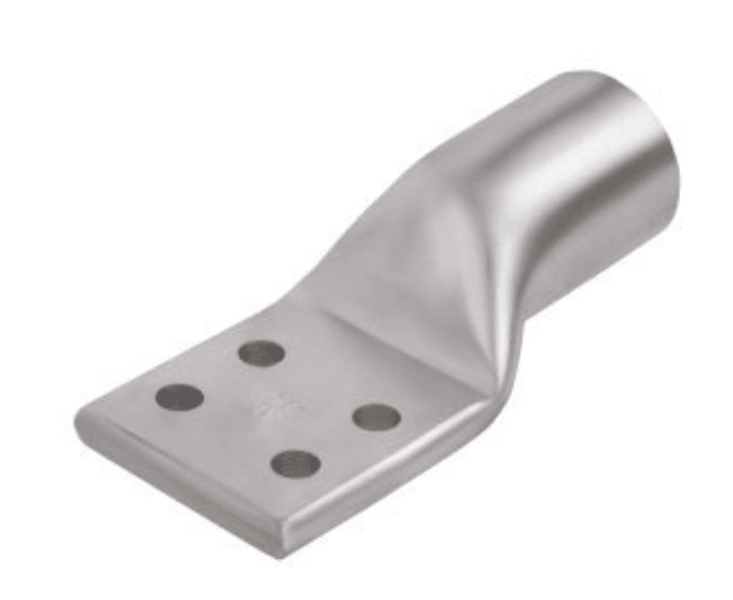

Two Hole Cable Lugs (Round Multi-Stranded Round / Sector-Shaped Conductors)
Two-hole cable lugs for round, multi-stranded round and sector-shaped conductors, tube dimensions to DIN 46235.
Material: E-Copper
Finish: Natural or Electro Tinned
Nominal range: 185-1000 mm² (per table)
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Key Features
Tube dimensions to DIN 46235
Two-hole palm
Natural or electro tinned finish
E-copper material
Technical Specifications
Material: E-Copper
Finish: Natural or Electro Tinned
Nominal range: 185-1000 mm² (per table)
Applications
Power and busbar terminations
Heavy-duty panel and switchgear connections
Specifications
| Nom-X Section Area (mm²) | Size of Stud Hole | d1 (mm) | a (mm) | b (mm) | d2 (mm) | d3 (mm) | cu2081 (mm) | cu2082 (mm) | h (mm) | g (mm) | l (mm) | P/N With Inspection Hole | P/N W/o Inspection Hole | Units/Pack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 185 | M8 | 19.0 | 32.0 | 56.0 | 8.4 | 25.5 | 22.0 | 20.0 | 25.0 | 35.0 | 113.0 | ACUS4HI 185-8 | ACUS4H 185-8 | 10 |
| 185 | M10 | 19.0 | 32.0 | 56.0 | 10.5 | 25.5 | 22.0 | 20.0 | 25.0 | 35.0 | 113.0 | ACUS4HI 185-10 | ACUS4H 185-10 | 10 |
| 240 | M8 | 21.5 | 32.0 | 56.0 | 8.4 | 29.0 | 22.0 | 20.0 | 25.0 | 35.0 | 117.0 | ACUS4HI 240-8 | ACUS4H 240-8 | 10 |
| 240 | M10 | 21.5 | 32.0 | 56.0 | 10.5 | 29.0 | 22.0 | 20.0 | 25.0 | 35.0 | 117.0 | ACUS4HI 240-10 | ACUS4H 240-10 | 10 |
| 300 | M8 | 24.5 | 40.0 | 56.0 | 8.4 | 32.0 | 22.0 | 20.0 | 25.0 | 35.0 | 125.0 | ACUS4HI 300-8 | ACUS4H 300-8 | 10 |
| 300 | M10 | 24.5 | 40.0 | 56.0 | 10.5 | 32.0 | 22.0 | 20.0 | 25.0 | 35.0 | 125.0 | ACUS4HI 300-10 | ACUS4H 300-10 | 10 |
| 400 | M8 | 27.5 | 47.0 | 56.0 | 8.4 | 38.5 | 22.0 | 20.0 | 25.0 | 35.0 | 132.0 | ACUS4HI 400-10 | ACUS4H 400-10 | 5 |
| 400 | M10 | 27.5 | 47.0 | 56.0 | 10.5 | 38.5 | 22.0 | 20.0 | 25.0 | 35.0 | 132.0 | ACUS4HI 400-12 | ACUS4H 400-12 | 5 |
| 500 | M8 | 31.0 | 47.0 | 60.0 | 8.4 | 42.0 | 22.0 | 20.0 | 25.0 | 35.0 | 132.0 | ACUS4HI 500-8 | ACUS4H 500-8 | 5 |
| 500 | M10 | 31.0 | 47.0 | 60.0 | 10.5 | 42.0 | 22.0 | 20.0 | 25.0 | 35.0 | 132.0 | ACUS4HI 500-10 | ACUS4H 500-10 | 5 |
| 630 | M8 | 34.5 | 47.0 | 64.0 | 8.4 | 44.0 | 22.0 | 20.0 | 25.0 | 35.0 | 132.0 | ACUS4HI 630-8 | ACUS4H 630-8 | 2 |
| 630 | M10 | 34.5 | 47.0 | 64.0 | 10.5 | 44.0 | 22.0 | 20.0 | 25.0 | 35.0 | 132.0 | ACUS4HI 630-10 | ACUS4H 630-10 | 2 |
| 800 | M8 | 40.0 | 52.0 | 75.0 | 8.4 | 52.0 | 22.0 | 20.0 | 25.0 | 35.0 | 149.0 | ACUS4HI 800-8 | ACUS4H 800-8 | 1 |
| 800 | M10 | 40.0 | 52.0 | 75.0 | 10.5 | 52.0 | 22.0 | 20.0 | 25.0 | 35.0 | 149.0 | ACUS4HI 800-10 | ACUS4H 800-10 | 1 |
| 1000 | M8 | 44.0 | 52.0 | 83.0 | 8.4 | 58.0 | 22.0 | 20.0 | 25.0 | 35.0 | 149.0 | ACUS4HI 1000-8 | ACUS4H 1000-8 | 1 |
| 1000 | M10 | 44.0 | 52.0 | 83.0 | 10.5 | 58.0 | 22.0 | 20.0 | 25.0 | 35.0 | 149.0 | ACUS4HI 1000-10 | ACUS4H 1000-10 | 1 |
Notes
All dimensions are in mm. Table captured from the provided datasheet.
Tube dimensions to DIN 46235.

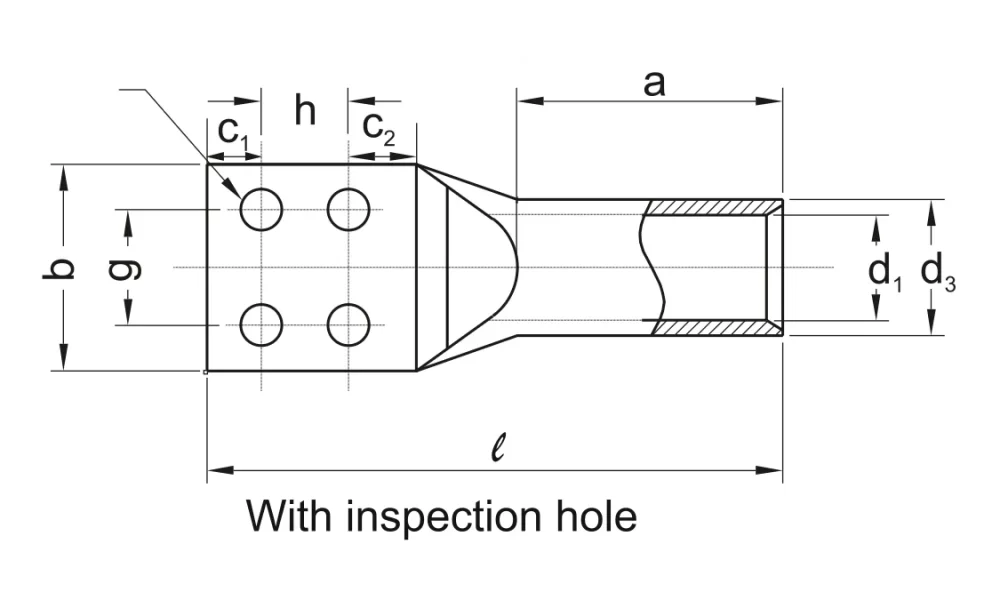

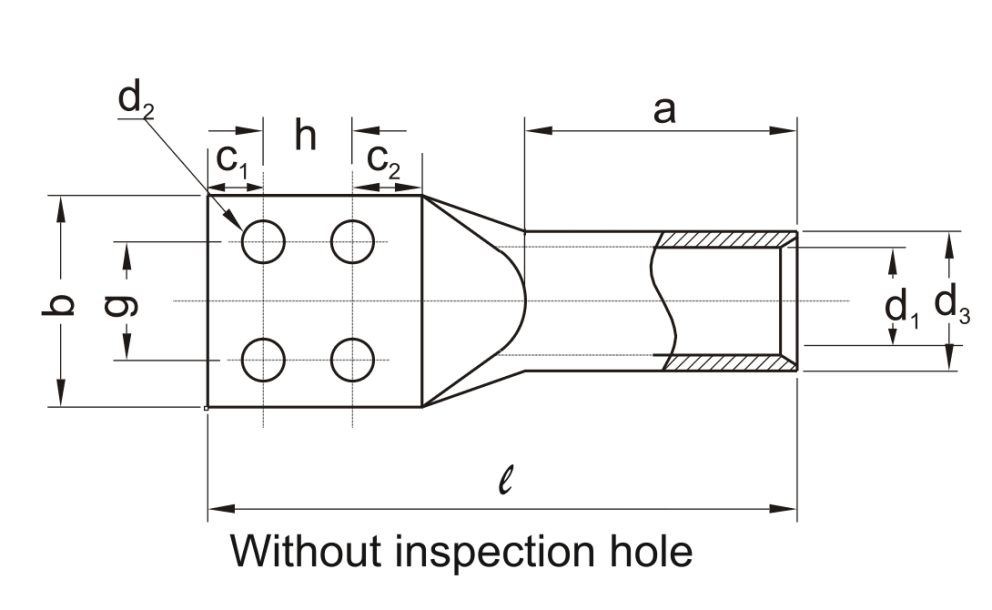

Technical Drawings
