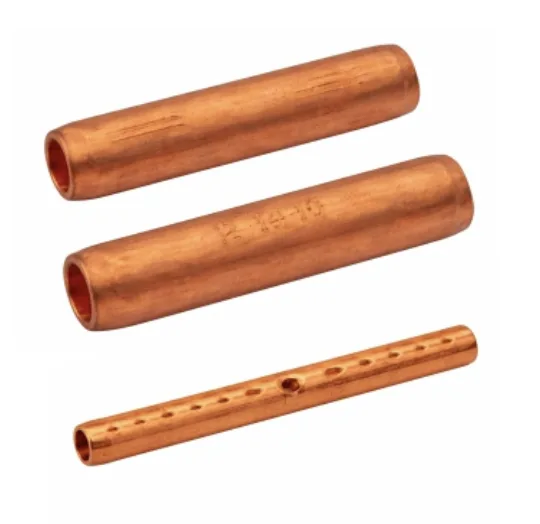

Compression Connector with Chamfered Edges for MV Application & Compression Full Tension Connector

Name: Compression Connector with Chamfered Edges for MV Application & Compression Full Tension Connector
Brand: A-1 Electricals
Availability: InStock

Compression connectors with chamfered edges engineered for medium voltage applications, available in standard and barrier types with tube dimensions to DIN 46267 Part 1. Also includes the compression full tension…

Material: E-Copper

Finish: Natural or Electro Tinned

MV nominal range: 25–1000 mm²

Full tension nominal range: 10–150 mm²

Request Quote Technical Support

ISO 9001:2015

Quality System

CE / RoHS

Compliant

IEC Tested

Certified

Key Features

E-copper material

Natural or electro tinned finish

Chamfered edges for MV application

Tube dimension to DIN 46267 Part 1

Full tension variant conforming to DIN 48085 Part 1

Available in standard and barrier types

Technical Specifications

Material: E-Copper

Finish: Natural or Electro Tinned

MV nominal range: 25–1000 mm²

Full tension nominal range: 10–150 mm²

Applications

Medium voltage cable jointing

MV cable extension sleeves

Full tension cable connections

Panel and distribution connections

Compression Connector with Chamfered Edges for MV Application (Standard)

Nom-X Section Area (mm²)	d1 (mm)	d3 (mm)	l (mm)	P/N	Units/Pack
25	7.0	12.5	60.0	ACILDMV 25	10
35	8.2	12.5	60.0	ACILDMV 35	10
50	10	14.5	65.0	ACILDMV 50	10
70	11.5	16.5	65.0	ACILDMV 70	10
95	13.5	19.0	90.0	ACILDMV 95	10
120	15.5	21.0	90.0	ACILDMV 120	10
150	17.0	23.5	105.0	ACILDMV 150	5
185	19.0	25.5	105.0	ACILDMV 185	5
240	21.5	29.0	125.0	ACILDMV 240	5
300	24.5	32.0	125.0	ACILDMV 300	1
400	27.5	38.5	160.0	ACILDMV 400	1
500	31.0	42.0	170.0	ACILDMV 500	1
630	34.5	44.0	170.0	ACILDMV 630	1
800	40.0	52.0	210.0	ACILDMV 800	1
1000	44.0	58.0	210.0	ACILDMV 1000	1

Notes

All dimensions are in mm. Standard tolerance applies.

Tube dimension to DIN 46267 Part 1.

Technical Drawing

Compression Connector with Chamfered Edges for MV Application & Compression Full Tension Connector MV Standard drawing

Compression Connector with Chamfered Edges for MV Application (Barrier Type)

Nom-X Section Area (mm²)	d1 (mm)	d3 (mm)	l (mm)	P/N	Units/Pack
25	7.0	12.5	60.0	ACILDMVB 25	10
35	8.2	12.5	60.0	ACILDMVB 35	10
50	10	14.5	65.0	ACILDMVB 50	10
70	11.5	16.5	65.0	ACILDMVB 70	10
95	13.5	19.0	90.0	ACILDMVB 95	10
120	15.5	21.0	90.0	ACILDMVB 120	10
150	17.0	23.5	105.0	ACILDMVB 150	5
185	19.0	25.5	105.0	ACILDMVB 185	5
240	21.5	29.0	125.0	ACILDMVB 240	5
300	24.5	32.0	125.0	ACILDMVB 300	1
400	27.5	38.5	160.0	ACILDMVB 400	1
500	31.0	42.0	170.0	ACILDMVB 500	1
630	34.5	44.0	170.0	ACILDMVB 630	1
800	40.0	52.0	210.0	ACILDMVB 800	1
1000	44.0	58.0	210.0	ACILDMVB 1000	1

Notes

All dimensions are in mm. Standard tolerance applies.

Tube dimension to DIN 46267 Part 1.

Technical Drawing

Compression Full Tension Connector

Nom-X Section Area (mm²)	d1 (mm)	d3 (mm)	l (mm)	P/N	Units/Pack
10	4.05	8.5	80.0	ACILDMV 10*	10
16	5.1	8.5	80.0	ACILDMV 16*	10
25	6.3	10.0	80.0	ACILDMV 25	10
35	7.5	12.2	95.0	ACILDMV 35	10
50	9.0	14.5	95.0	ACILDMV 50	10
70	10.5	16.5	95.0	ACILDMV 70	10
95	12.5	21.0	145.0	ACILDMV 95	10
120	14.0	23.0	160.0	ACILDMV 120	10
150	15.7	25.0	160.0	ACILDMV 150	5
