Compression Connector to DIN 46267, Part 1

Name: Compression Connector to DIN 46267, Part 1
Brand: A-1 Electricals
Availability: InStock

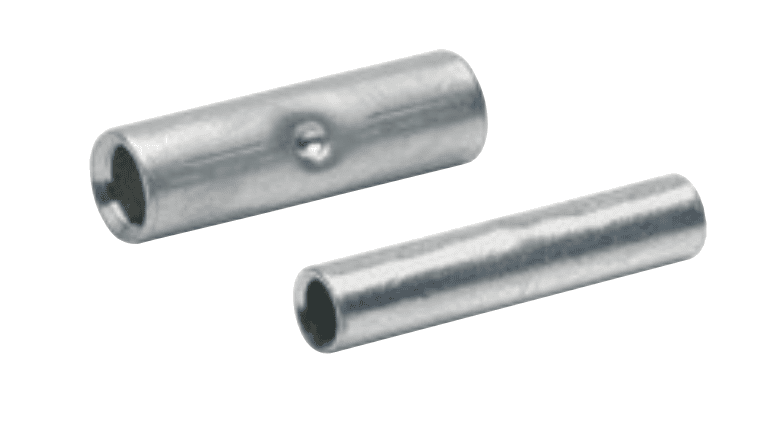

Compression connector to DIN 46267 Part 1, available in standard and barrier type variants.

Material: E-Copper

Finish: Natural or Electro Tinned

Nominal range: 6-1000 mm²

ISO 9001:2015

Quality System

CE / RoHS

Compliant

IEC Tested

Certified

Key Features

E-copper material

Natural or electro tinned finish

Conforming to DIN 46267 Part 1

Technical Specifications

Material: E-Copper

Finish: Natural or Electro Tinned

Nominal range: 6-1000 mm²

Applications

Cable jointing

Cable extension sleeves

Panel and distribution connections

Type 1 (Standard)

Nom-X Section Area (mm²)	d1 (mm)	d3 (mm)	l (mm)	P/N	Units/Pack
6	3.8	5.5	30.0	ACILD 6	100
10	4.5	6.0	30.0	ACILD 10	100
16	5.5	8.5	50.0	ACILD 16	100
25	7.0	10.0	50.0	ACILD 25	50
35	8.2	12.5	50.0	ACILD 35	50
50	10	14.5	56.0	ACILD 50	50
70	11.5	16.5	56.0	ACILD 70	50
95	13.5	19.0	70.0	ACILD 95	25
120	15.5	21.0	70.0	ACILD 120	25
150	17.0	23.5	80.0	ACILD 150	10
185	19.0	25.5	85.0	ACILD 185	10
240	21.5	29.0	90.0	ACILD 240	10
300	24.5	32.0	100.0	ACILD 300	5
400	27.5	38.5	150.0	ACILD 400	5
500	31.0	42.0	160.0	ACILD 500	1
630	34.5	44.0	160.0	ACILD 630	1
800	40.0	52.0	200.0	ACILD 800	1
1000	44.0	58.0	200.0	ACILD 1000	1

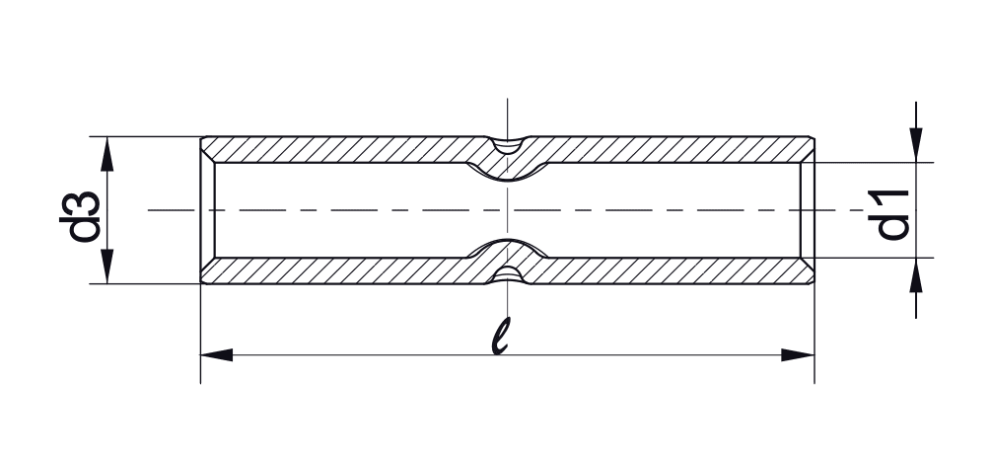

Technical Drawing

Type 2 (Barrier Type)

Nom-X Section Area (mm²)	d1 (mm)	d3 (mm)	l (mm)	P/N	Units/Pack
6	3.8	5.5	30.0	ACILDB 6	100
10	4.5	6.0	30.0	ACILDB 10	100
16	5.5	8.5	50.0	ACILDB 16	100
25	7.0	10.0	50.0	ACILDB 25	50
35	8.2	12.5	50.0	ACILDB 35	50
50	10	14.5	56.0	ACILDB 50	50
70	11.5	16.5	56.0	ACILDB 70	50
95	13.5	19.0	70.0	ACILDB 95	25
120	15.5	21.0	70.0	ACILDB 120	25
150	17.0	23.5	80.0	ACILDB 150	10
185	19.0	25.5	85.0	ACILDB 185	10
240	21.5	29.0	90.0	ACILDB 240	10
300	24.5	32.0	100.0	ACILDB 300	5
400	27.5	38.5	150.0	ACILDB 400	5
500	31.0	42.0	160.0	ACILDB 500	1
630	34.5	44.0	160.0	ACILDB 630	1
800	40.0	52.0	200.0	ACILDB 800	1
1000	44.0	58.0	200.0	ACILDB 1000	1

Technical Drawing
