BS 2562
Cable Glands
Top Hat Cable Gland for MV Termination — For SWA/PVC/XLPE/EPR Cables
Aluminium/Steel top hat cable gland designed for medium voltage cable terminations. For use with SWA/PVC/XLPE/EPR cables. Conforming to design specification BS 2562. Available in three sizes (X, Y, 106) covering…
Design Specification: BS 2562
Material: Aluminium / Steel
Application: MV cables
Gland sizes: X (ATH-X), Y (ATH-Y), 106 (ATH-106)
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Key Features
Top hat cable gland for MV termination
For use with SWA/PVC/XLPE/EPR cables
Material: Aluminium / Steel
Three gland sizes: X, Y, 106
Design specification BS 2562
Technical Specifications
Design Specification: BS 2562
Material: Aluminium / Steel
Application: MV cables
Gland sizes: X (ATH-X), Y (ATH-Y), 106 (ATH-106)
Applications
Medium voltage cable terminations
SWA, PVC, XLPE and EPR cable installations
MV switchgear and transformer connections
Indoor MV panel cable entries
Specifications
| Gland Size | P/N | b1 (mm) | b2 (mm) | b3 (mm) | b4 (mm) | d1 (mm) | d2 (mm) | l (mm) | t (mm) |
|---|---|---|---|---|---|---|---|---|---|
| X | ATH-X | 90.0 | 66.0 | 90.0 | 66.0 | 68.0 | 11.0 | 140.0 | 1.0 |
| Y | ATH-Y | 115.0 | 86.0 | 125.0 | 95.0 | 97.0 | 15.0 | 150.0 | 1.5 |
| 106 | ATH-106 | 137.0 | 104.0 | 137.0 | 104.0 | 106.0 | 15.0 | 150.0 | 1.5 |
Notes
All dimensions are in mm. Standard tolerance applies.
Design specification: BS 2562.

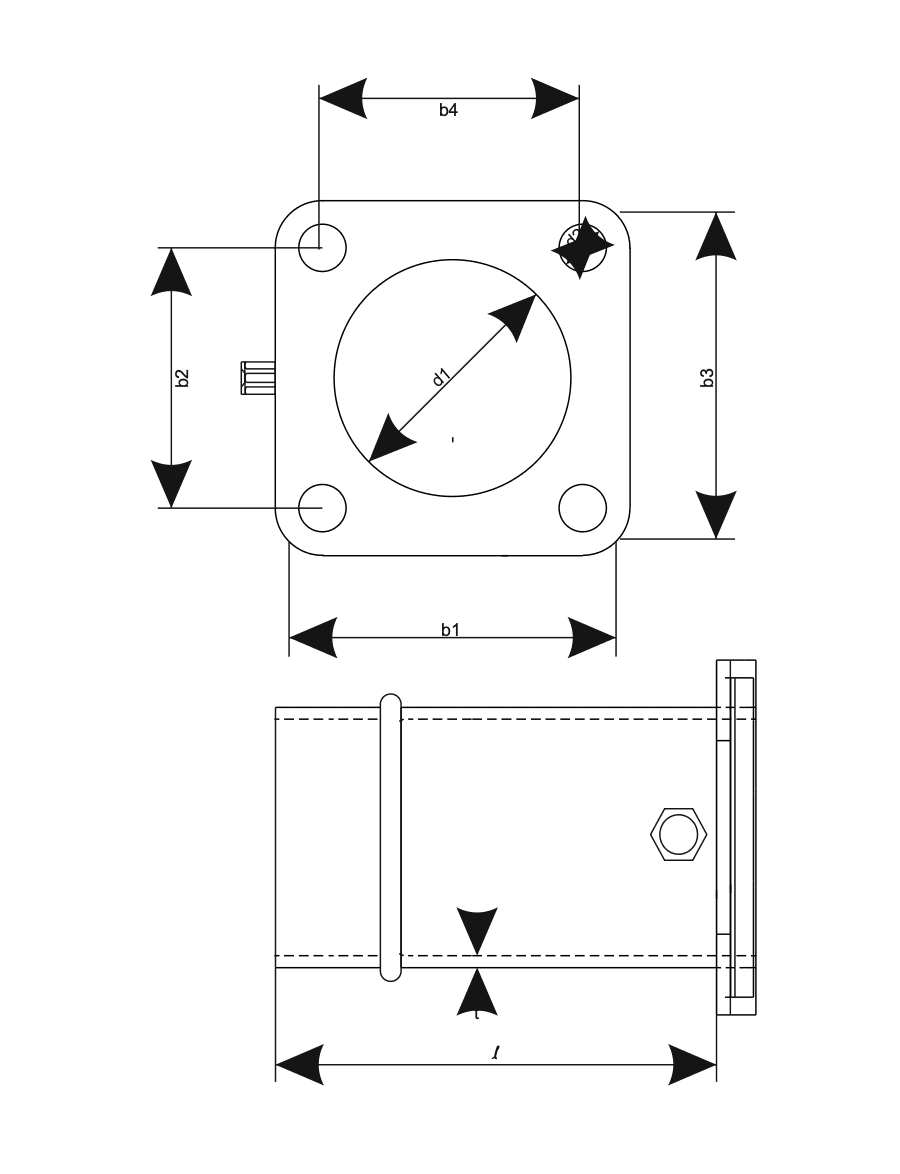

Technical Drawing
Cable Glands
CW (4Part) Industrial Brass Cable Gland Kit — For Armoured Cable
CW type brass indoor/outdoor cable gland for use with all types of SWA cable providing…
Cable Glands

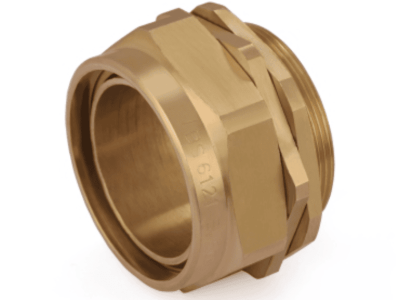

BW (3Part) Industrial Brass Cable Gland Kit — For Armoured Cable
