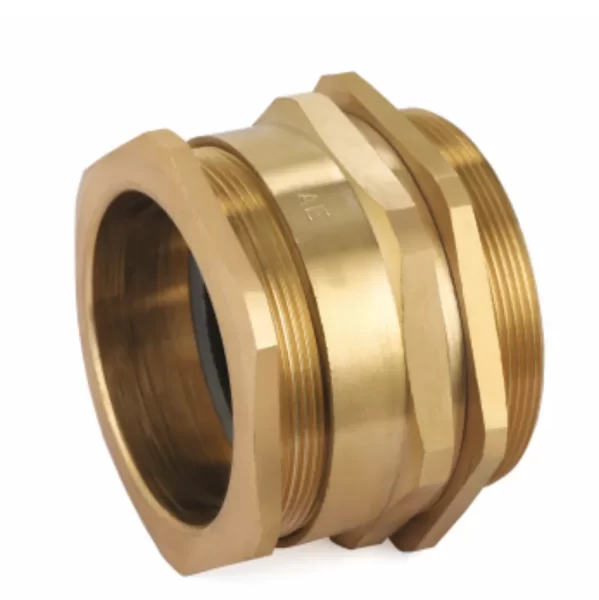

A2 Industrial Brass Cable Gland Kit — For Unarmoured Cable
A2 type brass indoor/outdoor cable gland for use with all types of unarmoured cables, providing seal on outer sheath. Design specification BS 6121-1-1989, IEC 62444-2010.
Design Specification: BS 6121-1-1989, IEC 62444-2010
Material: Brass / Aluminium
Application: Unarmoured cables
Cable gland sizes: 20s/16 to 100
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Key Features
A2 type brass indoor/outdoor cable gland
For use with all types of unarmoured cables
Provides seal on cable outer sheath
Material: Brass / Aluminium
Design specification BS 6121-1-1989, IEC 62444-2010
Technical Specifications
Design Specification: BS 6121-1-1989, IEC 62444-2010
Material: Brass / Aluminium
Application: Unarmoured cables
Cable gland sizes: 20s/16 to 100
Applications
Unarmoured cable indoor and outdoor terminations
Industrial panel and enclosure cable entries
Control panels, switchgear and junction boxes
General industrial wiring
Specifications
| Cable Gland Size | Overall Cable Dia. A min (mm) | Overall Cable Dia. A max (mm) | Standard Thread Size B Metric | Thread Length C (mm) | Across Flat A/F (mm) | Across Corner A/C (mm) | Protrusion Length D (mm) | P/N |
|---|---|---|---|---|---|---|---|---|
| 20s/16 | 5.50 | 8.50 | 20.00 | 10.00 | 22.00 | 24.25 | 22.00 | AA2-16 |
| 20s | 8.50 | 11.50 | 20.00 | 10.00 | 22.00 | 24.25 | 24.00 | AA2-20S |
| 20 | 11.50 | 14.00 | 20.00 | 10.00 | 24.00 | 26.00 | 24.00 | AA2-20 |
| 25s | 13.50 | 17.50 | 25.00 | 10.00 | 27.00 | 30.00 | 25.00 | AA2-25S |
| 25 | 16.00 | 20.00 | 25.00 | 13.00 | 30.00 | 33.00 | 26.00 | AA2-25 |
| 32s | 19.00 | 23.00 | 32.00 | 13.00 | 36.00 | 40.00 | 28.00 | AA2-32S |
| 32 | 22.00 | 26.00 | 32.00 | 13.00 | 36.00 | 40.00 | 28.00 | AA2-32 |
| 40s | 24.00 | 29.00 | 40.00 | 14.00 | 44.00 | 49.00 | 31.00 | AA2-40S |
| 40 | 28.00 | 33.00 | 40.00 | 15.00 | 46.00 | 50.00 | 31.00 | AA2-40 |
| 50s | 35.00 | 40.00 | 50.00 | 15.00 | 55.00 | 61.00 | 33.00 | AA2-50S |
| 50 | 39.00 | 44.00 | 50.00 | 15.00 | 58.00 | 64.00 | 33.00 | AA2-50 |
| 63s | 45.00 | 50.00 | 63.00 | 15.00 | 67.00 | 74.00 | 35.00 | AA2-63S |
| 63 | 50.00 | 55.00 | 63.00 | 15.00 | 69.00 | 76.00 | 35.00 | AA2-63 |
| 75s | 56.00 | 62.00 | 75.00 | 15.00 | 78.00 | 87.00 | 35.00 | AA2-75S |
| 75 | 59.00 | 65.00 | 75.00 | 15.00 | 81.00 | 90.00 | 35.00 | AA2-75 |
| 90s | 69.00 | 75.00 | 90.00 | 20.00 | 100.00 | 112.00 | 50.00 | AA2-90S |
| 90 | 72.00 | 78.00 | 90.00 | 20.00 | 100.00 | 112.00 | 50.00 | AA2-90 |
| 100 | 83.00 | 89.00 | 100.00 | 20.00 | 112.00 | 125.00 | 50.00 | AA2-100 |
Notes
All dimensions are in mm. Standard tolerance applies.
Design specification: BS 6121-1-1989, IEC 62444-2010.
For unarmoured cables u2014 seals on cable outer sheath.

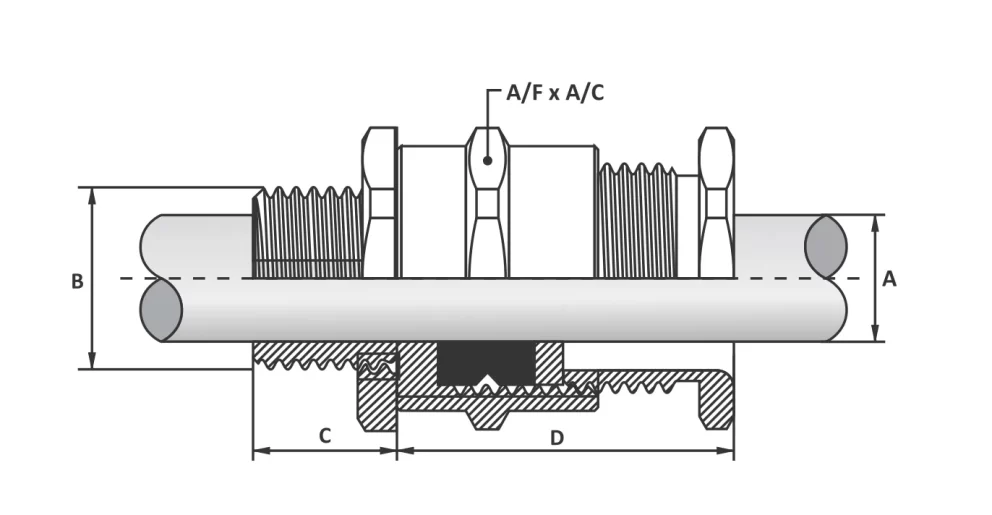

Technical Drawing
