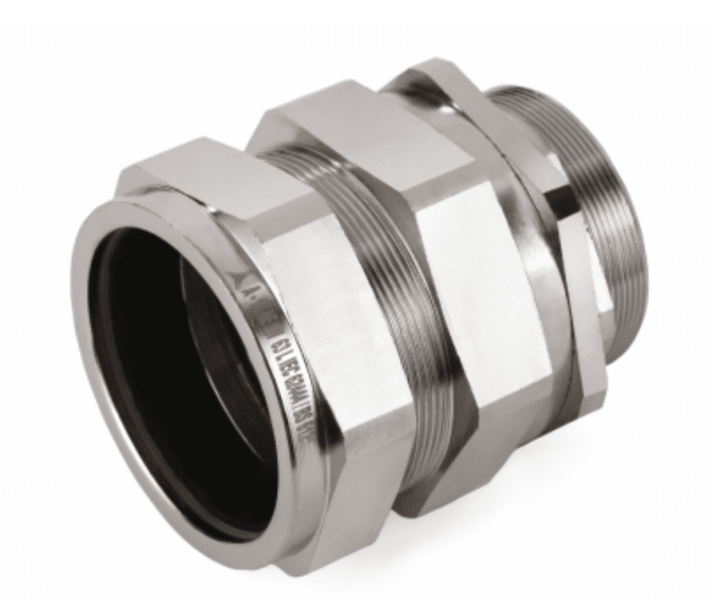

E1W Industrial Brass Cable Gland Kit — For Armoured Cable
E1W type brass indoor/outdoor cable gland for use with all types of SWA cable providing mechanical cable retention and electrical continuity via armour wire termination, as well as environmental seal…
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Key Features
Technical Specifications
Applications
Specifications
| Cable Gland Size | Cable Bedding Dia. A min (mm) | Cable Bedding Dia. A max (mm) | Overall Cable Dia. B min (mm) | Overall Cable Dia. B max (mm) | Standard Thread Size C Metric | Thread Length D (mm) | Armour Range Min (mm) | Armour Range Max (mm) | Across Flat A/F (mm) | Across Corner A/C (mm) | Protrusion Length E (mm) | P/N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20s/16 | 3.10 | 8.60 | 6.60 | 13.50 | 20.00 | 10.00 | 0.90 | 0.90 | 22.00 | 24.25 | 50.00 | AE1W-16 |
| 20s | 6.10 | 11.70 | 10.50 | 16.00 | 20.00 | 10.00 | 0.90 | 1.25 | 22.00 | 24.25 | 50.00 | AE1W-20S |
| 20 | 6.50 | 13.90 | 13.80 | 20.00 | 20.00 | 10.00 | 0.90 | 1.25 | 26.00 | 28.75 | 50.00 | AE1W-20 |
| 25s | 11.30 | 19.90 | 16.50 | 24.00 | 25.00 | 10.00 | 1.25 | 1.60 | 30.00 | 33.00 | 57.50 | AE1W-25S |
| 25 | 11.30 | 19.90 | 22.00 | 27.00 | 25.00 | 10.00 | 1.25 | 1.60 | 34.00 | 38.00 | 58.50 | AE1W-25 |
| 32 | 17.00 | 26.20 | 26.00 | 34.00 | 32.00 | 10.00 | 1.60 | 2.00 | 40.50 | 45.00 | 61.00 | AE1W-32 |
| 40s | 23.60 | 32.10 | 30.50 | 38.50 | 40.00 | 15.00 | 1.60 | 2.00 | 44.50 | 50.00 | 61.00 | AE1W-40S |
| 40 | 23.60 | 32.10 | 32.50 | 41.00 | 40.00 | 15.00 | 1.60 | 2.00 | 47.50 | 52.00 | 64.20 | AE1W-40 |
| 50s | 31.50 | 38.20 | 37.70 | 47.00 | 50.00 | 15.00 | 2.00 | 2.50 | 56.50 | 61.50 | 66.00 | AE1W-50S |
| 50 | 35.80 | 44.00 | 43.00 | 53.50 | 50.00 | 15.00 | 2.00 | 2.50 | 61.00 | 65.00 | 67.50 | AE1W-50 |
| 63s | 41.70 | 50.00 | 48.50 | 59.00 | 63.00 | 15.00 | 2.50 | 2.50 | 67.50 | 72.00 | 70.00 | AE1W-63S |
| 63 | 47.50 | 56.00 | 54.50 | 65.00 | 63.00 | 15.00 | 2.50 | 2.50 | 75.00 | 80.00 | 73.20 | AE1W-63 |
| 75s | 55.00 | 62.00 | 62.75 | 72.00 | 75.00 | 15.00 | 2.50 | 2.50 | 85.00 | 90.00 | 73.70 | AE1W-75S |
| 75 | 62.00 | 68.00 | 68.50 | 78.00 | 75.00 | 15.00 | 2.50 | 2.50 | 90.00 | 95.00 | 80.70 | AE1W-75 |
| 90 | 67.00 | 79.00 | 75.00 | 86.00 | 90.00 | 20.00 | 3.15 | 3.15 | 100.00 | 110.00 | 100.50 | AE1W-90 |
Notes
All dimensions are in mm. Standard tolerance applies.
Design specification: BS 6121-1-1989, IEC 62444-2010.
Armour clamping system with armour ring.
Seals on both cable inner and outer sheath.

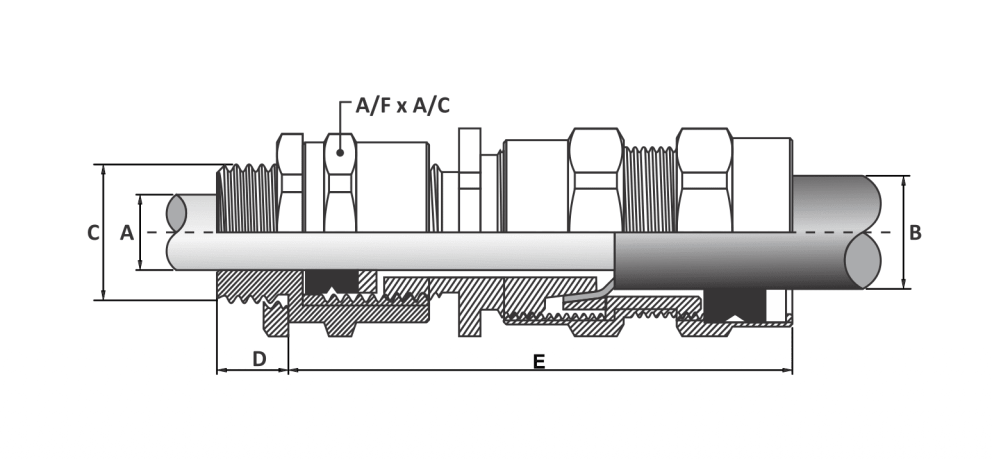

Technical Drawing
