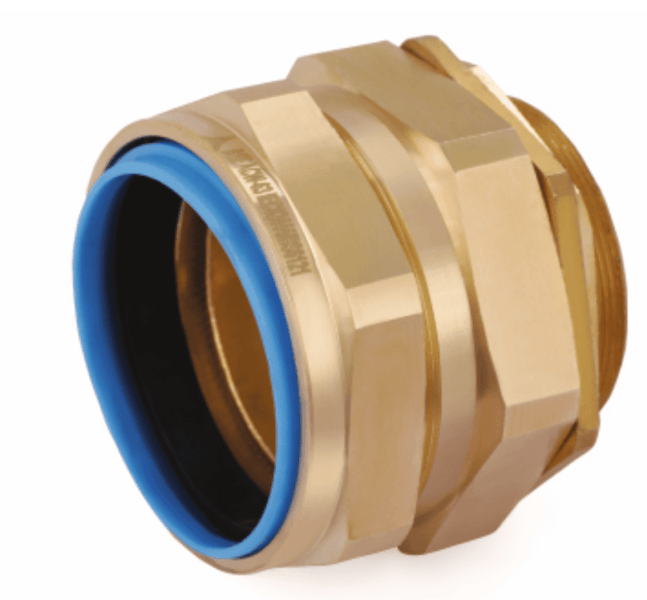

CW (3Part) Industrial Brass Cable Gland Kit — For Armoured Cable
CW type brass indoor/outdoor cable gland for use with all types of SWA cable providing mechanical cable retention and electrical continuity via armour wire termination, as well as environmental seal…
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Key Features
Technical Specifications
Applications
Specifications Table
| Cable Gland Size | Max. Bedding Dia. A (mm) | Overall Cable Dia. B min (mm) | Overall Cable Dia. B max (mm) | Standard Thread Size C Metric | Thread Length D (mm) | Armour Range Min (mm) | Armour Range Max (mm) | Across Flat A/F (mm) | Across Corner A/C (mm) | Protrusion Length E (mm) | P/N |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20s/16 | 9.00 | 6.60 | 13.50 | 20.00 | 10.00 | 0.90 | 0.90 | 22.00 | 24.25 | 35.00 | ACW(3)-16 |
| 20s | 12.50 | 10.50 | 16.00 | 20.00 | 10.00 | 0.90 | 1.25 | 22.00 | 24.25 | 35.00 | ACW(3)-20S |
| 20 | 15.00 | 14.00 | 20.00 | 20.00 | 10.00 | 0.90 | 1.25 | 26.00 | 28.75 | 34.25 | ACW(3)-20 |
| 25s | 18.50 | 16.50 | 24.00 | 25.00 | 10.00 | 1.25 | 1.60 | 30.00 | 33.00 | 37.50 | ACW(3)-25S |
| 25 | 20.50 | 22.00 | 27.00 | 25.00 | 10.00 | 1.25 | 1.60 | 32.00 | 35.00 | 38.50 | ACW(3)-25 |
| 32 | 27.25 | 26.00 | 34.00 | 32.00 | 10.00 | 1.60 | 2.00 | 40.50 | 45.00 | 39.50 | ACW(3)-32 |
| 40 | 34.50 | 32.50 | 41.00 | 40.00 | 15.00 | 1.60 | 2.00 | 47.50 | 52.00 | 45.50 | ACW(3)-40 |
| 50s | 41.00 | 37.70 | 47.00 | 50.00 | 15.00 | 2.00 | 2.50 | 56.50 | 61.50 | 49.00 | ACW(3)-50S |
| 50 | 44.50 | 43.00 | 53.50 | 50.00 | 15.00 | 2.00 | 2.50 | 61.00 | 65.00 | 49.00 | ACW(3)-50 |
| 63s | 51.50 | 48.50 | 59.00 | 63.00 | 15.00 | 2.50 | 2.50 | 67.50 | 72.00 | 54.75 | ACW(3)-63S |
| 63 | 56.75 | 54.50 | 65.00 | 63.00 | 15.00 | 2.50 | 2.50 | 75.00 | 80.00 | 53.50 | ACW(3)-63 |
| 75s | 64.00 | 62.75 | 72.00 | 75.00 | 15.00 | 2.50 | 2.50 | 85.00 | 90.00 | 58.25 | ACW(3)-75S |
| 75 | 69.00 | 68.50 | 78.00 | 75.00 | 15.00 | 2.50 | 2.50 | 90.00 | 95.00 | 59.75 | ACW(3)-75 |
| 90 | 80.00 | 75.00 | 90.00 | 90.00 | 20.00 | 3.15 | 3.15 | 100.00 | 110.00 | 71.75 | ACW(3)-90 |
Notes
All dimensions are in mm. Standard tolerance applies.
Design specification: BS 6121-1-1989, IEC 62444-2010.
Three part gland u2014 armour clamping system without armour ring.

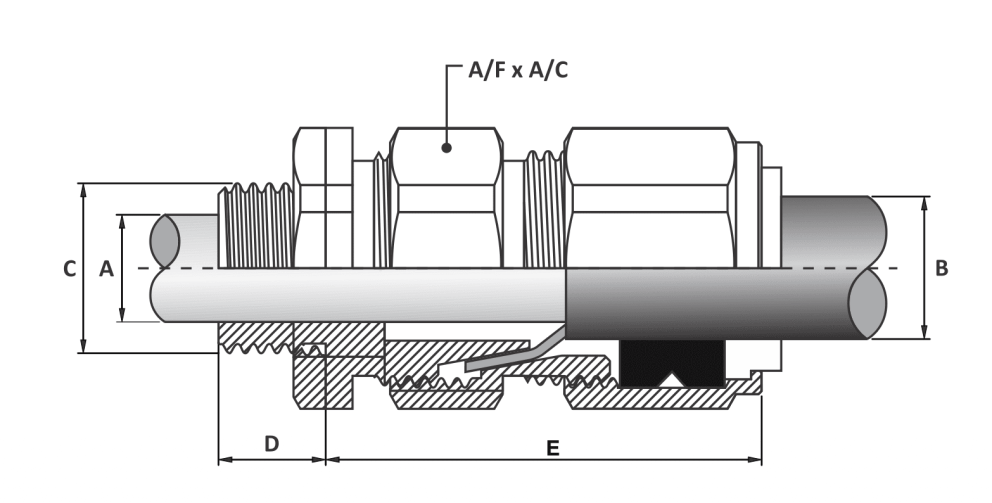

Technical Drawing
