T Connector for Conductor

Name: T Connector for Conductor
Brand: A-1 Electricals
Availability: InStock

T connector for connecting aluminium conductors in substation busbar applications.

Material: Al Alloy

Finish: Natural or Electro Tinned

Request Quote Technical Support

ISO 9001:2015

Quality System

CE / RoHS

Compliant

IEC Tested

Certified

Technical Specifications

Material: Al Alloy

Finish: Natural or Electro Tinned

Specifications Table

ΦA Min. (mm)	ΦA Max. (mm)	ΦB Min. (mm)	ΦB Max. (mm)	C (mm)	D (mm)	E (mm)
12	15	12	15	180	92	82
16	19	16	19	180	92	82
20	23	20	23	180	92	82
24	26	24	26	180	92	82
27	30	27	30	180	92	82
20	23	31	32	198	107	85
20	23	33	35	198	107	85
20	23	36	39	198	107	85
24	26	31	32	198	107	85
24	26	33	35	198	107	85
24	26	36	39	198	107	85
27	30	31	32	198	107	85
27	30	33	35	198	107	85
27	30	36	39	198	107	85
31	32	20	23	198	107	85
33	35	20	23	198	107	85
36	39	20	23	198	107	85
31	32	24	26	198	107	85
33	35	24	26	198	107	85
36	39	24	26	198	107	85
31	32	27	30	198	107	85
33	35	27	30	198	107	85
36	39	27	30	198	107	85
31	32	31	32	198	107	85
33	35	33	35	198	107	85
36	39	36	39	198	107	85
31	32	36	39	198	107	85
33	35	36	39	198	107	85
36	39	36	39	198	107	85
31	32	40	43	198	107	85
33	35	40	43	198	107	85
36	39	40	43	198	107	85
40	43	40	43	198	107	85

Notes

Where ΦA and ΦB ranges match (12u201315 through 27u201330): C = 180 mm, D = 92 mm, E = 82 mm. All other combinations: C = 198 mm, D = 107 mm, E = 85 mm. The datasheet lists two identical rows for ΦA 36u201339 / ΦB 36u201339; both are shown as in the source.

Technical Drawings

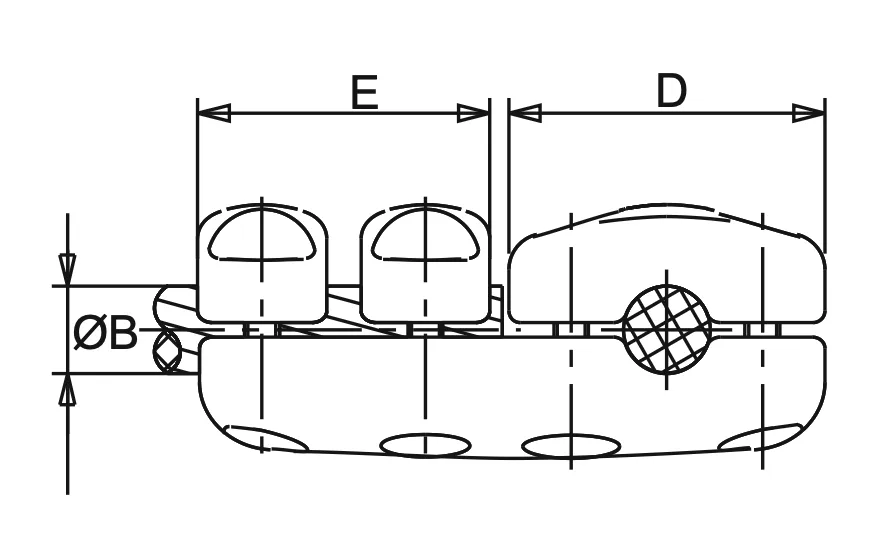

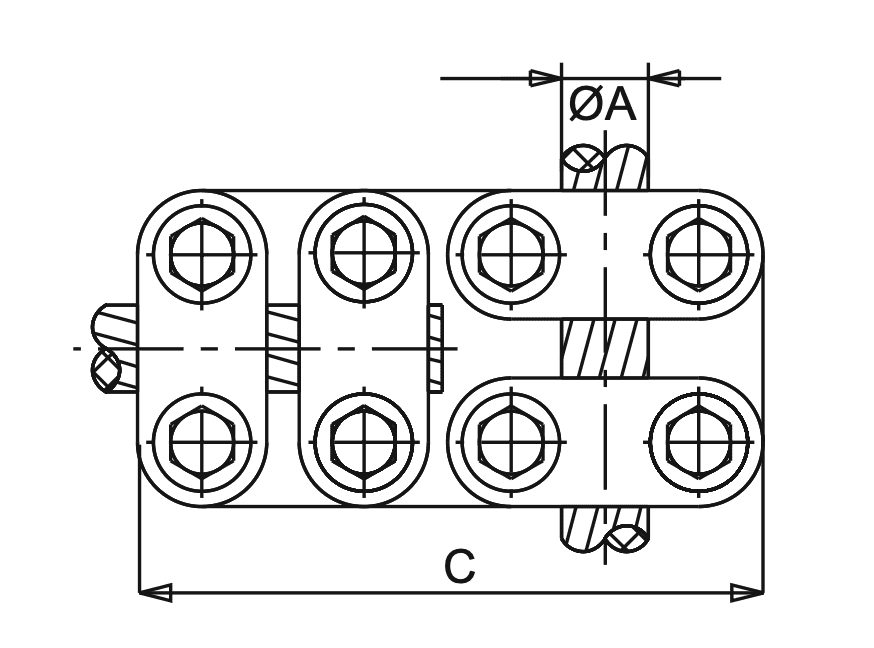

T Connector for Conductor Specifications drawing
