Parallel Groove Clamp for Parallel and Cross Conductor

Name: Parallel Groove Clamp for Parallel and Cross Conductor
Brand: A-1 Electricals
Availability: InStock

Parallel groove clamp designed for both parallel and cross conductor clamping with robust aluminium alloy construction.

Material: Al Alloy

Finish: Natural or Electro Tinned

ISO 9001:2015

Quality System

CE / RoHS

Compliant

IEC Tested

Certified

Technical Specifications

Material: Al Alloy

Finish: Natural or Electro Tinned

Parallel Conductor

ΦA Min. (mm)	ΦA Max. (mm)	ΦB Min. (mm)	ΦB Max. (mm)	C (mm)	D (mm)
12	15	12	15	92	92
16	19	16	19	92	92
20	23	20	23	92	92
24	26	24	26	92	92
27	30	27	30	92	92
31	32	31	32	107	107
33	35	33	35	107	107
36	39	36	39	107	107
40	43	40	43	107	107

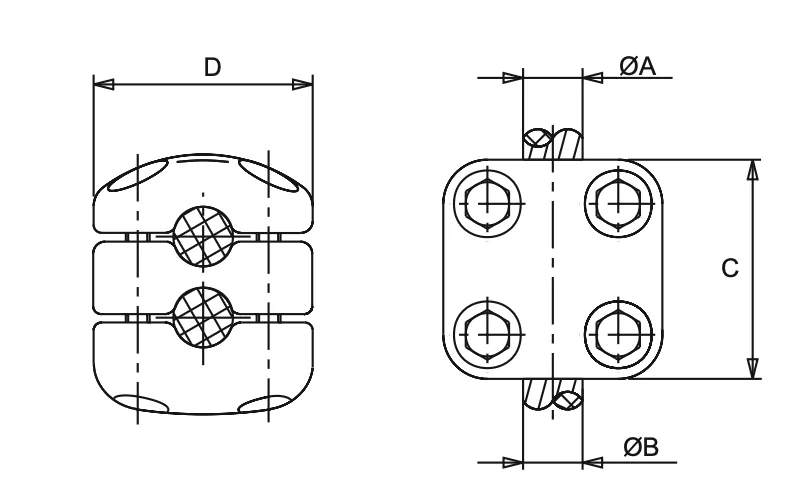

Technical Drawing

Cross Conductor

ΦA Min. (mm)	ΦA Max. (mm)	ΦB Min. (mm)	ΦB Max. (mm)	C (mm)	D (mm)
12	15	12	15	92	92
16	19	16	19	92	92
20	23	20	23	92	92
24	26	24	26	92	92
27	30	27	30	92	92
31	32	31	32	107	107
33	35	33	35	107	107
36	39	36	39	107	107
40	43	40	43	107	107

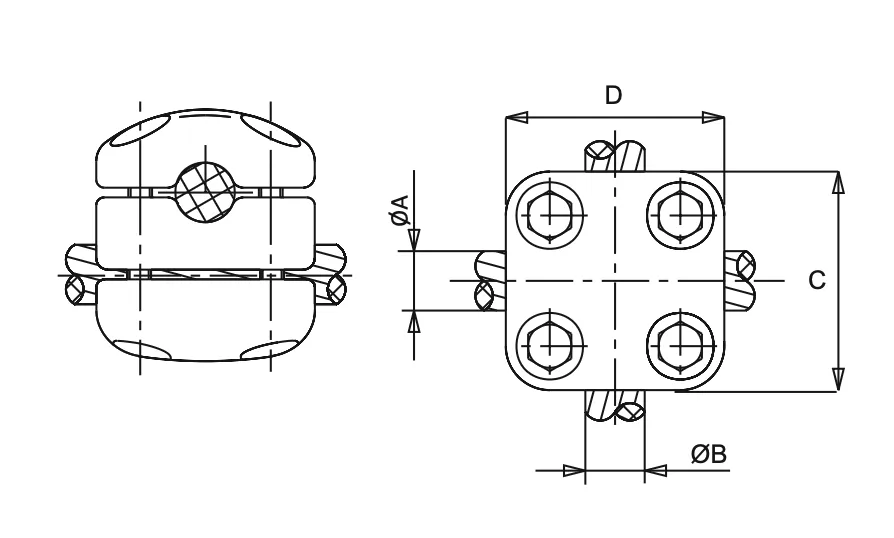

Technical Drawing

ΦA Min. (mm)	ΦA Max. (mm)	ΦB Min. (mm)	ΦB Max. (mm)	C (mm)	D (mm)
12	15	12	15	92	92
16	19	16	19	92	92
20	23	20	23	92	92
24	26	24	26	92	92
27	30	27	30	92	92
31	32	31	32	107	107
33	35	33	35	107	107
36	39	36	39	107	107
40	43	40	43	107	107

ΦA Min. (mm)	ΦA Max. (mm)	ΦB Min. (mm)	ΦB Max. (mm)	C (mm)	D (mm)
12	15	12	15	92	92
16	19	16	19	92	92
20	23	20	23	92	92
24	26	24	26	92	92
27	30	27	30	92	92
31	32	31	32	107	107
33	35	33	35	107	107
36	39	36	39	107	107
40	43	40	43	107	107

ΦA Min. (mm)	ΦA Max. (mm)	ΦB Min. (mm)	ΦB Max. (mm)	C (mm)	D (mm)
12	15	12	15	92	92
16	19	16	19	92	92
20	23	20	23	92	92
24	26	24	26	92	92
27	30	27	30	92	92
31	32	31	32	107	107
33	35	33	35	107	107
36	39	36	39	107	107
40	43	40	43	107	107

ΦA Min. (mm)	ΦA Max. (mm)	ΦB Min. (mm)	ΦB Max. (mm)	C (mm)	D (mm)
12	15	12	15	92	92
16	19	16	19	92	92
20	23	20	23	92	92
24	26	24	26	92	92
27	30	27	30	92	92
31	32	31	32	107	107
33	35	33	35	107	107
36	39	36	39	107	107
40	43	40	43	107	107
