EHV Substation Connectors
Spacer for Al Conductor
Spacer for aluminium conductor to maintain conductor spacing and reduce vibration in line and substation applications.
Material: Al Alloy
Finish: Natural or Electro Tinned
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Technical Specifications
Material: Al Alloy
Finish: Natural or Electro Tinned
Specifications
| ΦA (mm) | B (mm) | C* (code) |
|---|---|---|
| 20-23 | 42 | Refer to notes below |
| 24-26 | 42 | Refer to notes below |
| 27-30 | 42 | Refer to notes below |
| 31-32 | 44 | Refer to notes below |
| 33-35 | 44 | Refer to notes below |
| 36-39 | 44 | Refer to notes below |
| 40-43 | 44 | Refer to notes below |
Notes
C* reference values:
1 = 100 mm
2 = 200 mm
15 = 150 mm
3 = 300 mm
33 = 330 mm

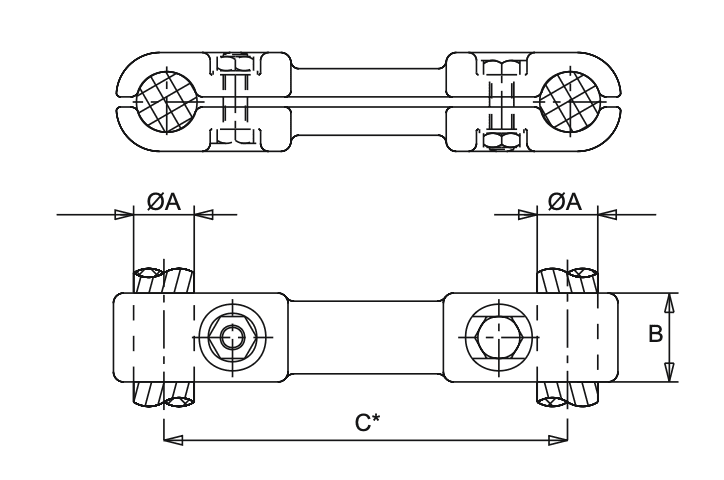

Technical Drawing
