EHV Substation Connectors
T Connector for Al Conductor
T connector for connecting aluminium conductors in substation busbar applications.
Material: Aluminium alloy
Finish: Natural or Electro Plated
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Technical Specifications
Material: Aluminium alloy
Finish: Natural or Electro Plated
Specifications
| Amm Min. (mm²) | Amm Max. (mm²) | Bmm Min. (mm²) | Bmm Max. (mm²) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|---|
| 110 | 145 | 110 | 145 | 135 | 85 | 85 |
| 110 | 145 | 160 | 180 | 135 | 85 | 85 |
| 110 | 145 | 190 | 280 | 142 | 98 | 85 |
| 110 | 145 | 290 | 380 | 152 | 98 | 85 |
| 110 | 145 | 450 | 545 | 163 | 107 | 85 |
| 110 | 145 | 590 | 635 | 163 | 107 | 85 |
| 160 | 180 | 110 | 145 | 135 | 85 | 85 |
| 160 | 180 | 160 | 180 | 135 | 85 | 85 |
| 160 | 180 | 190 | 280 | 142 | 98 | 85 |
| 160 | 180 | 290 | 380 | 152 | 98 | 85 |
| 160 | 180 | 450 | 545 | 163 | 107 | 85 |
| 160 | 180 | 590 | 635 | 163 | 107 | 85 |
| 190 | 280 | 160 | 180 | 148 | 85 | 98 |
| 190 | 280 | 190 | 280 | 148 | 98 | 98 |
| 190 | 280 | 290 | 380 | 160 | 98 | 98 |
| 190 | 280 | 450 | 545 | 172 | 107 | 98 |
| 190 | 280 | 590 | 635 | 172 | 107 | 98 |
| 290 | 380 | 190 | 280 | 174 | 98 | 98 |
| 290 | 380 | 290 | 380 | 174 | 98 | 98 |
| 290 | 380 | 450 | 545 | 183 | 107 | 98 |
| 290 | 380 | 590 | 635 | 183 | 107 | 98 |
| 450 | 545 | 190 | 280 | 187 | 98 | 107 |
| 450 | 545 | 290 | 380 | 187 | 98 | 107 |
| 450 | 545 | 450 | 545 | 196 | 107 | 107 |
| 450 | 545 | 590 | 635 | 196 | 107 | 107 |
| 590 | 635 | 450 | 545 | 196 | 107 | 107 |
| 590 | 635 | 590 | 635 | 196 | 107 | 107 |

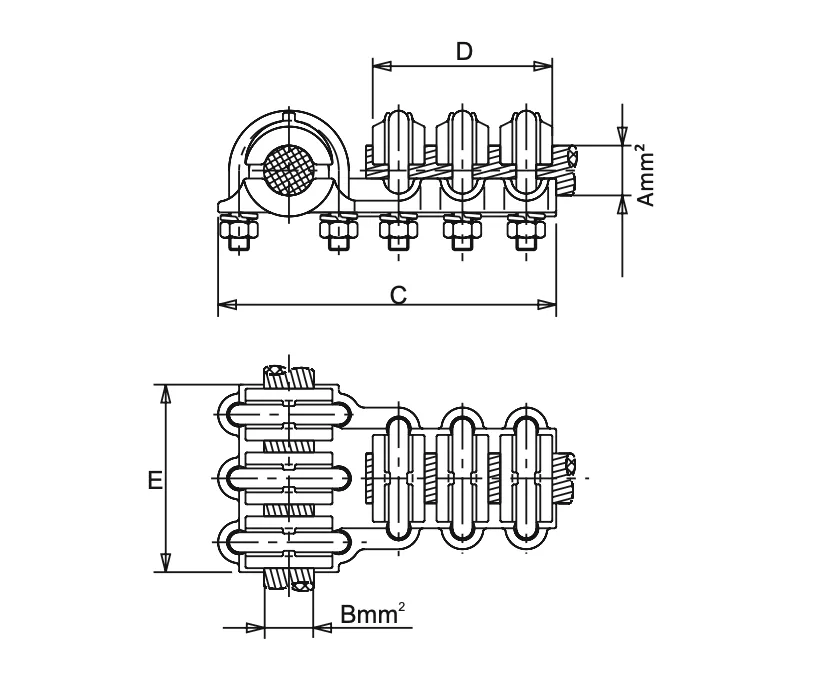

Technical Drawing
