Straight Connector Al Tube to Al Stud

Name: Straight Connector Al Tube to Al Stud
Brand: A-1 Electricals
Availability: InStock

Straight connector for aluminium tube to aluminium stud connection in substation applications.

Material: Al Alloy

Finish: Natural or Electro Tinned

ISO 9001:2015

Quality System

CE / RoHS

Compliant

IEC Tested

Certified

Technical Specifications

Material: Al Alloy

Finish: Natural or Electro Tinned

Specifications

ΦA (mm)	ΦB (mm)	C (mm)	D (mm)	E (mm)
30	30	180	82	92
40	30	202	85	107
40	50	200	85	100
40	60	200	85	100
50	30	195	100	82
50	40	200	100	85
50	60	205	100	100
60	30	195	100	82
60	40	200	100	85
60	50	205	100	100
80	30	194	100	85
80	40	200	100	90
80	50	210	100	100
80	60	210	100	100
100	30	205	100	90
100	40	205	100	90
100	50	210	100	100
100	60	210	100	100
120	30	210	110	90
120	40	210	110	90
120	50	220	110	100
120	60	220	110	100
150	30	230	120	90
150	40	230	120	90
150	50	245	120	100
150	60	245	120	100

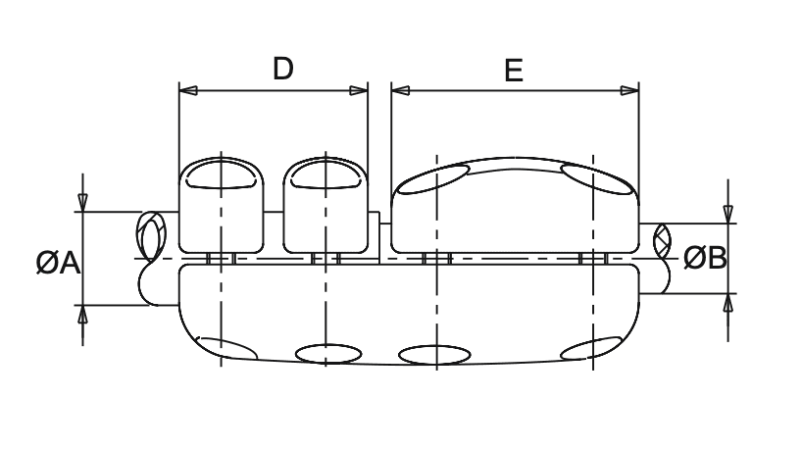

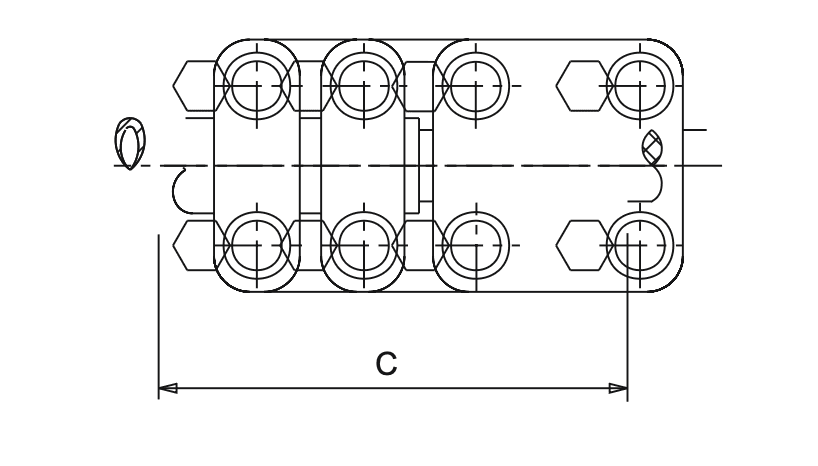

Technical Drawings
