Straight Connector Al Conductor to Flatbar

IEC ANSI IS

EHV Substation Connectors

Straight Connector Al Conductor to Flatbar

Name: Straight Connector Al Conductor to Flatbar
Brand: A-1 Electricals
Availability: InStock

Straight connector for aluminium conductor to flatbar termination in substation applications.

Material: Al Alloy

Finish: Natural or Electro Tinned

Request Quote Technical Support

ISO 9001:2015

Quality System

CE / RoHS

Compliant

IEC Tested

Certified

Technical Specifications

Material: Al Alloy

Finish: Natural or Electro Tinned

Type 1

ΦA Min. (mm)	ΦA Max. (mm)	B (mm)	C (mm)	D (mm)	E (mm)
27	30	80	80	20	120
27	30	100	100	20	120
27	30	125	125	20	120
27	30	200	100	20	120
31	32	80	80	20	120
31	32	100	100	20	120
31	32	125	125	20	120
31	32	200	100	20	120
33	35	80	80	20	120
33	35	100	100	20	120
33	35	125	125	20	120
33	35	200	100	20	120
36	39	80	80	20	120
36	39	100	100	20	120
36	39	125	125	20	120
36	39	200	100	20	120
40	43	80	80	20	120
40	43	100	100	20	120
40	43	125	125	20	120
40	43	200	100	20	120

Technical Drawing

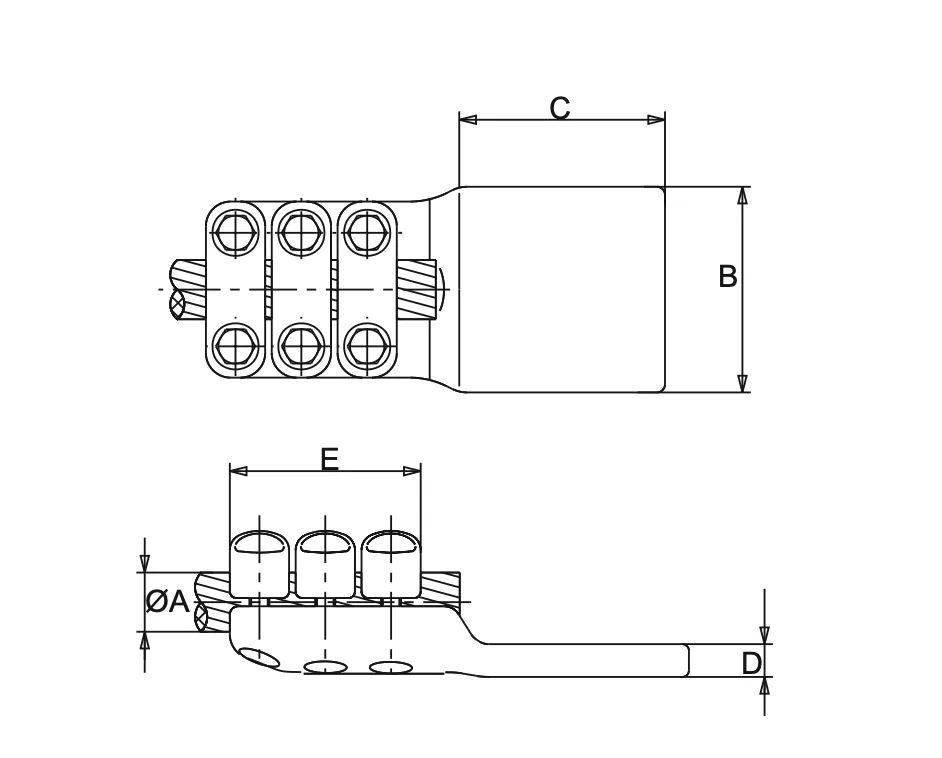

Straight Connector Al Conductor to Flatbar Type 1 drawing

Type 2

ΦA Min. (mm)	ΦA Max. (mm)	B (mm)	C (mm)	D (mm)	E (mm)
12	15	50	50	20	82
12	15	50	80	20	82
12	15	60	60	20	82
12	15	60	100	20	82
12	15	80	80	20	82
12	15	100	100	20	82
12	15	125	125	20	82
16	19	50	50	20	82
16	19	50	80	20	82
16	19	60	60	20	82
16	19	60	100	20	82
16	19	80	80	20	82
16	19	100	100	20	82
16	19	125	125	20	82
20	23	50	50	20	82
20	23	50	80	20	82
20	23	60	60	20	82
20	23	60	100	20	82
20	23	80	80	20	82
20	23	100	100	20	82
20	23	125	125	20	82
24	26	50	50	20	82
24	26	50	80	20	82
24	26	60	60	20	82
24	26	60	100	20	82
24	26	80	80	20	82
24	26	100	100	20	82
24	26	125	125	20	82
27	30	50	50	20	82
27	30	50	80	20	82
27	30	60	60	20	82
27	30	60	100	20	82
27	30	80	80	20	82
27	30	100	100	20	82
27	30	125	125	20	82
31	32	50	50	20	85
31	32	50	80	20	85
31	32	60	60	20	85
31	32	60	100	20	85
31	32	80	80	20	85
31	32	100	100	20	85
31	32	125	125	20	85
33	35	50	50	20	85
33	35	50	80	20	85
33	35	60	60	20	85
33	35	60	100	20	85
33	35	80	80	20	85
33	35	100	100	20	85
33	35	125	125	20	85
36	39	50	50	20	85
36	39	50	80	20	85
36	39	60	60	20	85
36	39	60	100	20	85
36	39	80	80	20	85
36	39	100	100	20	85
36	39	125	125	20	85
40	43	50	50	20	85
40	43	50	80	20	85
40	43	60	60	20	85
40	43	60	100	20	85
40	43	80	80	20	85
40	43	100	100	20	85
40	43	125	125	20	85

Notes

Type 2: single combined table from the datasheet (two side-by-side tables merged). D = 20 mm for all rows. E = 82 mm for ΦA 12u201315 through 27u201330; E = 85 mm for ΦA 31u201332 through 40u201343.

Technical Drawings

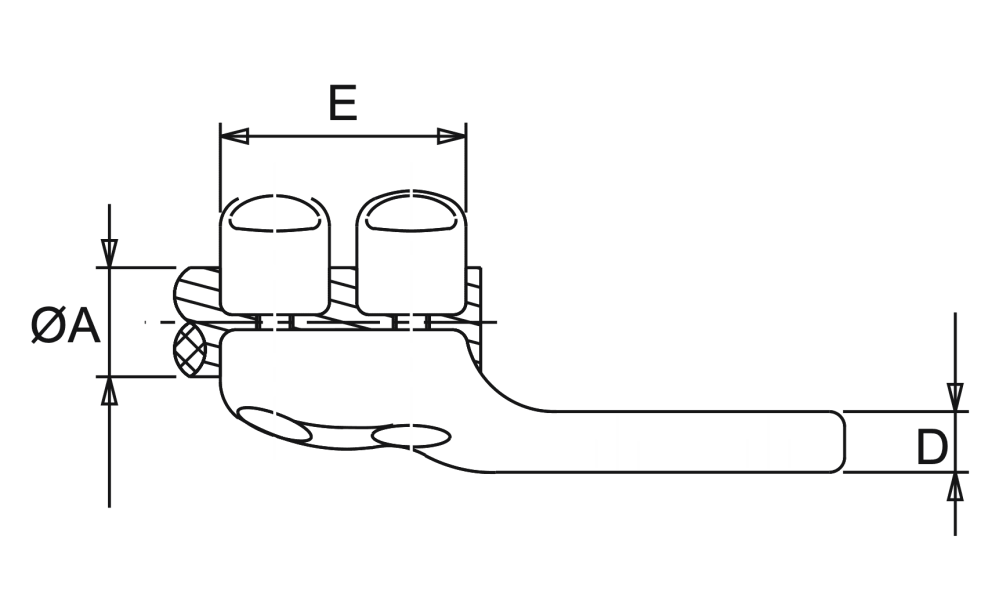

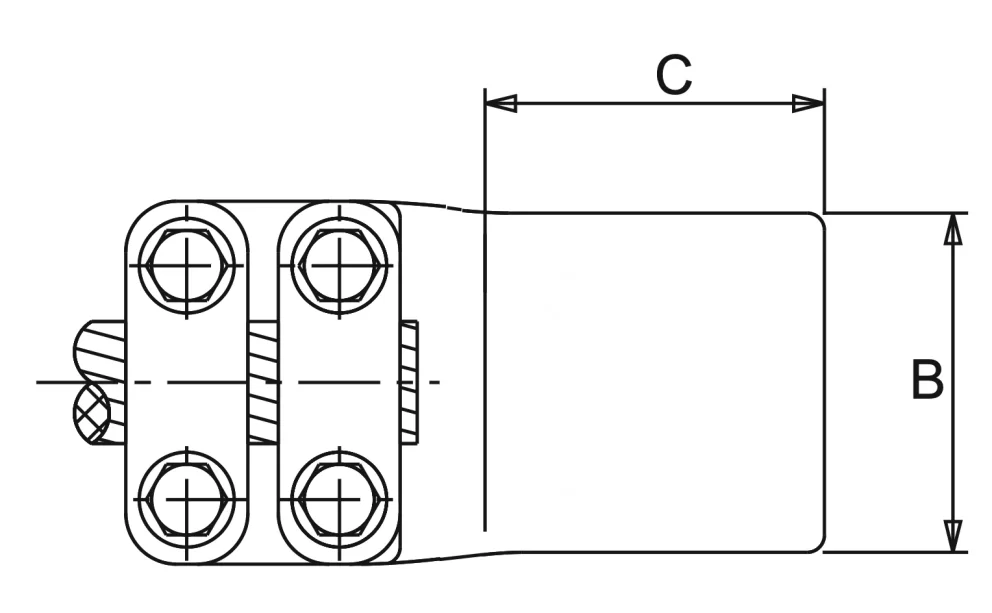

Straight Connector Al Conductor to Flatbar Type 2 drawing

Type 3 (Al tube to flatbar)

ΦA (mm)	B (mm)	C (mm)	D (mm)	E (mm)
30	50	50	20	82
30	50	80	20	82
30	60	60	20	82
30	80	80	20	82
30	100	100	20	82
30	125	125	15	82
30	200	100	15	82
40	50	50	20	85
40	50	80	20	85
40	60	60	20	85
40	80	80	20	85
40	100	100	20	85
40	125	125	15	85
40	200	100	15	85
50	60	60	20	100
50	80	80	20	100
50	100	100	20	100
50	125	125	20	100
60	60	60	20	100
60	80	80	20	100
60	100	100	20	100
60	125	125	20	100
80	80	80	20	100
80	100	100	20	100
80	125	125	20	100
100	80	80	20	100
100	100	100	20	100
100	125	125	20	100

Notes

Type 3 (Straight Connector Al Tube to Flatbar per datasheet): ΦA is tube OD. E = 82 mm at ΦA 30; E = 85 mm at ΦA 40; E = 100 mm at ΦA 50u2013100. D is 15 mm where B/C are 125u00d7125 or 200u00d7100 at ΦA 30u201340; otherwise D = 20 mm.

Technical Drawings

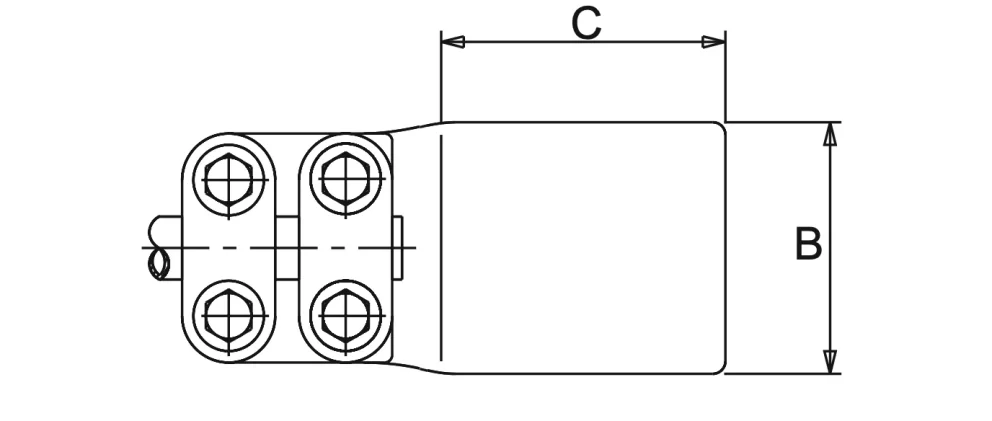

Straight Connector Al Conductor to Flatbar Type 3 drawing
