EHV Substation Connectors
Straight Connector or TAP for Al Conductor to Al Flatbar
Straight connector for connecting aluminium conductor to aluminium flatbar. Designed for substation busbar connections.
Material: Aluminium alloy
Finish: Natural or Electro Plated
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Technical Specifications
Material: Aluminium alloy
Finish: Natural or Electro Plated
Specifications
| Amm Min. (mm²) | Amm Max. (mm²) | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|
| 50 | 630 | 60 | 60 | 20 | 140 |
| 50 | 630 | 80 | 80 | 20 | 160 |
| 50 | 630 | 100 | 100 | 20 | 180 |

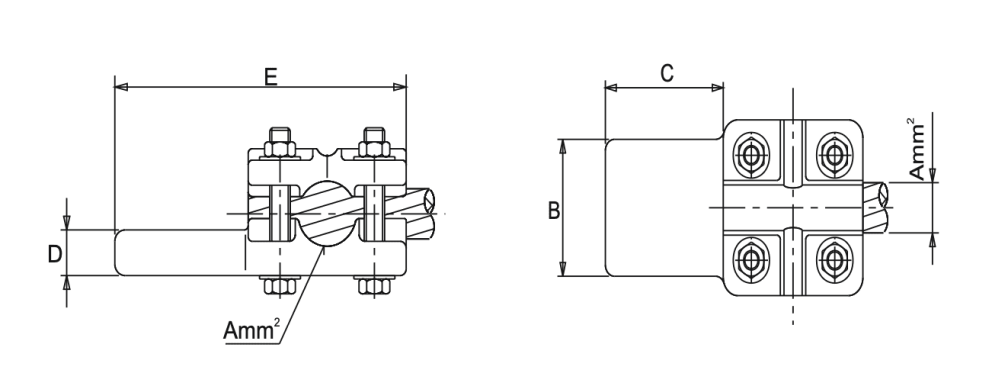

Technical Drawing
