Compression Cable Lugs & Connectors

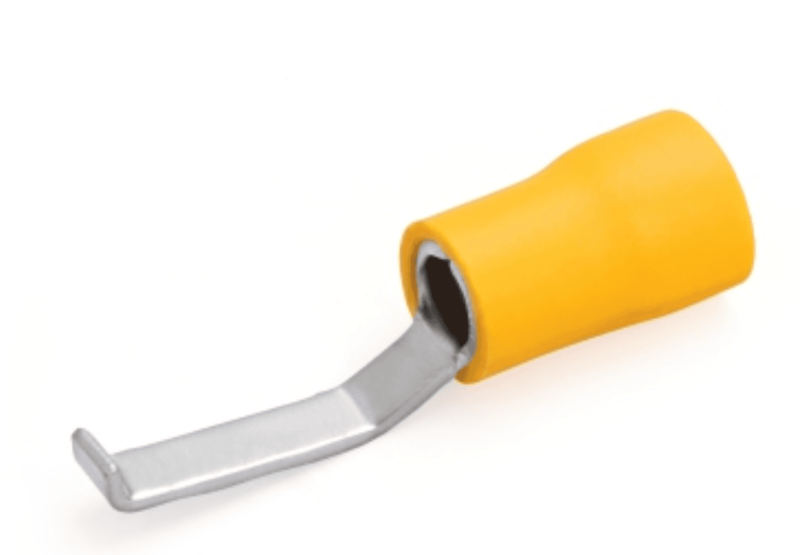

Hook Blade Terminals | Insulated
Insulated copper hook blade terminals with electro-tinned finish. Available for conductor sizes 1.5–6 mm² with narrow (3.0 mm) and wide (4.6 mm) blade options.
Material: Copper
Finish: Electro-Tinned
Conductor range: 1.5–6 mm²
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Key Features
Copper material
Electro-tinned finish
Insulated type
Conductor range: 1.5u20136 mmu00b2
Narrow (3.0 mm) and wide (4.6 mm) blade widths
Technical Specifications
Material: Copper
Finish: Electro-Tinned
Conductor range: 1.5–6 mm²
Applications
Control panel wiring
Instrumentation and automation
Terminal block connections
Low voltage terminations
Specifications
| Size (mm²) | d1 (mm) | d3 (mm) | b (mm) | x (mm) | e (mm) | l (mm) | P/N |
|---|---|---|---|---|---|---|---|
| 1.5 | 1.6 | 3.2 | 3.0 | 1.7 | 17.5 | 28.4 | AIHBL 1.5-3 |
| 1.5 | 1.6 | 3.2 | 4.6 | 1.7 | 17.5 | 28.4 | AIHBL 1.5-4 |
| 2.5 | 2.6 | 3.9 | 3.0 | 1.7 | 17.5 | 28.4 | AIHBL 2.5-3 |
| 2.5 | 2.6 | 3.9 | 4.6 | 1.7 | 17.5 | 28.4 | AIHBL 2.5-4 |
| 4-6 | 3.6 | 5.6 | 4.6 | 1.9 | 17.5 | 32.7 | AIHBL 4/6-4 |
Notes
All dimensions are in mm. Standard tolerance applies.

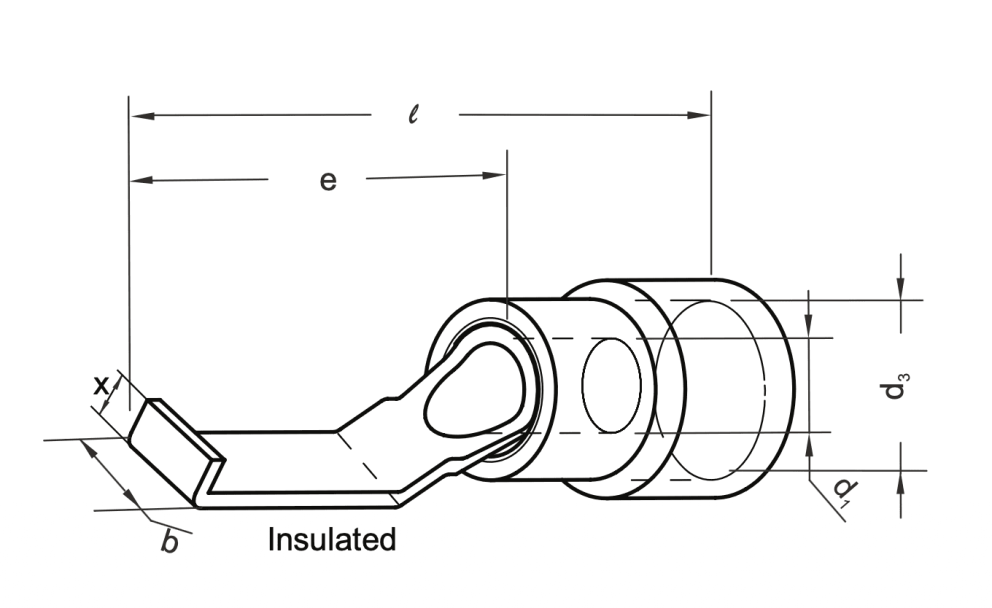

Technical Drawing
