Compression Cable Lugs & Connectors
Non Tension Compression Connector to DIN 46267, Part 1
Non-tension compression connectors for aluminium conductors, conforming to DIN 46267 Part 2. Manufactured from E-aluminium with natural or electro tinned finish. Available for conductor sizes 25–500 mm² (round/multi-stranded) with part…
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Key Features
Technical Specifications
Applications
Specifications Table
| Nom-X Section Area (rm/sm)* (mm²) | Nom-X Section Area (se)** (mm²) | du2081 (mm) | du2083 (mm) | l (mm) | P/N | Units/Pack |
|---|---|---|---|---|---|---|
| 25 | 35 | 6.8 | 12.0 | 70.0 | ALSILD 25 | 10 |
| 35 | 50 | 8.0 | 14.0 | 85.0 | ALSILD 35 | 10 |
| 50 | 70 | 9.8 | 16.0 | 85.0 | ALSILD 50 | 10 |
| 70 | 95 | 11.2 | 18.5 | 105.0 | ALSILD 70 | 10 |
| 95 | 120 | 13.2 | 22.0 | 105.0 | ALSILD 95 | 10 |
| 120 | 150 | 14.7 | 23.0 | 105.0 | ALSILD 120 | 10 |
| 150 | 185 | 16.3 | 25.0 | 125.0 | ALSILD 150 | 10 |
| 185 | 240 | 18.3 | 28.5 | 125.0 | ALSILD 185 | 5 |
| 240 | 300 | 21.0 | 32.0 | 145.0 | ALSILD 240 | 5 |
| 300 | - | 23.3 | 34.0 | 145.0 | ALSILD 300 | 5 |
| 400 | - | 26.0 | 38.5 | 210.0 | ALSILD 400 | 1 |
| 500 | - | 29.0 | 44.0 | 210.0 | ALSILD 500 | 1 |
Notes
All dimensions are in mm. Standard tolerance applies.
* rm = Round conductor, multiwire; sm = Sector conductor, multiwire.
** se = Sector conductor, singlewire.
Conforming to DIN 46267 Part 2.

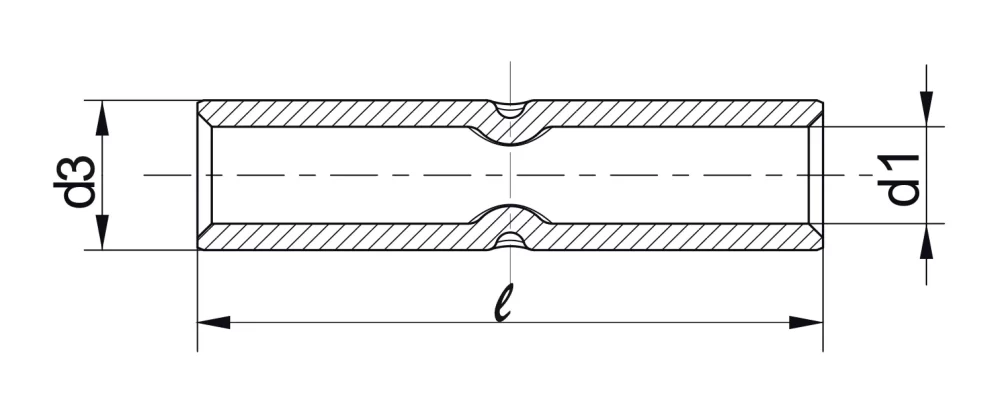

Technical Drawing
Standard Cable Lugs for Fine Stranded Round Conductors
Standard cable lugs for fine stranded round conductors. E-copper, electro tinned; available with or without…
Bimetallic Cable Connector — Standard Cable Connector for Stranded Round Conductors
Bimetallic cable connectors for stranded round conductors with friction welded connection joining an E-aluminium end…

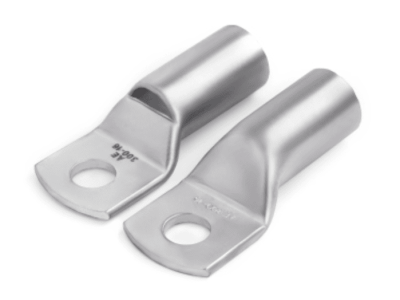

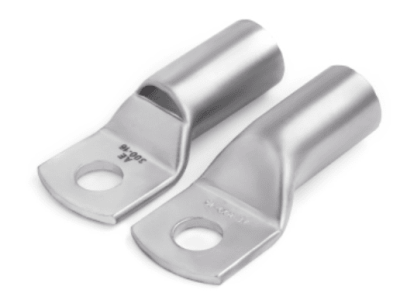

Standard Cable Lugs for Multi-Stranded Round / Sector-Shaped Conductors
