L Connector Stud to Flatbar

Name: L Connector Stud to Flatbar
Brand: A-1 Electricals
Availability: InStock

L connector for conductor to flatbar termination in substation busbar applications (stud-type connection).

Material: Al Alloy

Finish: Natural or Electro Tinned

ISO 9001:2015

Quality System

CE / RoHS

Compliant

IEC Tested

Certified

Technical Specifications

Material: Al Alloy

Finish: Natural or Electro Tinned

Specifications

ΦA Min. (mm)	ΦA Max. (mm)	B (mm)	C (mm)	D (mm)	E (mm)
12	15	50	50	15	82
12	15	60	60	15	82
12	15	80	80	15	82
12	15	100	100	15	82
12	15	125	125	15	82
16	19	50	50	15	82
16	19	60	60	15	82
16	19	80	80	15	82
16	19	100	100	15	82
16	19	125	125	15	82
20	23	50	50	15	82
20	23	60	60	15	82
20	23	80	80	15	82
20	23	100	100	15	82
20	23	125	125	15	82
24	26	60	60	15	82
24	26	80	80	15	82
24	26	100	100	15	82
24	26	125	125	15	82
27	30	60	60	15	82
27	30	80	80	15	82
27	30	100	100	15	82
27	30	125	125	15	82
31	32	80	80	15	85
31	32	100	100	15	85
31	32	125	125	15	85
33	35	80	80	15	85
33	35	100	100	15	85
33	35	125	125	15	85
36	39	80	80	15	85
36	39	100	100	15	85
36	39	125	125	15	85
40	43	80	80	15	85
40	43	100	100	15	85
40	43	125	125	15	85

Notes

B and C are equal for each row. D = 15 mm throughout. E = 82 mm for ΦA 12u201315 through 27u201330; E = 85 mm for ΦA 31u201332 through 40u201343.

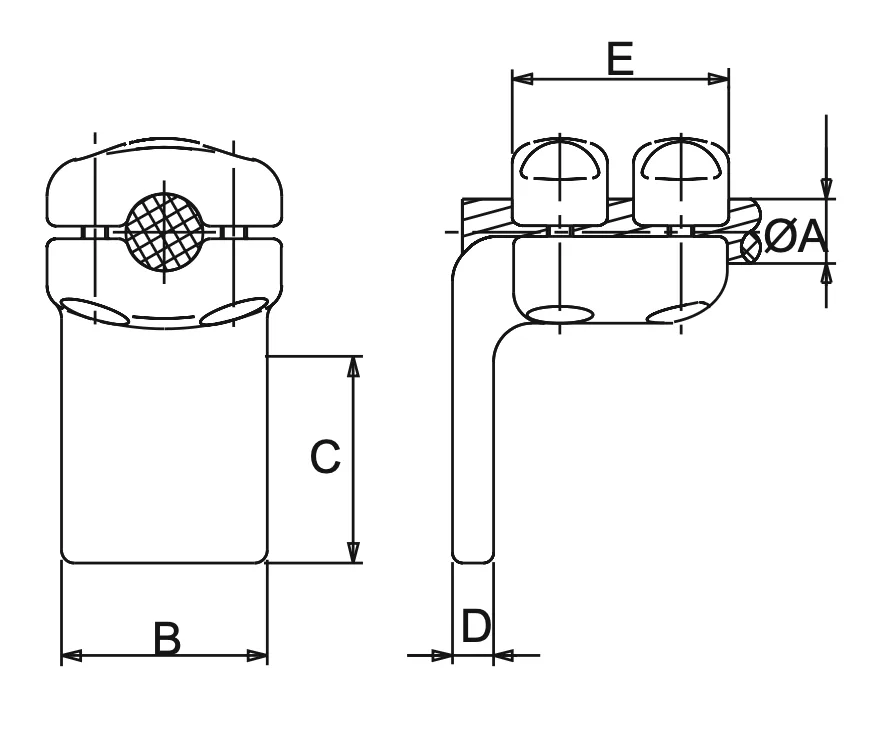

Technical Drawing
