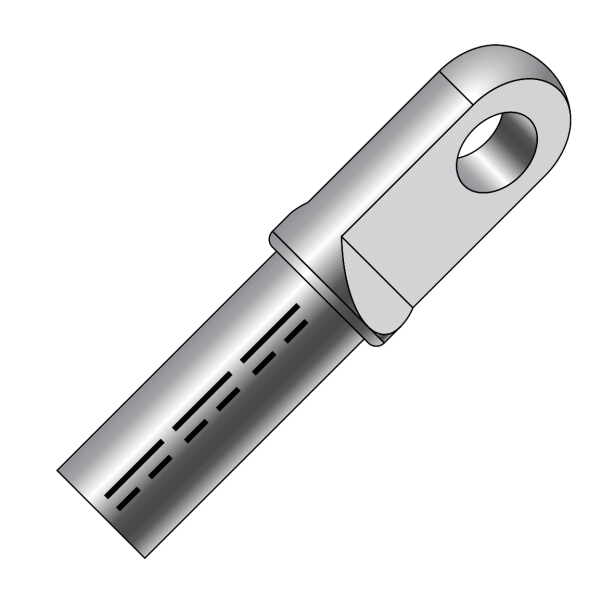

Copper Centre Palm Cable Lugs — Centric Palm Cable Lugs for Termination
E-copper centric palm cable lugs for termination. Natural finish with centric palm design for precise conductor alignment. Available for conductor sizes 25–300 mm². For aluminium and lugs with other dimensions,…
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Key Features
Technical Specifications
Applications
Specifications
| Nom-X Section Area Cu (mm²) | d1 (mm) | d3 (mm) | b (mm) | P/N | Units/Pack |
|---|---|---|---|---|---|
| 25 | 7.0 | 10.0 | 28.0 | ACUSCP28D45-25 | 3 |
| 35 | 8.0 | 12.5 | 28.0 | ACUSCP28D45-35 | 3 |
| 50 | 10.0 | 14.5 | 28.0 | ACUSCP28D45-50 | 3 |
| 70 | 11.5 | 16.5 | 28.0 | ACUSCP28D45-70 | 3 |
| 95 | 13.5 | 19.0 | 28.0 | ACUSCP28D45-95 | 3 |
| 120 | 15.5 | 21.0 | 28.0 | ACUSCP28D45-120 | 3 |
| 150 | 17.0 | 23.5 | 28.0 | ACUSCP28D45-150 | 3 |
| 185 | 19.0 | 25.5 | 28.0 | ACUSCP28D45-185 | 3 |
| 240 | 21.5 | 29.0 | 28.0 | ACUSCP28D45-240 | 3 |
| 300 | 24.5 | 32.0 | 28.0 | ACUSCP28D45-300 | 3 |
Notes
All dimensions are in mm. Standard tolerance applies.
For aluminium and lugs with other dimensions please contact us.

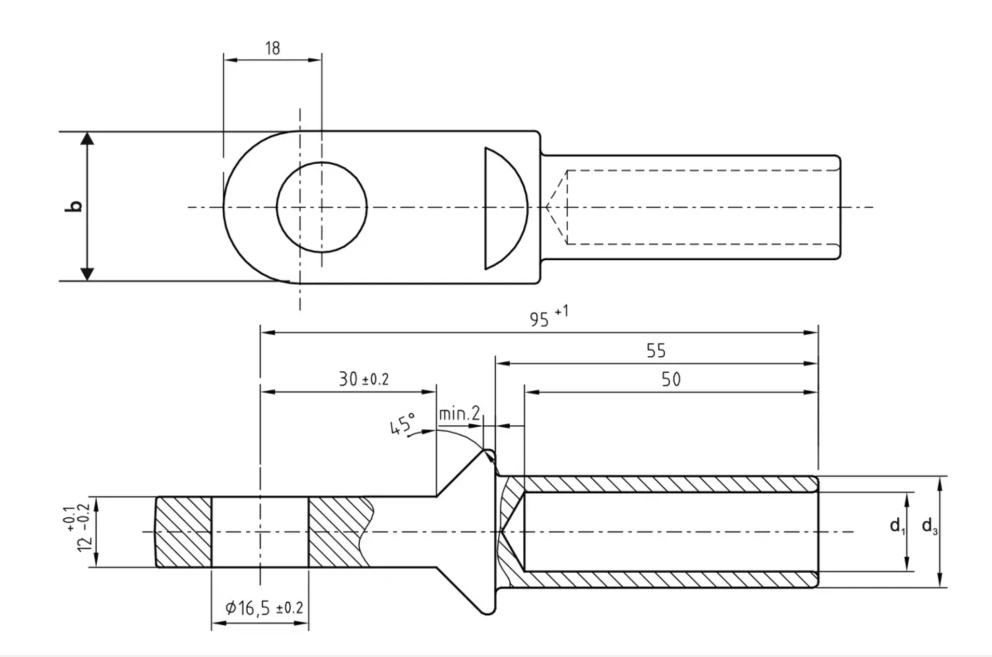

Technical Drawing
Standard Cable Lugs for Fine Stranded Round Conductors
Standard cable lugs for fine stranded round conductors. E-copper, electro tinned; available with or without…
Bimetallic Standard Cable Lugs for Stranded Round Conductors (Cu Washer)
Bimetallic cable lugs with integrated copper washer for connections in humid areas and non-tension aluminium…
Standard Cable Lugs for Multi-Stranded Round / Sector-Shaped Conductors
Standard cable lugs for multi-stranded round and sector-shaped conductors. E-copper, electro tinned; with or without…
