Heat Shrink Thin Wall Insulating Tubing — for Insulation

Name: Heat Shrink Thin Wall Insulating Tubing — for Insulation
Brand: A-1 Electricals
Availability: InStock

Heat shrink thin wall insulating tubing widely used for electrical insulation and in-line component protection. It bundles wires for very flexible light-duty harnesses and helps identify/color-code wires, cables, terminals, and…

Normal size range: phi 1.0 to phi 150

As supplied wall thickness (min): 0.18 mm to 0.55 mm

After recovered wall thickness (min): 0.33 mm to 1.30 mm

Standard lengths: 200 / 100 / 50 / 30 / 15 m per spool (size dependent)

Request Quote Technical Support

ISO 9001:2015

Quality System

CE / RoHS

Compliant

IEC Tested

Certified

Key Features

Widely used for electrical insulation and in-line component protection

Suitable for flexible light-duty harness bundling

Supports wire, cable, terminal, and component identification/color coding

Wide size range from phi 1.0 mm to phi 150 mm

Available in multiple spool lengths based on size

Technical Specifications

Normal size range: phi 1.0 to phi 150

As supplied wall thickness (min): 0.18 mm to 0.55 mm

After recovered wall thickness (min): 0.33 mm to 1.30 mm

Standard lengths: 200 / 100 / 50 / 30 / 15 m per spool (size dependent)

Applications

Electrical insulation of wires and cable joints

In-line component protection

Wire harness bundling in panels and equipment

Color coding and identification of electrical circuits

Specifications Table

Normal Size (mm)	As Supplied Inside Dia. (mm)	As Supplied Wall Thick. (min) (mm)	After Recovered Inside Dia. (max) (mm)	After Recovered Wall Thick. (min) (mm)	Standard Length (m/spool)
phi 1.0	1.5 u00b1 0.2	0.18	0.50	0.33	200
phi 1.5	2.0 u00b1 0.2	0.18	0.75	0.36	200
phi 2.0	2.7 u00b1 0.2	0.25	1.00	0.44	200
phi 2.5	3.1 u00b1 0.2	0.25	1.25	0.44	200
phi 3.0	3.7 u00b1 0.3	0.25	1.50	0.44	200
phi 3.5	4.0 u00b1 0.3	0.25	1.75	0.44	200
phi 4.0	4.7 u00b1 0.3	0.25	2.00	0.44	200
phi 5.0	5.6 u00b1 0.3	0.25	2.50	0.56	100
phi 6.0	6.8 u00b1 0.3	0.25	3.00	0.56	100
phi 7.0	7.7 u00b1 0.3	0.25	3.50	0.56	100
phi 8.0	8.8 u00b1 0.3	0.30	4.00	0.56	100
phi 9.0	9.8 u00b1 0.3	0.30	4.50	0.56	100
phi 10	10.7 u00b1 0.4	0.30	5.00	0.56	100
phi 11	11.7 u00b1 0.4	0.30	5.50	0.56	100
phi 12	12.7 u00b1 0.4	0.30	6.00	0.56	50
phi 13	13.7 u00b1 0.4	0.30	6.50	0.65	50
phi 14	14.7 u00b1 0.4	0.35	7.00	0.69	50
phi 15	15.7 u00b1 0.5	0.35	7.50	0.69	50
phi 16	16.7 u00b1 0.5	0.35	8.00	0.69	50
phi 18	19.0 u00b1 0.5	0.40	9.00	0.80	50
phi 20	21.4 u00b1 0.5	0.40	10.00	0.80	50
phi 22	23.4 u00b1 0.6	0.45	11.00	0.80	50
phi 25	26.5 u00b1 0.8	0.45	12.50	0.90	50
phi 28	29.5 u00b1 0.8	0.45	14.00	0.90	50
phi 30	31.5 u00b1 0.8	0.45	15.00	0.90	50
phi 35	36.5 u00b1 0.8	0.50	17.50	0.90	50
phi 40	42.0 u00b1 0.8	0.50	20.00	1.00	50
phi 50	52.0 u00b1 0.8	0.50	25.00	1.00	50
phi 60	62.0 u00b1 1.0	0.50	30.00	1.00	30
phi 70	72.0 u00b1 1.0	0.50	35.00	1.20	30
phi 80	82.0 u00b1 1.0	0.55	40.00	1.20	30
phi 100	102.0 u00b1 1.0	0.55	50.00	1.30	30
phi 120	121.0 u00b1 1.0	0.55	60.00	1.30	15
phi 150	151.0 u00b1 1.0	0.55	75.00	1.30	15

Notes

Other colors are available on request.

Heat Shrink Thin Wall Insulating Tubing — for Insulation

Related Products

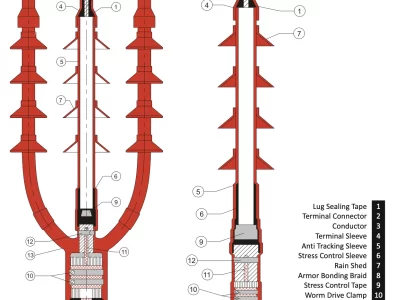

Heat Shrink Termination — For 1 core / 3 core XLPE Cable from 11kV–36kV

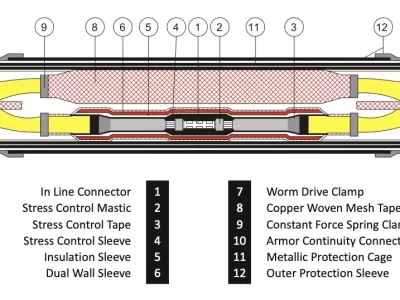

Heat Shrink Straight Thru Joint — For 1 core / 3 core XLPE Cable from 11kV–36kV
