Heat Shrink Straight Thru Joint — For 1 core / 3 core XLPE Cable from 11kV–36kV
Heat shrink medium voltage straight through joint for 1 core and 3 core EPR or XLPE insulated, wire and tape screened, armoured or unarmoured cable with copper or aluminium conductors.…
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Key Features
Technical Specifications
Applications
3-core (AXSJ)
| Part Ref. No. | Max. Volt (kV) | Cable Size (sq.mm.) |
|---|---|---|
| AXSJ-11 | 12/17.5 | 16-35 |
| AXSJ-12 | 12/17.5 | 50-95 |
| AXSJ-13 | 12/17.5 | 120-185 |
| AXSJ-14 | 12/17.5 | 240-400 |
| AXSJ-15 | 12/17.5 | 500-630 |
| AXSJ-21 | 24 | 25-50 |
| AXSJ-22 | 24 | 70-120 |
| AXSJ-23 | 24 | 120-150 |
| AXSJ-24 | 24 | 185-240 |
| AXSJ-25 | 24 | 300-400 |
| AXSJ-31 | 36 | 25-50 |
| AXSJ-32 | 36 | 95-150 |
| AXSJ-33 | 36 | 185-300 |
| AXSJ-34 | 36 | 400-630 |
Notes
For three core EPR or XLPE insulated, wire and tape screened, armoured or unarmoured cable. Copper or aluminium conductors.
Cable inline connectors not included.

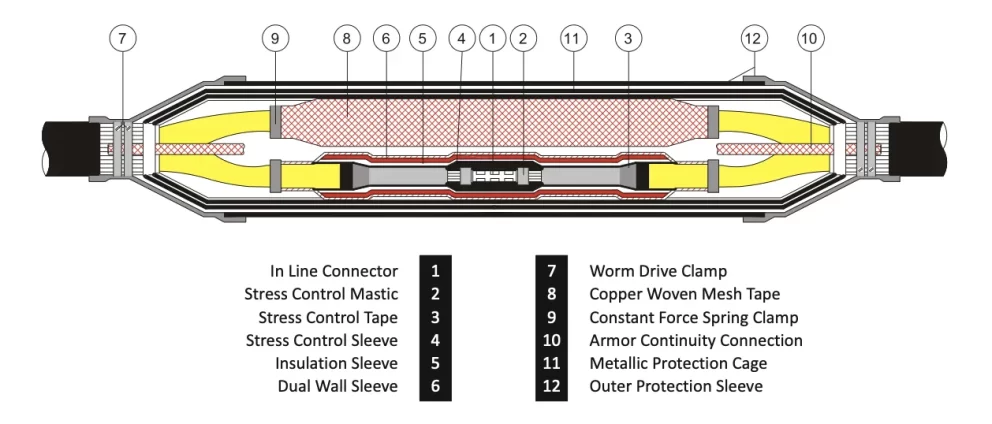

Technical Drawing
1-core (AXSSJ)
| Part Ref. No. | Max. Volt (kV) | Cable Size (sq.mm.) |
|---|---|---|
| AXSSJ-11 | 12/17.5 | 25-50 |
| AXSSJ-12 | 12/17.5 | 70-120 |
| AXSSJ-13 | 12/17.5 | 150-185 |
| AXSSJ-14 | 12/17.5 | 240-300 |
| AXSSJ-15 | 12/17.5 | 400-500 |
| AXSSJ-16 | 12/17.5 | 630-1000 |
| AXSSJ-21 | 24 | 25-50 |
| AXSSJ-22 | 24 | 70-150 |
| AXSSJ-23 | 24 | 185-240 |
| AXSSJ-24 | 24 | 300-400 |
| AXSSJ-25 | 24 | 500-630 |
| AXSSJ-31 | 36 | 35-70 |
| AXSSJ-32 | 36 | 95-150 |
| AXSSJ-33 | 36 | 185-400 |
| AXSSJ-34 | 36 | 500-1000 |
Notes
For single core EPR or XLPE insulated, wire and tape screened, armoured or unarmoured cable. Copper or aluminium conductors.
Cable inline connectors not included.
Technical Drawing
