Heat Shrink Straight Thru Joint — For 1.1kV PVC/XLPE/EPR Cable
Heat shrink low voltage straight through joint and termination for PVC/XLPE/EPR cables at 1.2 kV. Available for single core (1C) and four core (4C) cables. Cable inline connectors and cable…
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Key Features
Technical Specifications
Applications
Straight Thru Joint (AXLVJA)
| Part Ref. No. | Max. Volt (kV) | Cable Size (sq.mm.) |
|---|---|---|
| AXLVJA-11 | 1.2 | 1C x 25-50 |
| AXLVJA-12 | 1.2 | 1C x 70-150 |
| AXLVJA-13 | 1.2 | 1C x 185-300 |
| AXLVJA-14 | 1.2 | 1C x 400-630 |
| AXLVJA-15 | 1.2 | 1C x 800-1000 |
| AXLVJA-01 | 1.2 | 4C x 1.5-6 |
| AXLVJA-02 | 1.2 | 4C x 10-16 |
| AXLVJA-03 | 1.2 | 4C x 25-50 |
| AXLVJA-04 | 1.2 | 4C x 70-150 |
| AXLVJA-05 | 1.2 | 4C x 185-300 |
| AXLVJA-06 | 1.2 | 4C x 400-630 |
Notes
For PVC/XLPE/EPR cables.
Cable inline connectors not included.

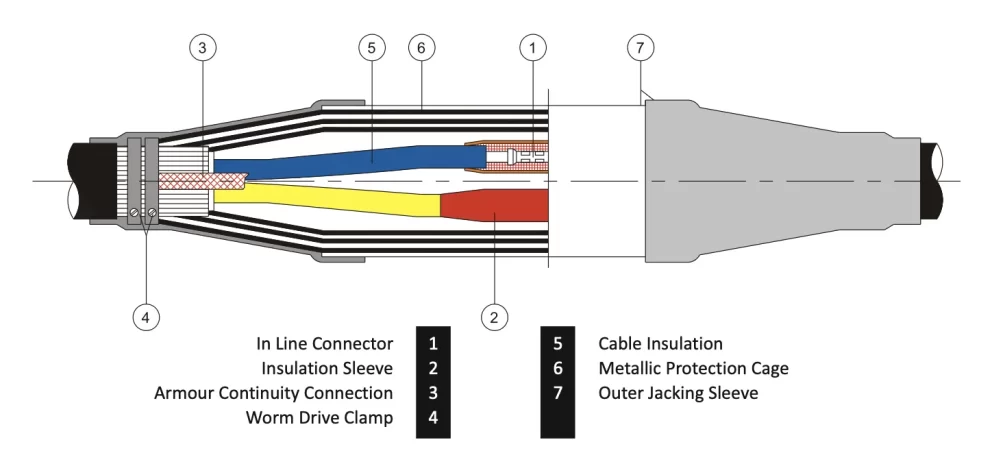

Technical Drawing
LV Termination (AXLVT)
| Part Ref. No. | Max. Volt (kV) | Cable Size (sq.mm.) |
|---|---|---|
| AXLVT-11 | 1.2 | 4C x 25-50 |
| AXLVT-12 | 1.2 | 4C x 70-150 |
| AXLVT-13 | 1.2 | 4C x 185-300 |
| AXLVT-14 | 1.2 | 4C x 400-630 |
| AXLVT-15 | 1.2 | 4C x 800-1000 |
Notes
For PVC/XLPE/EPR cables.
Cable lugs not included.
Technical Drawing
