Heat Shrink Medium Wall Insulating Tubing — for Insulation
Heat shrink medium wall insulating tubing suitable for low and medium voltage insulation. Available in two versions: adhesive coated and non-adhesive.
Tubing dimension range: 9/3 to 185/50
Recovered wall thickness: 1.8 mm to 4.5 mm
Standard length: 1000–1500 mm
All dimensions in mm
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Key Features
Suitable for low and medium voltage insulation
Available in adhesive coated and non-adhesive versions
Medium wall heat shrink construction
Dimension range from 9/3 up to 185/50
Standard length range 1000u20131500 mm
Technical Specifications
Tubing dimension range: 9/3 to 185/50
Recovered wall thickness: 1.8 mm to 4.5 mm
Standard length: 1000–1500 mm
All dimensions in mm
Applications
Low voltage cable insulation reinforcement
Medium voltage cable insulation
Electrical connection insulation sleeves
Protective insulation in switchgear and panel wiring
Specifications
| Dimensions | D min (mm) | d max (mm) | T min (mm) | Standard Length (mm) |
|---|---|---|---|---|
| 9/3 | 9 | 3 | 1.8 | 1000 - 1500 |
| 13/4 | 13 | 4 | 2.4 | 1000 - 1500 |
| 19/6 | 19 | 6 | 2.4 | 1000 - 1500 |
| 33/8 | 33 | 8 | 3.0 | 1000 - 1500 |
| 45/12 | 45 | 12 | 4.1 | 1000 - 1500 |
| 51/16 | 51 | 16 | 4.1 | 1000 - 1500 |
| 68/22 | 68 | 22 | 4.1 | 1000 - 1500 |
| 85/25 | 85 | 25 | 4.1 | 1000 - 1500 |
| 105/30 | 105 | 30 | 4.1 | 1000 - 1500 |
| 130/36 | 130 | 36 | 4.2 | 1000 - 1500 |
| 165/50 | 165 | 50 | 4.5 | 1000 - 1500 |
| 185/50 | 185 | 50 | 4.5 | 1000 - 1500 |
Notes
** Fully recovered

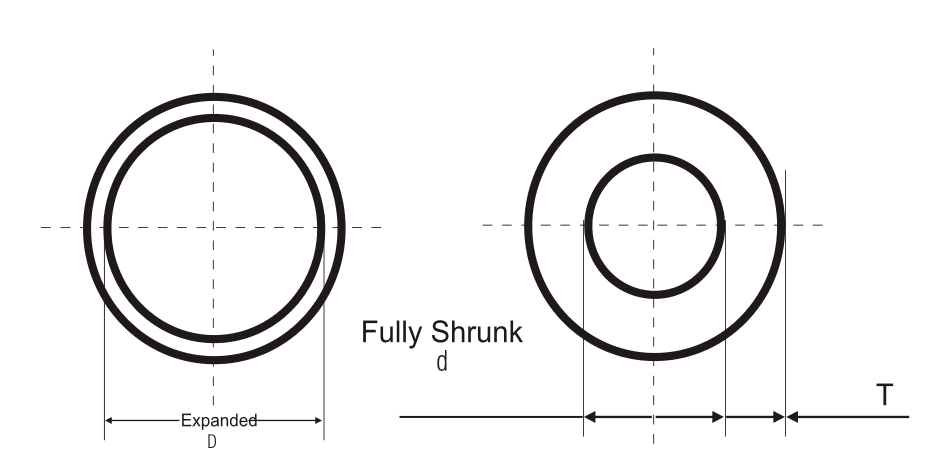

Technical Drawing
