Heat Shrink Cable End Caps — For Sealing of Cable Ends

Name: Heat Shrink Cable End Caps — For Sealing of Cable Ends
Brand: A-1 Electricals
Availability: InStock

Heat shrink cable end caps for sealing cable ends, pipes, and conduits. They provide resistance to weather, moisture contamination, abrasion, and adverse environmental conditions.

Dimensions from HSEC-105 12/4 to HSEC-190 160/82

Length L tolerance: ±10%

Recovered wall thickness W tolerance: ±20%

All dimensions are in mm

Request Quote Technical Support

ISO 9001:2015

Quality System

CE / RoHS

Compliant

IEC Tested

Certified

Key Features

Ideal for sealing cable ends, pipes, and conduits

Weather resistant

Moisture contamination resistant

Abrasion resistant

Suitable for adverse environmental conditions

Available with valve on request

Technical Specifications

Dimensions from HSEC-105 12/4 to HSEC-190 160/82

Length L tolerance: ±10%

Recovered wall thickness W tolerance: ±20%

All dimensions are in mm

Applications

Temporary or permanent sealing of cable ends

Moisture ingress prevention during cable storage

Conduit and pipe end protection

Outdoor and industrial cable handling

Specifications

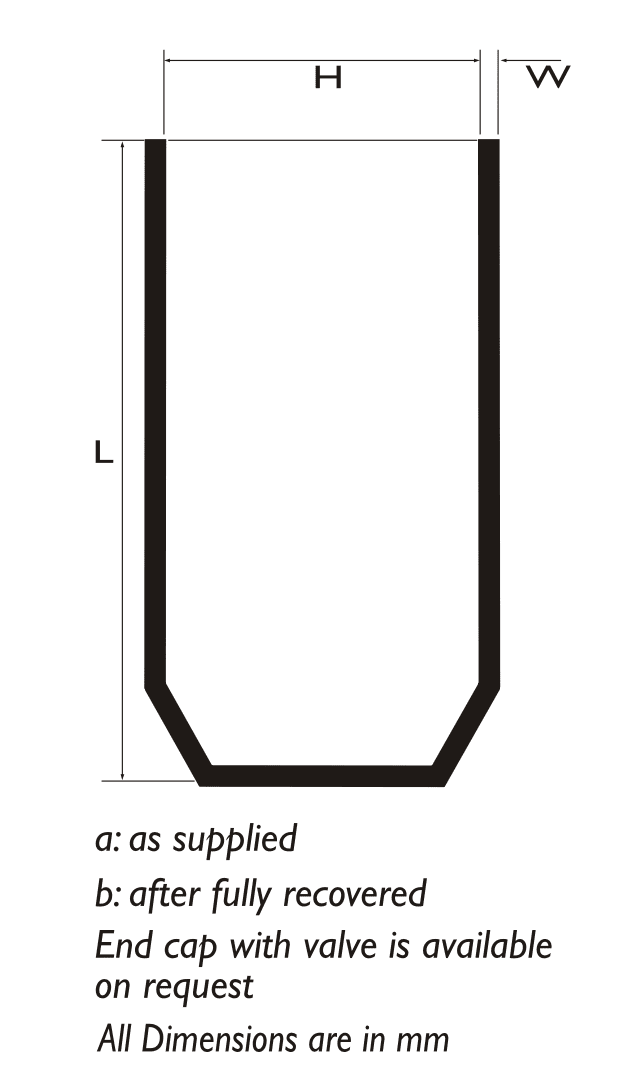

Part No	H a (min) (mm)	H b (max) (mm)	Length L u00b110% (mm)	Recovered Wall Thickness W u00b120% (mm)
HSEC-105 12/4	12	4	40	2.6
HSEC-110 14/5	14	5	45	2.2
HSEC-115 20/6	20	6	55	2.8
HSEC-120 25/8.5	25	8.5	68	2.8
HSEC-130 35/16	35	16	83	3.3
HSEC-135 40/16	40	16	83	3.3
HSEC-140 55/26	55	26	103	3.5
HSEC-150 75/36	75	36	120	4.0
HSEC-160 100/52	100	52	140	4.0
HSEC-170 120/60	120	60	150	4.0
HSEC-180 145/60	145	60	150	4.0
HSEC-190 160/82	160	82	150	4.0
