BS 3974
Cable Glands

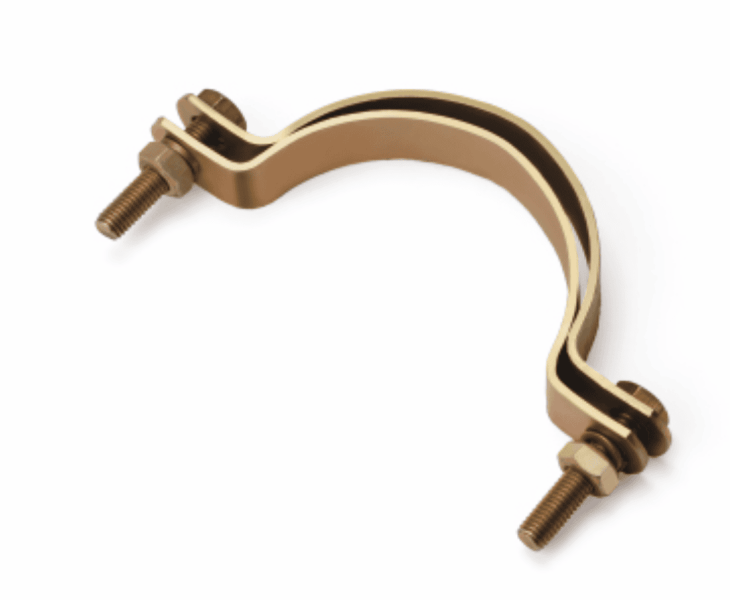

Clamp for Brass Wiping Cable Gland — C Clamps in Two Halves for Fitting of Brass Wiping Gland
Mild steel C clamps in two halves for installation support of brass wiping cable glands. Compatible with gland sizes X, Y, 106D and Z. Design specification BS 3974.
Design Specification: BS 3974
Material: Mild Steel
Application: Installation support of wiping gland
Compatible gland sizes: X, Y, 106D, Z
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Key Features
C clamps in two halves for fitting of brass wiping gland
For installation support of wiping gland
Material: Mild Steel
Compatible with gland sizes X, Y, 106D and Z
Design specification BS 3974
Technical Specifications
Design Specification: BS 3974
Material: Mild Steel
Application: Installation support of wiping gland
Compatible gland sizes: X, Y, 106D, Z
Applications
Support clamp for brass wiping cable gland installation
MV cable gland fixing and retention
Panel and equipment cable gland support
Specifications
| Clamps for Gland Size | A (mm) | B (mm) | C (ΦC) (mm) |
|---|---|---|---|
| X | 143.0 | 118.0 | 73.0 |
| Y | 171.0 | 146.0 | 103.0 |
| 106D | 190.0 | 165.0 | 120.0 |
| Z | 209.0 | 185.0 | 123.0 |
Notes
All dimensions are in mm.
Design specification: BS 3974.
C dimension refers to the diameter ΦC.

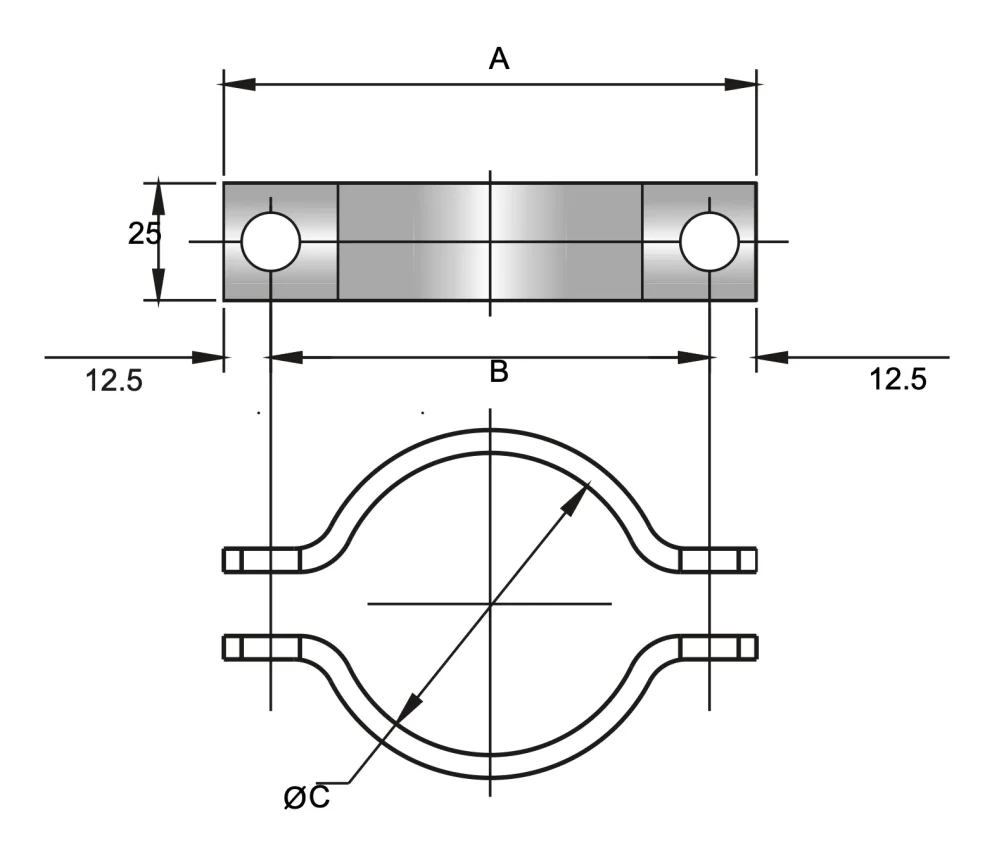

Technical Drawing
