Brass Wiping Cable Gland for MV Termination — For SWA/PVC/XLPE/EPR Cables

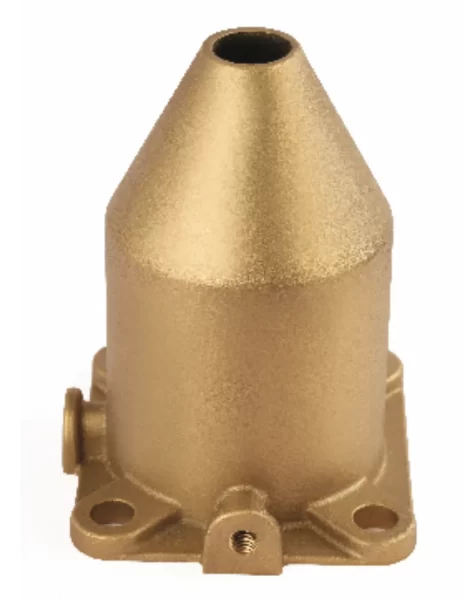

Brass wiping cable gland designed for medium voltage cable terminations. For use with SWA/PVC/XLPE/EPR cables. Brass construction conforming to design specification BS 2652. Available in four sizes covering cable diameters…
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Key Features
Technical Specifications
Applications
Specifications Table
| Gland Size | P/N | Dia. over Metal Sheath of Cable (mm) | A (mm) | B (mm) | u03a6C (mm) | u03a6D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | u03a6J (mm) | R (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| X | AWX | 12u201351 | 137.0 | 90.0 | 60.0 | 19.0 | 90.0 | 90.0 | 66.0 | 66.0 | 12.0 | 12.0 |
| Y | AWY | 25u201378 | 155.0 | 95.0 | 89.0 | 25.0 | 112.0 | 123.0 | 95.0 | 86.0 | 14.0 | 14.0 |
| 106 | A-106D | 25u201390 | 150.0 | 95.0 | 106.0 | 30.0 | 137.0 | 137.0 | 104.0 | 104.0 | 14.0 | 12.5 |
| Z | AWZ | 25u201394 | 195.0 | 140.0 | 108.0 | 32.0 | 190.0 | 100.0 | u2014 | u2014 | 14.0 | 12.5 |
Notes
All dimensions are in mm.
Design specification: BS 2652.
u2014 indicates dimension not applicable for that gland size.

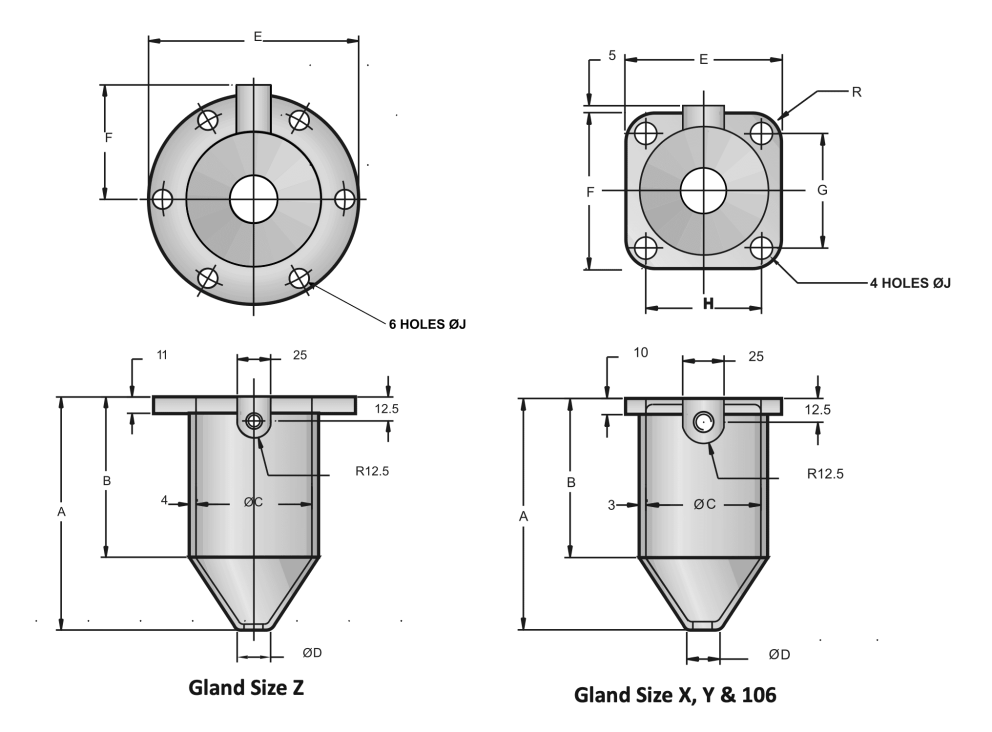

Technical Drawing
