Compression Cable Lugs & Connectors
Bimetallic Cable Connector — Standard Cable Connector for Stranded Round Conductors
Bimetallic cable connectors for stranded round conductors with friction welded connection joining an E-aluminium end to an E-copper end. Natural finish. Available for aluminium conductor sizes 25–150 mm² paired with…
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Key Features
Technical Specifications
Applications
Specifications Table
| Nom-X Section Area Al (mm²) | Nom-X Section Area Cu (mm²) | du2081 (mm) | du2082 (mm) | du2083 (mm) | du2084 (mm) | lu2081 (mm) | lu2082 (mm) | l (mm) | P/N | Units/Pack |
|---|---|---|---|---|---|---|---|---|---|---|
| 25 | 16 | 7.0 | 16.0 | 5.5 | 8.5 | 43.0 | 25.0 | 84.0 | ABIL 25Al-16Cu | 6 |
| 25 | 25 | 7.0 | 16.0 | 7.0 | 10.0 | 43.0 | 25.0 | 84.0 | ABIL 25Al-25Cu | 6 |
| 35 | 16 | 8.5 | 16.0 | 5.5 | 8.5 | 43.0 | 25.0 | 84.0 | ABIL 35Al-16Cu | 6 |
| 35 | 25 | 8.5 | 16.0 | 7.0 | 10.0 | 43.0 | 25.0 | 84.0 | ABIL 35Al-25Cu | 6 |
| 35 | 35 | 8.5 | 16.0 | 8.5 | 12.5 | 43.0 | 25.0 | 84.0 | ABIL 35Al-35Cu | 6 |
| 50 | 25 | 10.0 | 20.0 | 7.0 | 10.0 | 43.0 | 28.0 | 87.0 | ABIL 50Al-25Cu | 6 |
| 50 | 35 | 10.0 | 20.0 | 8.5 | 12.5 | 43.0 | 28.0 | 87.0 | ABIL 50Al-35Cu | 6 |
| 50 | 50 | 10.0 | 20.0 | 10.0 | 14.5 | 43.0 | 28.0 | 87.0 | ABIL 50Al-50Cu | 6 |
| 70 | 35 | 11.5 | 20.0 | 8.5 | 12.5 | 53.0 | 35.0 | 104.0 | ABIL 70Al-35Cu | 6 |
| 70 | 50 | 11.5 | 20.0 | 10.0 | 14.5 | 53.0 | 35.0 | 104.0 | ABIL 70Al-50Cu | 6 |
| 70 | 70 | 11.5 | 20.0 | 11.5 | 16.5 | 53.0 | 35.0 | 104.0 | ABIL 70Al-70Cu | 6 |
| 95 | 50 | 13.5 | 20.0 | 10.0 | 14.5 | 53.0 | 35.0 | 104.0 | ABIL 95Al-50Cu | 6 |
| 95 | 70 | 13.5 | 20.0 | 11.5 | 16.5 | 53.0 | 35.0 | 104.0 | ABIL 95Al-70Cu | 6 |
| 95 | 95 | 13.5 | 20.0 | 13.5 | 19.0 | 53.0 | 35.0 | 104.0 | ABIL 95Al-95Cu | 6 |
| 120 | 70 | 15.0 | 25.0 | 11.5 | 16.5 | 53.0 | 35.0 | 104.0 | ABIL 120Al-120Cu | 6 |
| 120 | 95 | 15.0 | 25.0 | 13.5 | 19.0 | 53.0 | 35.0 | 104.0 | ABIL 120Al-95Cu | 6 |
| 120 | 120 | 15.0 | 25.0 | 15.5 | 21.0 | 53.0 | 35.0 | 104.0 | ABIL 120Al-120Cu | 6 |
| 150 | 95 | 16.5 | 25.0 | 13.5 | 19.0 | 63.0 | 43.0 | 122.0 | ABIL 150Al-95Cu | 6 |
| 150 | 120 | 16.5 | 25.0 | 15.5 | 21.0 | 63.0 | 43.0 | 122.0 | ABIL 150Al-120Cu | 6 |
| 150 | 150 | 16.5 | 25.0 | 17.0 | 23.5 | 63.0 | 43.0 | 122.0 | ABIL 150Al-150Cu | 6 |
| 185 | 120 | 18.5 | 32.0 | 15.5 | 21.0 | 63.0 | 43.0 | 122.0 | ABIL 185Al-120Cu | 6 |
| 185 | 150 | 18.5 | 32.0 | 17.0 | 23.5 | 63.0 | 43.0 | 122.0 | ABIL 185Al-150Cu | 6 |
| 185 | 185 | 18.5 | 32.0 | 19.0 | 25.5 | 63.0 | 43.0 | 122.0 | ABIL 185Al-185Cu | 6 |
| 240 | 150 | 21.0 | 32.0 | 17.0 | 23.5 | 73.0 | 50.0 | 139.0 | ABIL 240Al-150Cu | 6 |
| 240 | 185 | 21.0 | 32.0 | 19.0 | 25.5 | 73.0 | 50.0 | 139.0 | ABIL 240Al-185Cu | 6 |
| 240 | 240 | 21.0 | 32.0 | 21.0 | 29.0 | 73.0 | 50.0 | 139.0 | ABIL 240Al-240Cu | 6 |
| 300 | 185 | 23.5 | 34.0 | 19.0 | 25.5 | 73.0 | 50.0 | 139.0 | ABIL 300Al-185Cu | 6 |
| 300 | 240 | 23.5 | 34.0 | 21.0 | 29.0 | 73.0 | 50.0 | 139.0 | ABIL 300Al-240Cu | 6 |
| 300 | 300 | 23.5 | 34.0 | 24.5 | 32.0 | 73.0 | 50.0 | 139.0 | ABIL 300Al-300Cu | 6 |
Notes
All dimensions are in mm. Standard tolerance applies.
Friction welded connection joining the aluminium and copper ends.

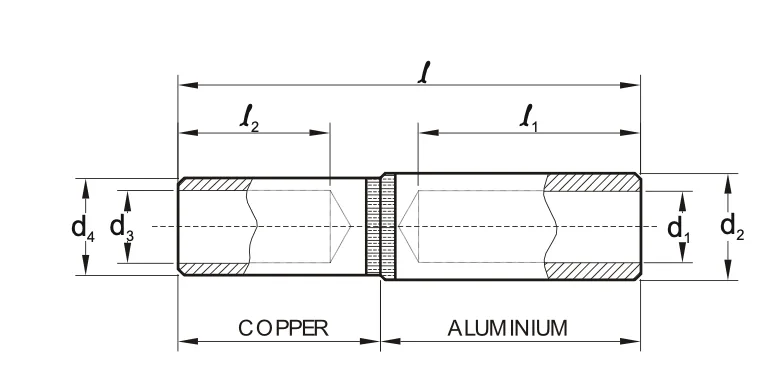

Technical Drawing
