DIN 46235
Compression Cable Lugs & Connectors

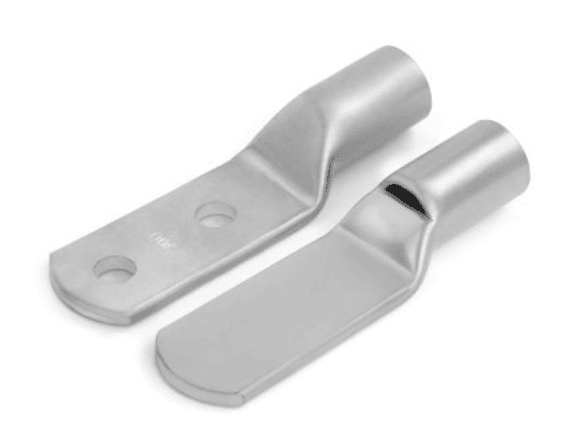

Two Hole Cable Lugs (Round, Multi-Stranded Round / Sector-Shaped Conductors)
Two-hole cable lugs for round and sector-shaped conductors with tube dimensions to DIN 46235.
Material: E-Copper
Finish: Natural or Electro Tinned
Nominal range: 25-1000 mm² (per table)
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Key Features
Tube dimensions to DIN 46235
Two-hole palm configuration
Natural or electro tinned finish
E-copper material
Technical Specifications
Material: E-Copper
Finish: Natural or Electro Tinned
Nominal range: 25-1000 mm² (per table)
Applications
Power cable terminations
Busbar and equipment connections
Specifications
| Nom-X Section Area (mm²) | Size of Stud Hole | d1 (mm) | a (mm) | b (mm) | d2 (mm) | d3 (mm) | cu2081 (mm) | cu2082 (mm) | lu2082 (mm) | l (mm) | P/N With Inspection Hole | P/N W/o Inspection Hole | Units/Pack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 25 | M8 | 7.0 | 20.0 | 17.0 | 8.4 | 10.0 | 16.0 | 13.0 | 40-60 | 37.0 | ACUS2HI 25-8 | ACUS2H 25-8 | 25 |
| 25 | M10 | 7.0 | 20.0 | 17.0 | 10.5 | 10.0 | 16.0 | 13.0 | 40-60 | 37.0 | ACUS2HI 25-10 | ACUS2H 25-10 | 25 |
| 25 | M12 | 7.0 | 20.0 | 19.0 | 13.0 | 10.0 | 16.0 | 13.0 | 40-60 | 37.0 | ACUS2HI 25-12 | ACUS2H 25-12 | 25 |
| 35 | M8 | 8.2 | 20.0 | 19.0 | 8.4 | 12.5 | 16.0 | 13.0 | 40-60 | 38.0 | ACUS2HI 35-8 | ACUS2H 35-8 | 25 |
| 35 | M10 | 8.2 | 20.0 | 19.0 | 10.5 | 12.5 | 16.0 | 13.0 | 40-60 | 38.0 | ACUS2HI 35-10 | ACUS2H 35-10 | 25 |
| 35 | M12 | 8.2 | 20.0 | 21.0 | 13.0 | 12.5 | 16.0 | 13.0 | 40-60 | 38.0 | ACUS2HI 35-12 | ACUS2H 35-12 | 25 |
| 50 | M10 | 10.0 | 28.0 | 24.0 | 10.5 | 14.5 | 19.0 | 16.0 | 40-60 | 50.0 | ACUS2HI 50-10 | ACUS2H 50-10 | 25 |
| 50 | M12 | 10.0 | 28.0 | 24.0 | 13.0 | 14.5 | 19.0 | 16.0 | 40-60 | 50.0 | ACUS2HI 50-12 | ACUS2H 50-12 | 25 |
| 50 | M14 | 10.0 | 28.0 | 24.0 | 15.0 | 14.5 | 19.0 | 16.0 | 40-60 | 50.0 | ACUS2HI 50-14 | ACUS2H 50-14 | 25 |
| 50 | M16 | 10.0 | 28.0 | 28.0 | 17.0 | 14.5 | 19.0 | 16.0 | 40-60 | 50.0 | ACUS2HI 50-16 | ACUS2H 50-16 | 25 |
| 70 | M10 | 11.5 | 28.0 | 24.0 | 10.5 | 16.5 | 19.0 | 16.0 | 40-60 | 51.0 | ACUS2HI 70-10 | ACUS2H 70-10 | 25 |
| 70 | M12 | 11.5 | 28.0 | 24.0 | 13.0 | 16.5 | 19.0 | 16.0 | 40-60 | 51.0 | ACUS2HI 70-12 | ACUS2H 70-12 | 25 |
| 70 | M14 | 11.5 | 28.0 | 24.0 | 15.0 | 16.5 | 19.0 | 16.0 | 40-60 | 51.0 | ACUS2HI 70-14 | ACUS2H 70-14 | 25 |
| 70 | M16 | 11.5 | 28.0 | 30.0 | 17.0 | 16.5 | 19.0 | 16.0 | 40-60 | 51.0 | ACUS2HI 70-16 | ACUS2H 70-16 | 25 |
| 95 | M10 | 13.5 | 35.0 | 28.0 | 10.5 | 19.0 | 19.0 | 16.0 | 40-60 | 59.0 | ACUS2HI 95-10 | ACUS2H 95-10 | 15 |
| 95 | M12 | 13.5 | 35.0 | 28.0 | 13.0 | 19.0 | 19.0 | 16.0 | 40-60 | 59.0 | ACUS2HI 95-12 | ACUS2H 95-12 | 15 |
| 95 | M14 | 13.5 | 35.0 | 28.0 | 15.0 | 19.0 | 19.0 | 16.0 | 40-60 | 59.0 | ACUS2HI 95-14 | ACUS2H 95-14 | 15 |
| 95 | M16 | 13.5 | 35.0 | 32.0 | 17.0 | 19.0 | 19.0 | 16.0 | 40-60 | 59.0 | ACUS2HI 95-16 | ACUS2H 95-16 | 15 |
| 120 | M10 | 15.5 | 35.0 | 32.0 | 10.5 | 21.0 | 22.0 | 20.0 | 40-60 | 65.0 | ACUS2HI 120-10 | ACUS2H 120-10 | 15 |
| 120 | M12 | 15.5 | 35.0 | 32.0 | 13.0 | 21.0 | 22.0 | 20.0 | 40-60 | 65.0 | ACUS2HI 120-12 | ACUS2H 120-12 | 15 |
| 120 | M14 | 15.5 | 35.0 | 32.0 | 15.0 | 21.0 | 22.0 | 20.0 | 40-60 | 65.0 | ACUS2HI 120-14 | ACUS2H 120-14 | 15 |
| 120 | M16 | 15.5 | 35.0 | 32.0 | 17.0 | 21.0 | 22.0 | 20.0 | 40-60 | 65.0 | ACUS2HI 120-16 | ACUS2H 120-16 | 15 |
| 120 | M20 | 15.5 | 35.0 | 38.0 | 21.0 | 21.0 | 22.0 | 20.0 | 40-60 | 65.0 | ACUS2HI 120-20 | ACUS2H 120-20 | 15 |
| 150 | M10 | 17.0 | 35.0 | 34.0 | 10.5 | 23.5 | 22.0 | 20.0 | 40-60 | 69.0 | ACUS2HI 150-10 | ACUS2H 150-10 | 15 |
| 150 | M12 | 17.0 | 35.0 | 34.0 | 13.0 | 23.5 | 22.0 | 20.0 | 40-60 | 69.0 | ACUS2HI 150-12 | ACUS2H 150-12 | 15 |
| 150 | M14 | 17.0 | 35.0 | 34.0 | 15.0 | 23.5 | 22.0 | 20.0 | 40-60 | 69.0 | ACUS2HI 150-14 | ACUS2H 150-14 | 15 |
| 150 | M16 | 17.0 | 35.0 | 34.0 | 17.0 | 23.5 | 22.0 | 20.0 | 40-60 | 69.0 | ACUS2HI 150-16 | ACUS2H 150-16 | 15 |
| 150 | M20 | 17.0 | 35.0 | 40.0 | 21.0 | 23.5 | 22.0 | 20.0 | 40-60 | 69.0 | ACUS2HI 150-20 | ACUS2H 150-20 | 15 |
| 185 | M10 | 19.0 | 40.0 | 37.0 | 10.5 | 25.5 | 22.0 | 20.0 | 40-60 | 74.0 | ACUS2HI 185-10 | ACUS2H 185-10 | 10 |
| 185 | M12 | 19.0 | 40.0 | 37.0 | 13.0 | 25.5 | 22.0 | 20.0 | 40-60 | 74.0 | ACUS2HI 185-12 | ACUS2H 185-12 | 10 |
| 185 | M14 | 19.0 | 40.0 | 37.0 | 15.0 | 25.5 | 22.0 | 20.0 | 40-60 | 74.0 | ACUS2HI 185-14 | ACUS2H 185-14 | 10 |
| 185 | M16 | 19.0 | 40.0 | 37.0 | 17.0 | 25.5 | 22.0 | 20.0 | 40-60 | 74.0 | ACUS2HI 185-16 | ACUS2H 185-16 | 10 |
| 185 | M20 | 19.0 | 40.0 | 40.0 | 21.0 | 25.5 | 22.0 | 20.0 | 40-60 | 74.0 | ACUS2HI 185-20 | ACUS2H 185-20 | 10 |
| 240 | M12 | 21.5 | 40.0 | 42.0 | 13.0 | 29.0 | 22.0 | 20.0 | 40-60 | 78.0 | ACUS2HI 240-12 | ACUS2H 240-12 | 10 |
| 240 | M14 | 21.5 | 40.0 | 42.0 | 15.0 | 29.0 | 22.0 | 20.0 | 40-60 | 78.0 | ACUS2HI 240-14 | ACUS2H 240-14 | 10 |
| 240 | M16 | 21.5 | 40.0 | 42.0 | 17.0 | 29.0 | 22.0 | 20.0 | 40-60 | 78.0 | ACUS2HI 240-16 | ACUS2H 240-16 | 10 |
| 240 | M20 | 21.5 | 40.0 | 45.0 | 21.0 | 29.0 | 22.0 | 20.0 | 40-60 | 78.0 | ACUS2HI 240-20 | ACUS2H 240-20 | 10 |
| 300 | M12 | 24.5 | 50.0 | 46.0 | 13.0 | 32.0 | 22.0 | 20.0 | 40-60 | 88.0 | ACUS2HI 300-12 | ACUS2H 300-12 | 5 |
| 300 | M14 | 24.5 | 50.0 | 46.0 | 15.0 | 32.0 | 22.0 | 20.0 | 40-60 | 88.0 | ACUS2HI 300-14 | ACUS2H 300-14 | 5 |
| 300 | M16 | 24.5 | 50.0 | 46.0 | 17.0 | 32.0 | 22.0 | 20.0 | 40-60 | 88.0 | ACUS2HI 300-16 | ACUS2H 300-16 | 5 |
| 300 | M20 | 24.5 | 50.0 | 46.0 | 21.0 | 32.0 | 22.0 | 20.0 | 40-60 | 88.0 | ACUS2HI 300-20 | ACUS2H 300-20 | 5 |
| 400 | M12 | 27.5 | 70.0 | 54.0 | 13.0 | 38.5 | 22.0 | 20.0 | 40-60 | 108.0 | ACUS2HI 400-12 | ACUS2H 400-12 | 5 |
| 400 | M14 | 27.5 | 70.0 | 54.0 | 15.0 | 38.5 | 22.0 | 20.0 | 40-60 | 108.0 | ACUS2HI 400-14 | ACUS2H 400-14 | 5 |
| 400 | M16 | 27.5 | 70.0 | 54.0 | 17.0 | 38.5 | 22.0 | 20.0 | 40-60 | 108.0 | ACUS2HI 400-16 | ACUS2H 400-16 | 5 |
| 400 | M20 | 27.5 | 70.0 | 54.0 | 21.0 | 38.5 | 22.0 | 20.0 | 40-60 | 108.0 | ACUS2HI 400-20 | ACUS2H 400-20 | 5 |
| 500 | M12 | 31.0 | 70.0 | 60.0 | 13.0 | 42.0 | 22.0 | 20.0 | 40-60 | 108.0 | ACUS2HI 500-12 | ACUS2H 500-12 | 3 |
| 500 | M14 | 31.0 | 70.0 | 60.0 | 15.0 | 42.0 | 22.0 | 20.0 | 40-60 | 108.0 | ACUS2HI 500-14 | ACUS2H 500-14 | 3 |
| 500 | M16 | 31.0 | 70.0 | 60.0 | 17.0 | 42.0 | 22.0 | 20.0 | 40-60 | 108.0 | ACUS2HI 500-16 | ACUS2H 500-16 | 3 |
| 500 | M20 | 31.0 | 70.0 | 60.0 | 21.0 | 42.0 | 22.0 | 20.0 | 40-60 | 108.0 | ACUS2HI 500-20 | ACUS2H 500-20 | 3 |
| 630 | M12 | 34.5 | 80.0 | 64.0 | 13.0 | 44.0 | 22.0 | 20.0 | 40-60 | 118.0 | ACUS2HI 630-12 | ACUS2H 630-12 | 3 |
| 630 | M14 | 34.5 | 80.0 | 64.0 | 15.0 | 44.0 | 22.0 | 20.0 | 40-60 | 118.0 | ACUS2HI 630-14 | ACUS2H 630-14 | 3 |
| 630 | M16 | 34.5 | 80.0 | 64.0 | 17.0 | 44.0 | 22.0 | 20.0 | 40-60 | 118.0 | ACUS2HI 630-16 | ACUS2H 630-16 | 3 |
| 630 | M20 | 34.5 | 80.0 | 64.0 | 21.0 | 44.0 | 22.0 | 20.0 | 40-60 | 118.0 | ACUS2HI 630-20 | ACUS2H 630-20 | 3 |
| 800 | M12 | 40.0 | 100.0 | 75.0 | 13.0 | 52.0 | 22.0 | 20.0 | 40-60 | 144.0 | ACUS2HI 800-12 | ACUS2H 800-12 | 2 |
| 800 | M14 | 40.0 | 100.0 | 75.0 | 15.0 | 52.0 | 22.0 | 20.0 | 40-60 | 144.0 | ACUS2HI 800-14 | ACUS2H 800-14 | 2 |
| 800 | M16 | 40.0 | 100.0 | 75.0 | 17.0 | 52.0 | 22.0 | 20.0 | 40-60 | 144.0 | ACUS2HI 800-16 | ACUS2H 800-16 | 2 |
| 800 | M20 | 40.0 | 100.0 | 75.0 | 21.0 | 52.0 | 22.0 | 20.0 | 40-60 | 144.0 | ACUS2HI 800-20 | ACUS2H 800-20 | 2 |
| 1000 | M20 | 44.0 | 100.0 | 83.0 | 21.0 | 58.0 | 22.0 | 20.0 | 40-60 | 144.0 | ACUS2HI 1000-20 | ACUS2H 1000-20 | 1 |
Notes
All dimensions are in mm. Table captured from the provided datasheet.
Tube dimensions to DIN 46235.

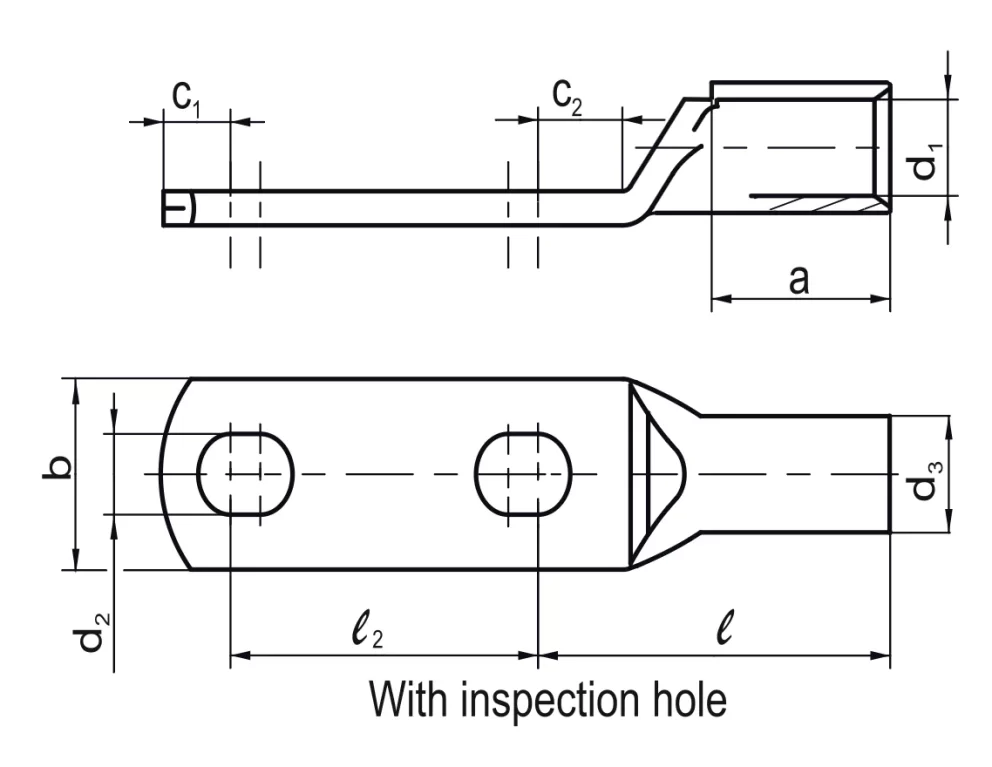

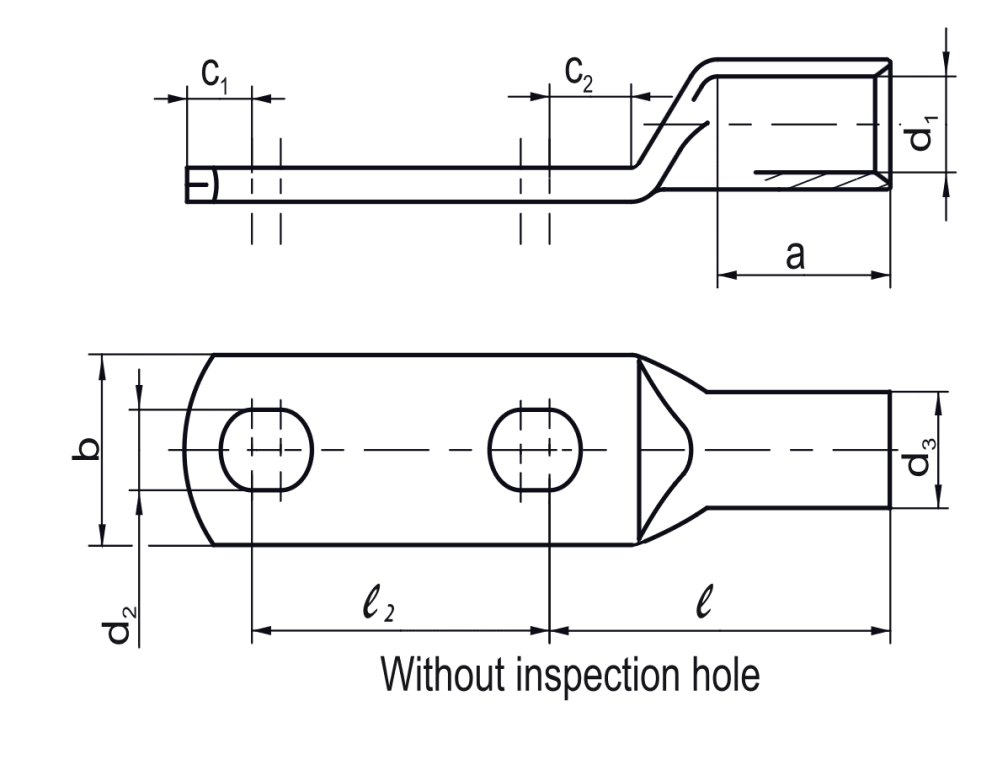

Technical Drawings
