Compression Cable Lugs & Connectors
Fork Terminals | Non-Insulated & Insulated
Copper fork (spade) terminals with electro-tinned finish, available in non-insulated and insulated types. Covering conductor sizes 1.5–6 mm².
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Key Features
Technical Specifications
Applications
Non-Insulated Type
| Size (mm²) | d1 (mm) | d2 (mm) | d3 (mm) | b (mm) | s (mm) | a (mm) | l_i (mm) | l (mm) | P/N |
|---|---|---|---|---|---|---|---|---|---|
| 1.5 | 1.7 | 3.6 | 3.2 | 6.8 | 0.8 | 5.0 | 11.1 | 14.5 | AFT-7249 |
| 2.5 | 2.3 | 3.6 | 3.9 | 6.5 | 0.8 | 5.0 | 11.0 | 14.0 | ARF-7251 |
| 4-6 | 3.5 | 3.6 | 5.5 | 6.0 | 1.0 | 6.0 | 11.0 | 15.0 | ATF-7253 |
Notes
All dimensions are in mm. Standard tolerance applies.

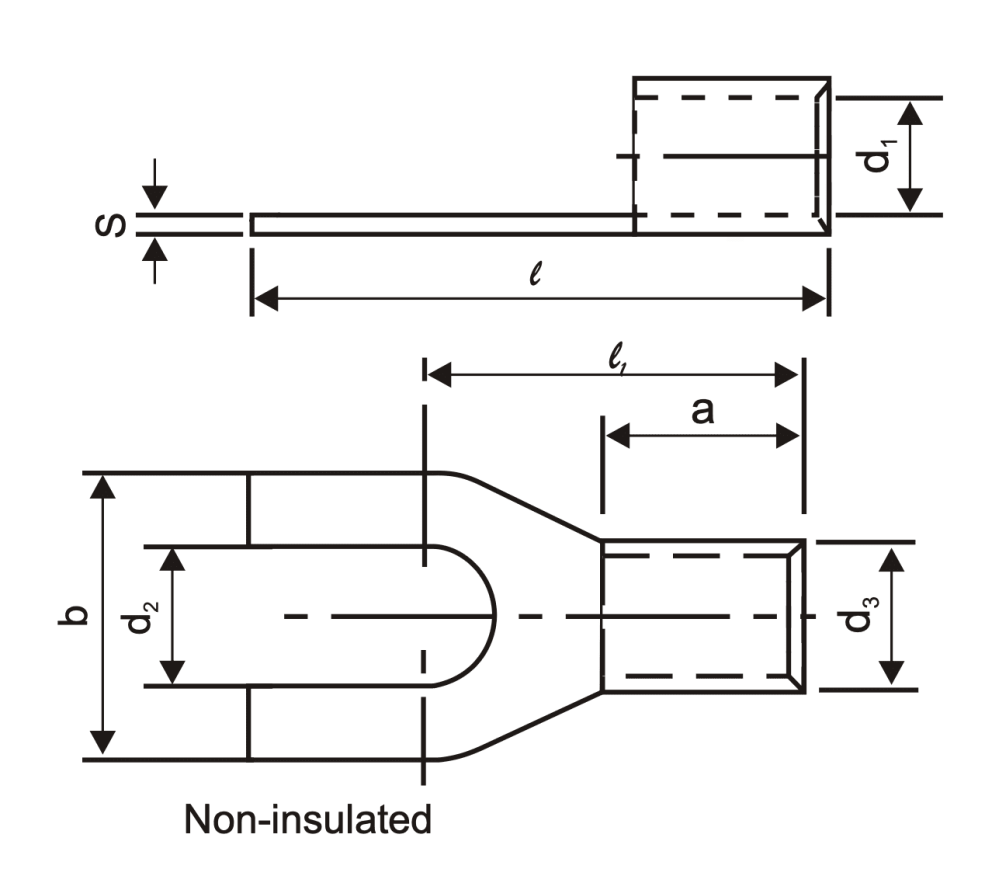

Technical Drawing
Insulated Type
| Size (mm²) | d1 (mm) | d2 (mm) | d3 (mm) | b (mm) | s (mm) | a (mm) | l_i (mm) | l (mm) | P/N |
|---|---|---|---|---|---|---|---|---|---|
| 1.5 | 1.7 | 3.6 | 3.2 | 6.8 | 0.8 | 5.0 | 15.0 | 19.0 | AFTI-7926 |
| 2.5 | 2.3 | 3.6 | 3.9 | 6.5 | 0.8 | 5.0 | 16.8 | 20.0 | AFTI-7928 |
| 4-6 | 3.5 | 3.6 | 5.5 | 6.0 | 1.0 | 6.0 | 21.0 | 24.0 | AFTI-7931 |
Notes
All dimensions are in mm. Standard tolerance applies.

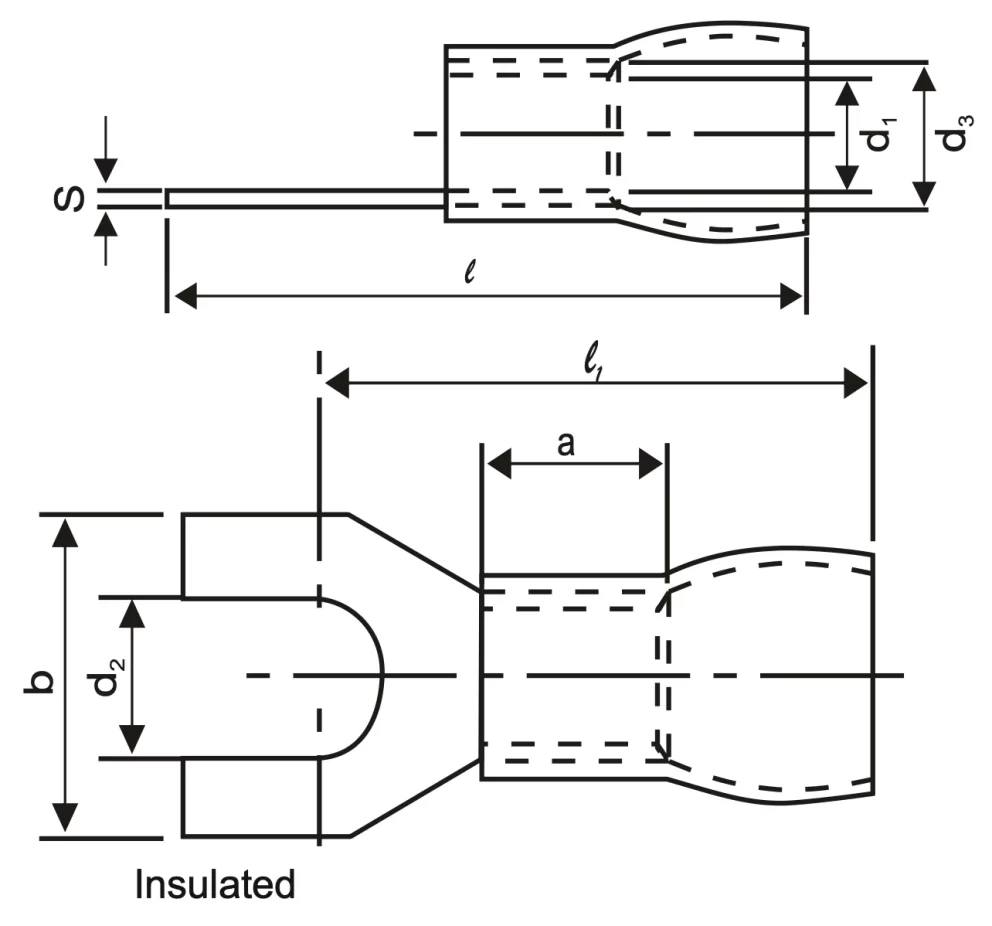

Technical Drawing
