Bootlace Terminals — Non-Insulated & Insulated
Copper bootlace (ferrule) terminals with electro-tinned finish, available in non-insulated and insulated types. Covering conductor sizes 1.5–6 mm² with ferrule lengths from 6 mm to 18 mm.
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Key Features
Technical Specifications
Applications
Non-Insulated Type
| Size (mm²) | d1 (mm) | d2 (mm) | l_i (mm) | l_g (mm) | P/N |
|---|---|---|---|---|---|
| 1.5 | 1.7 | 2.5 | 7.0 | 6.0 | AEH 1.5-6 |
| 1.5 | 1.7 | 2.5 | 10.0 | 8.0 | AEH 1.5-8 |
| 1.5 | 1.7 | 2.5 | 12.0 | 10.0 | AEH 1.5-10 |
| 1.5 | 1.7 | 2.5 | 18.0 | 16.0 | AEH 1.5-16 |
| 2.5 | 2.3 | 3.3 | 7.0 | 6.0 | AEH 2.5-6 |
| 2.5 | 2.3 | 3.3 | 10.0 | 8.0 | AEH 2.5-8 |
| 2.5 | 2.3 | 3.3 | 12.0 | 10.0 | AEH 2.5-10 |
| 2.5 | 2.3 | 3.3 | 18.0 | 16.0 | AEH 2.5-16 |
| 4-6 | 3.5 | 4.7 | 10.0 | 8.0 | AEH 4/6-8 |
| 4-6 | 3.5 | 4.7 | 12.0 | 10.0 | AEH 4/6-10 |
| 4-6 | 3.5 | 4.7 | 15.0 | 12.0 | AEH 4/6-12 |
| 4-6 | 3.5 | 4.7 | 18.0 | 16.0 | AEH 4/6-16 |
Notes
All dimensions are in mm. Standard tolerance applies.
Technical Drawing
Insulated Type
| Size (mm²) | d1 (mm) | d2 (mm) | l_i (mm) | l_g (mm) | P/N |
|---|---|---|---|---|---|
| 1.5 | 1.7 | 3.5 | 14.3 | 8.0 | AEHI 1.5-8 |
| 1.5 | 1.7 | 3.5 | 16.3 | 10.0 | AEHI 1.5-10 |
| 1.5 | 1.7 | 3.5 | 18.3 | 12.0 | AEHI 1.5-12 |
| 1.5 | 1.7 | 3.5 | 24.3 | 18.0 | AEHI 1.5-18 |
| 2.5 | 2.3 | 4.0 | 15.4 | 8.0 | AEHI 2.5-8 |
| 2.5 | 2.3 | 4.0 | 16.4 | 10.0 | AEHI 2.5-10 |
| 2.5 | 2.3 | 4.0 | 19.4 | 12.0 | AEHI 2.5-12 |
| 2.5 | 2.3 | 4.0 | 24.4 | 18.0 | AEHI 2.5-18 |
| 4-6 | 3.5 | 6.0 | 17.4 | 10.0 | AEHI 4/6-10 |
| 4-6 | 3.5 | 6.0 | 19.4 | 12.0 | AEHI 4/6-12 |
| 4-6 | 3.5 | 6.0 | 22.4 | 16.0 | AEHI 4/6-16 |
| 4-6 | 3.5 | 6.0 | 25.4 | 18.0 | AEHI 4/6-18 |
Notes
All dimensions are in mm. Standard tolerance applies.

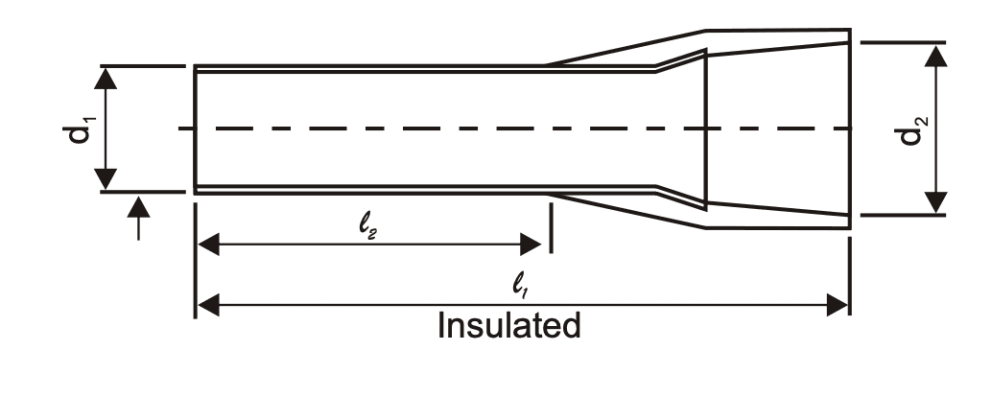

Technical Drawing
Standard Cable Lugs for Fine Stranded Round Conductors
Standard cable lugs for fine stranded round conductors. E-copper, electro tinned; available with or without…
Bimetallic Standard Cable Lugs for Stranded Round Conductors (Cu Washer)
Bimetallic cable lugs with integrated copper washer for connections in humid areas and non-tension aluminium…

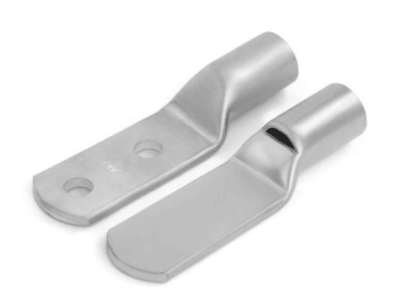

Standard Cable Lugs for Multi-Stranded Round / Sector-Shaped Conductors
