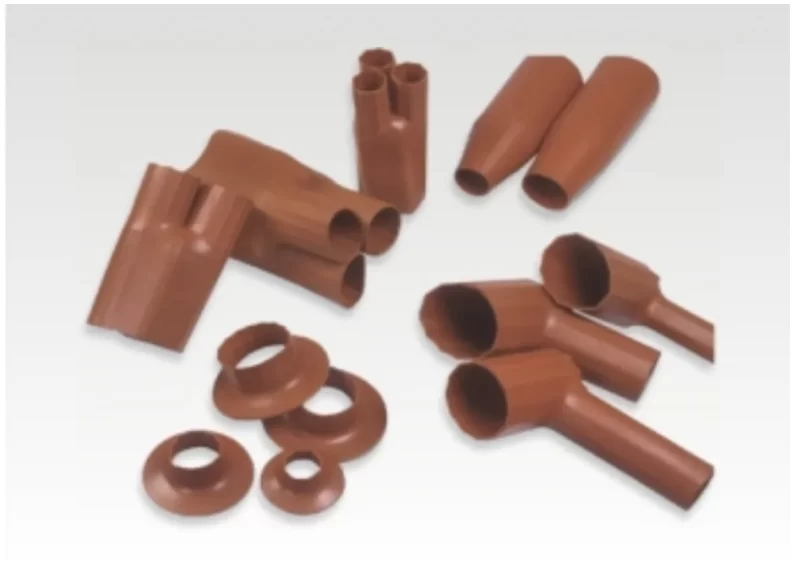

Heat Shrink Breakout, Boots & Shapes — upto 36 kV
Heat shrink breakout boots and shapes for medium voltage applications up to 36 kV. These components provide sealing and insulation for cable and conduit breakouts, rain shed protection, right-angle terminations,…
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Key Features
Technical Specifications
Applications
3-Way Insulating Breakout (IB)
| Part No | Expanded Hmin (mm) | Expanded Jmin (mm) | Recovered Hmax (mm) | Recovered Jmax (mm) |
|---|---|---|---|---|
| IB 130 | 75 | 32 | 30 | 13 |
| IB 2145 | 110 | 55 | 45 | 21 |
| IB 2755 | 135 | 64 | 55 | 27 |
Technical Drawing
Rain Shed (RS)
| Part No | D exp (min) (mm) | D rec (max) (mm) | D1 u00b110 (mm) |
|---|---|---|---|
| RS-1 | 35 | 17 | 89 |
| RS-2 | 52 | 21 | 122 |
| RS-3 | 65 | 23 | 136 |
| RS-4 | 75 | 28 | 136 |
Technical Drawing
Right Angle Boot (RAB)
| Part No | Expanded Hmin (mm) | Expanded Jmin (mm) | Recovered Hmax (mm) | Recovered Jmax (mm) |
|---|---|---|---|---|
| RAB-1 | 75 | 36 | 35 | 18 |
| RAB-2 | 75 | 50 | 35 | 26 |
| RAB-3 | 95 | 67 | 35 | 26 |
Technical Drawing
Straight Boot (SB)
| Part No | Expanded H (mm) | Expanded J (mm) | Recovered Max H (mm) | Recovered Max J (mm) | Full Shrunk P u00b110 (mm) |
|---|---|---|---|---|---|
| SB-1 | 80 | 34 | 32 | 19 | 225 |
| SB-2 | 80 | 58 | 32 | 19 | 225 |
Notes
All dimensions are in mm.
Technical Drawing
