DIN 46235
IEC 61238-1-3
Compression Cable Lugs & Connectors

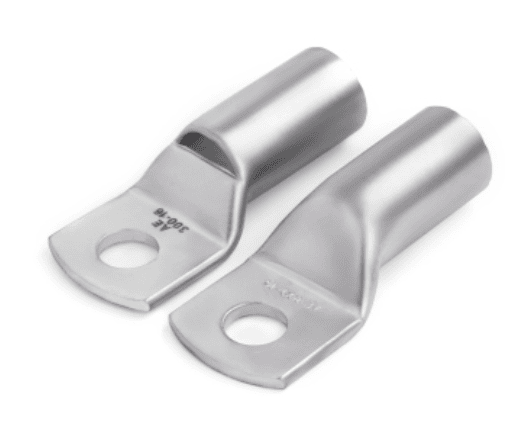

DIN Cable Lugs (Round Multi-Stranded Round / Sector-Shaped Conductors)
DIN cable lugs for round, multi-stranded round and sector-shaped conductors. E-copper, electro tinned; with or without inspection hole.
Material: E-Copper
Finish: Electro tinned
Nominal range: 6-1000 mm² (per table)
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Key Features
Design conforming to DIN 46235
With or without inspection hole
Tested to IEC 61238-1-3
E-copper, electro tinned
Technical Specifications
Material: E-Copper
Finish: Electro tinned
Nominal range: 6-1000 mm² (per table)
Applications
Power cable termination
Switchgear and transformer terminations
Industrial distribution panels
Specifications
| Nom-X Section Area (mm²) | Size of Stud Hole | d1 (mm) | a (mm) | b (mm) | d2 (mm) | d3 (mm) | cu2081 (mm) | cu2082 (mm) | l (mm) | P/N With Inspection Hole | P/N W/o Inspection Hole | Units/Pack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | M5 | 3.8 | 10.0 | 8.5 | 5.3 | 5.5 | 9.0 | 8.0 | 24.0 | ACUSDTI 6-5 | ACUSDT 6-5 | 100 |
| 6 | M6 | 3.8 | 10.0 | 8.5 | 6.4 | 5.5 | 10.5 | 8.0 | 24.0 | ACUSDTI 6-6 | ACUSDT 6-6 | 100 |
| 6 | M8 | 3.8 | 10.0 | 13.0 | 8.4 | 5.5 | 10.5 | 10.0 | 26.0 | ACUSDTI 6-8* | ACUSDT 6-8* | 100 |
| 10 | M5 | 4.5 | 10.0 | 9.0 | 5.3 | 6.0 | 6.5 | 8.0 | 27.0 | ACUSDTI 10-5 | ACUSDT 10-5 | 100 |
| 10 | M6 | 4.5 | 10.0 | 9.0 | 6.4 | 6.0 | 10.5 | 8.0 | 27.0 | ACUSDTI 10-6 | ACUSDT 10-6 | 100 |
| 10 | M8 | 4.5 | 10.0 | 13.0 | 8.4 | 6.0 | 10.5 | 10.0 | 29.0 | ACUSDTI 10-8* | ACUSDT 10-8* | 100 |
| 16 | M6 | 5.5 | 20.0 | 13.0 | 6.4 | 8.5 | 10.5 | 12.0 | 36.0 | ACUSDTI 16-6 | ACUSDT 16-6 | 100 |
| 16 | M8 | 5.5 | 20.0 | 13.0 | 8.4 | 8.5 | 13.0 | 12.0 | 36.0 | ACUSDTI 16-8 | ACUSDT 16-8 | 100 |
| 16 | M10 | 5.5 | 20.0 | 17.0 | 10.5 | 8.5 | 15.0 | 12.0 | 36.0 | ACUSDTI 16-10 | ACUSDT 16-10 | 100 |
| 16 | M12 | 5.5 | 20.0 | 18.5 | 13.0 | 8.5 | 16.0 | 12.0 | 36.0 | ACUSDTI 16-12* | ACUSDT 16-12* | 100 |
| 25 | M6 | 7.0 | 20.0 | 17.0 | 6.4 | 10.0 | 10.5 | 13.0 | 38.0 | ACUSDTI 25-6 | ACUSDT 25-6 | 50 |
| 25 | M8 | 7.0 | 20.0 | 17.0 | 8.4 | 10.0 | 13.0 | 13.0 | 38.0 | ACUSDTI 25-8 | ACUSDT 25-8 | 50 |
| 25 | M10 | 7.0 | 20.0 | 17.0 | 10.5 | 10.0 | 15.0 | 13.0 | 38.0 | ACUSDTI 25-10 | ACUSDT 25-10 | 50 |
| 25 | M12 | 7.0 | 20.0 | 19.0 | 13.0 | 10.0 | 16.0 | 13.0 | 38.0 | ACUSDTI 25-12 | ACUSDT 25-12 | 50 |
| 35 | M8 | 8.2 | 20.0 | 19.0 | 8.4 | 12.5 | 13.0 | 13.0 | 42.0 | ACUSDTI 35-8 | ACUSDT 35-8 | 50 |
| 35 | M10 | 8.2 | 20.0 | 19.0 | 10.5 | 12.5 | 15.0 | 13.0 | 42.0 | ACUSDTI 35-10 | ACUSDT 35-10 | 50 |
| 35 | M12 | 8.2 | 20.0 | 21.0 | 13.0 | 12.5 | 16.0 | 13.0 | 42.0 | ACUSDTI 35-12 | ACUSDT 35-12 | 50 |
| 50 | M8 | 10.0 | 28.0 | 24.0 | 8.4 | 14.5 | 13.0 | 13.0 | 52.0 | ACUSDTI 50-8 | ACUSDT 50-8 | 50 |
| 50 | M10 | 10.0 | 28.0 | 24.0 | 10.5 | 14.5 | 15.0 | 13.0 | 52.0 | ACUSDTI 50-10 | ACUSDT 50-10 | 50 |
| 50 | M12 | 10.0 | 28.0 | 24.0 | 13.0 | 14.5 | 16.0 | 13.0 | 52.0 | ACUSDTI 50-12 | ACUSDT 50-12 | 50 |
| 50 | M14 | 10.0 | 28.0 | 24.0 | 15.0 | 14.5 | 19.0 | 16.0 | 55.0 | ACUSDTI 50-14* | ACUSDT 50-14* | 50 |
| 50 | M16 | 10.0 | 28.0 | 28.0 | 17.0 | 14.5 | 19.0 | 16.0 | 55.0 | ACUSDTI 50-16 | ACUSDT 50-16 | 50 |
| 70 | M8 | 11.5 | 28.0 | 24.0 | 8.4 | 16.5 | 13.0 | 13.0 | 55.0 | ACUSDTI 70-8 | ACUSDT 70-8 | 50 |
| 70 | M10 | 11.5 | 28.0 | 24.0 | 10.5 | 16.5 | 15.0 | 13.0 | 55.0 | ACUSDTI 70-10 | ACUSDT 70-10 | 50 |
| 70 | M12 | 11.5 | 28.0 | 24.0 | 13.0 | 16.5 | 16.0 | 13.0 | 55.0 | ACUSDTI 70-12 | ACUSDT 70-12 | 50 |
| 70 | M14 | 11.5 | 28.0 | 24.0 | 15.0 | 16.5 | 19.0 | 16.0 | 58.0 | ACUSDTI 70-14* | ACUSDT 70-14* | 50 |
| 70 | M16 | 11.5 | 28.0 | 30.0 | 17.0 | 16.5 | 19.0 | 16.0 | 58.0 | ACUSDTI 70-16 | ACUSDT 70-16 | 50 |
| 95 | M10 | 13.5 | 35.0 | 28.0 | 10.5 | 19.0 | 15.0 | 13.0 | 65.0 | ACUSDTI 95-10 | ACUSDT 95-10 | 50 |
| 95 | M12 | 13.5 | 35.0 | 28.0 | 13.0 | 19.0 | 16.0 | 13.0 | 65.0 | ACUSDTI 95-12 | ACUSDT 95-12 | 50 |
| 95 | M14 | 13.5 | 35.0 | 28.0 | 15.0 | 19.0 | 19.0 | 16.0 | 68.0 | ACUSDTI 95-14* | ACUSDT 95-14* | 50 |
| 95 | M16 | 13.5 | 35.0 | 32.0 | 17.0 | 19.0 | 19.0 | 16.0 | 68.0 | ACUSDTI 95-16 | ACUSDT 95-16 | 50 |
| 120 | M10 | 15.5 | 35.0 | 32.0 | 10.5 | 21.0 | 15.0 | 16.0 | 70.0 | ACUSDTI 120-10 | ACUSDT 120-10 | 50 |
| 120 | M12 | 15.5 | 35.0 | 32.0 | 13.0 | 21.0 | 16.0 | 16.0 | 70.0 | ACUSDTI 120-12 | ACUSDT 120-12 | 50 |
| 120 | M14 | 15.5 | 35.0 | 32.0 | 15.0 | 21.0 | 19.0 | 16.0 | 70.0 | ACUSDTI 120-14* | ACUSDT 120-14* | 50 |
| 120 | M16 | 15.5 | 35.0 | 32.0 | 17.0 | 21.0 | 19.0 | 16.0 | 70.0 | ACUSDTI 120-16 | ACUSDT 120-16 | 50 |
| 120 | M20 | 15.5 | 35.0 | 38.0 | 21.0 | 21.0 | 22.0 | 20.0 | 74.0 | ACUSDTI 120-20 | ACUSDT 120-20 | 50 |
| 150 | M10 | 17.0 | 35.0 | 34.0 | 10.5 | 23.5 | 15.0 | 16.0 | 78.0 | ACUSDTI 150-10 | ACUSDT 150-10 | 25 |
| 150 | M12 | 17.0 | 35.0 | 34.0 | 13.0 | 23.5 | 16.0 | 16.0 | 78.0 | ACUSDTI 150-12 | ACUSDT 150-12 | 25 |
| 150 | M14 | 17.0 | 35.0 | 34.0 | 15.0 | 23.5 | 19.0 | 16.0 | 78.0 | ACUSDTI 150-14* | ACUSDT 150-14* | 25 |
| 150 | M16 | 17.0 | 35.0 | 34.0 | 17.0 | 23.5 | 19.0 | 16.0 | 78.0 | ACUSDTI 150-16 | ACUSDT 150-16 | 25 |
| 150 | M20 | 17.0 | 35.0 | 40.0 | 21.0 | 23.5 | 22.0 | 20.0 | 82.0 | ACUSDTI 150-20 | ACUSDT 150-20 | 25 |
| 185 | M10 | 19.0 | 40.0 | 37.0 | 10.5 | 25.5 | 15.0 | 16.0 | 82.0 | ACUSDTI 185-10 | ACUSDT 185-10 | 25 |
| 185 | M12 | 19.0 | 40.0 | 37.0 | 13.0 | 25.5 | 16.0 | 16.0 | 82.0 | ACUSDTI 185-12 | ACUSDT 185-12 | 25 |
| 185 | M14 | 19.0 | 40.0 | 37.0 | 15.0 | 25.5 | 19.0 | 16.0 | 82.0 | ACUSDTI 185-14* | ACUSDT 185-14* | 25 |
| 185 | M16 | 19.0 | 40.0 | 37.0 | 17.0 | 25.5 | 19.0 | 16.0 | 82.0 | ACUSDTI 185-16 | ACUSDT 185-16 | 25 |
| 185 | M20 | 19.0 | 40.0 | 40.0 | 21.0 | 25.5 | 22.0 | 20.0 | 86.0 | ACUSDTI 185-20 | ACUSDT 185-20 | 25 |
| 240 | M12 | 21.5 | 40.0 | 42.0 | 13.0 | 29.0 | 16.0 | 20.0 | 92.0 | ACUSDTI 240-12 | ACUSDT 240-12 | 10 |
| 240 | M14 | 21.5 | 40.0 | 42.0 | 15.0 | 29.0 | 19.0 | 20.0 | 92.0 | ACUSDTI 240-14* | ACUSDT 240-14* | 10 |
| 240 | M16 | 21.5 | 40.0 | 42.0 | 17.0 | 29.0 | 19.0 | 20.0 | 92.0 | ACUSDTI 240-16 | ACUSDT 240-16 | 10 |
| 240 | M20 | 21.5 | 40.0 | 45.0 | 21.0 | 29.0 | 22.0 | 20.0 | 92.0 | ACUSDTI 240-20 | ACUSDT 240-20 | 10 |
| 300 | M12 | 24.5 | 50.0 | 48.0 | 13.0 | 32.0 | 16.0 | 20.0 | 100.0 | ACUSDTI 300-12 | ACUSDT 300-12 | 5 |
| 300 | M14 | 24.5 | 50.0 | 48.0 | 15.0 | 32.0 | 19.0 | 20.0 | 100.0 | ACUSDTI 300-14* | ACUSDT 300-14* | 5 |
| 300 | M16 | 24.5 | 50.0 | 48.0 | 17.0 | 32.0 | 19.0 | 20.0 | 100.0 | ACUSDTI 300-16 | ACUSDT 200-16 | 5 |
| 300 | M20 | 24.5 | 50.0 | 48.0 | 21.0 | 32.0 | 22.0 | 20.0 | 100.0 | ACUSDTI 300-20 | ACUSDT 300-20 | 5 |
| 400 | M12 | 27.5 | 70.0 | 55.0 | 13.0 | 38.5 | 25.0 | 20.0 | 115.0 | ACUSDTI 400-12* | ACUSDT 400-12* | 5 |
| 400 | M14 | 27.5 | 70.0 | 55.0 | 15.0 | 38.5 | 25.0 | 20.0 | 115.0 | ACUSDTI 400-14* | ACUSDT 400-14* | 5 |
| 400 | M16 | 27.5 | 70.0 | 55.0 | 17.0 | 38.5 | 25.0 | 20.0 | 115.0 | ACUSDTI 400-16 | ACUSDT 400-16 | 5 |
| 400 | M20 | 27.5 | 70.0 | 55.0 | 21.0 | 38.5 | 25.0 | 20.0 | 115.0 | ACUSDTI 400-20 | ACUSDT 400-20 | 5 |
| 500 | M12 | 31.0 | 70.0 | 60.0 | 13.0 | 42.0 | 25.0 | 20.0 | 125.0 | ACUSDTI 500-12* | ACUSDT 500-12* | 3 |
| 500 | M14 | 31.0 | 70.0 | 60.0 | 15.0 | 42.0 | 25.0 | 20.0 | 125.0 | ACUSDTI 500-14* | ACUSDT 500-14* | 3 |
| 500 | M16 | 31.0 | 70.0 | 60.0 | 17.0 | 42.0 | 25.0 | 20.0 | 125.0 | ACUSDTI 500-16* | ACUSDT 500-16* | 3 |
| 500 | M20 | 31.0 | 70.0 | 60.0 | 21.0 | 42.0 | 25.0 | 20.0 | 125.0 | ACUSDTI 500-20 | ACUSDT 500-20 | 3 |
| 630 | M12 | 34.5 | 80.0 | 64.0 | 13.0 | 44.0 | 25.0 | 20.0 | 135.0 | ACUSDTI 630-12* | ACUSDT 630-12* | 3 |
| 630 | M14 | 34.5 | 80.0 | 64.0 | 15.0 | 44.0 | 25.0 | 20.0 | 135.0 | ACUSDTI 630-14* | ACUSDT 630-14* | 3 |
| 630 | M16 | 34.5 | 80.0 | 64.0 | 17.0 | 44.0 | 25.0 | 20.0 | 135.0 | ACUSDTI 630-16* | ACUSDT 630-16* | 3 |
| 630 | M20 | 34.5 | 80.0 | 64.0 | 21.0 | 44.0 | 25.0 | 20.0 | 135.0 | ACUSDTI 630-20 | ACUSDT 630-20 | 3 |
| 800 | M12 | 40.0 | 100.0 | 75.0 | 13.0 | 52.0 | 25.0 | 20.0 | 165.0 | ACUSDTI 800-12* | ACUSDT 800-12* | 2 |
| 800 | M14 | 40.0 | 100.0 | 75.0 | 15.0 | 52.0 | 25.0 | 20.0 | 165.0 | ACUSDTI 800-14* | ACUSDT 800-14* | 2 |
| 800 | M16 | 40.0 | 100.0 | 75.0 | 17.0 | 52.0 | 25.0 | 20.0 | 165.0 | ACUSDTI 800-16* | ACUSDT 800-16* | 2 |
| 800 | M20 | 40.0 | 100.0 | 75.0 | 21.0 | 52.0 | 25.0 | 20.0 | 165.0 | ACUSDTI 800-20 | ACUSDT 800-20 | 2 |
| 1000 | M16 | 44.0 | 100.0 | 85.0 | 17.0 | 58.0 | 25.0 | 20.0 | 165.0 | ACUSDTI 1000-16* | ACUSDT 1000-16* | 1 |
| 1000 | M20 | 44.0 | 100.0 | 85.0 | 21.0 | 58.0 | 25.0 | 20.0 | 165.0 | ACUSDTI 1000-20 | ACUSDT 1000-20 | 1 |
Notes
All dimensions are in mm. Standard tolerance applies.
Design conforming to DIN 46235, tested to IEC 61238-1-3.
ACUSDTI = with inspection hole; ACUSDT = without inspection hole.
* values and codes are transcribed as shown in the source datasheet.

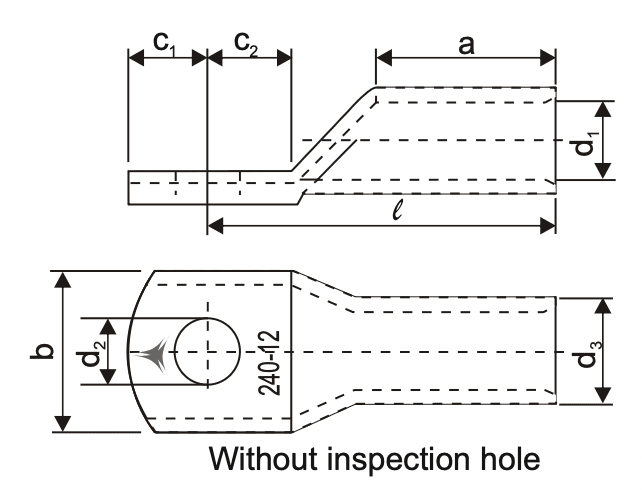

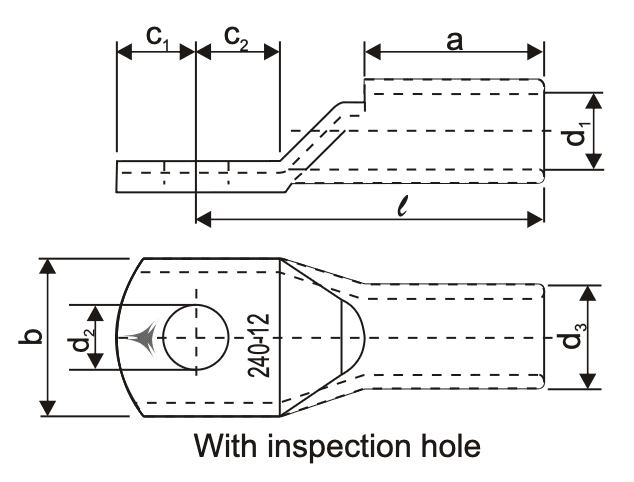

Technical Drawings
