IEC 61238-1
Shear Bolt Cable Lugs & Connectors
Shear Bolt LV Straight Connector
For LV & MV applications with sector shape stranded or solid conductor. Manufactured from aluminium alloy with torque-calibrated shear-off bolts ensuring consistent contact pressure. Confirming to IEC 61238-1 requirements.
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Key Features
For sector shape stranded or solid conductor
Aluminium alloy construction
Confirming to IEC 61238-1 requirements
Applications
LV & MV distribution network
Utility & EPC projects
Transformer & switchgear terminations
Specifications
| Nom X-Section Area min (mm²) | Nom X-Section Area max (mm²) | a (mm) | b (mm) | d3 (mm) | A/F (mm) | P/N |
|---|---|---|---|---|---|---|
| 50 | 95 | 80 | 25 | 25 | 13 | ASBLVIC 50-95 |
| 95 | 185 | 100 | 34 | 32.5 | 17 | ASBLVIC 95-185 |
| 185 | 300 | 120 | 40 | 41 | 17 | ASBLVIC 185-300 |

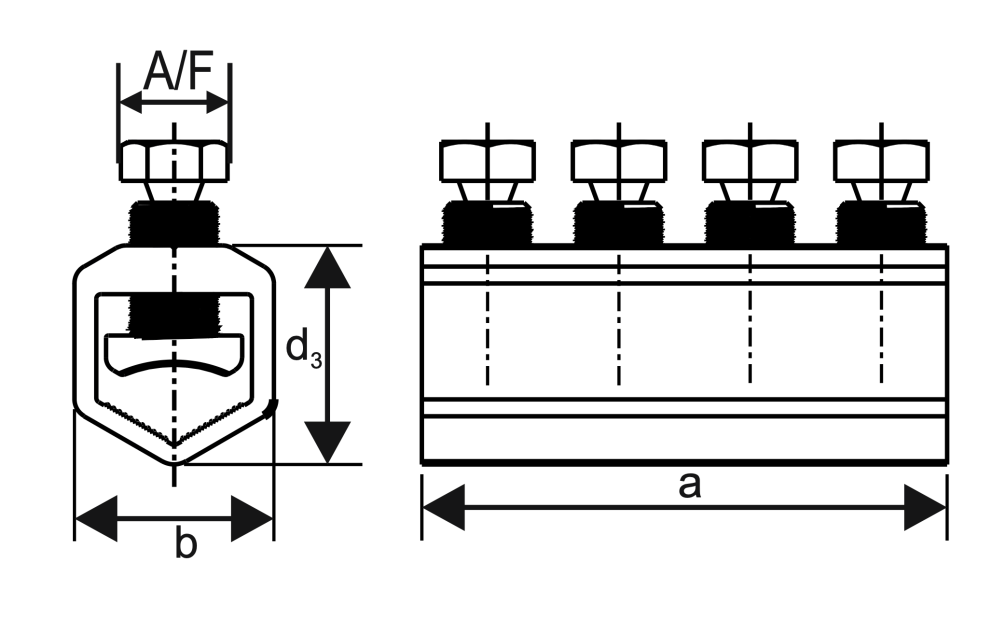

Technical Drawing
