Shear Bolt Cable Lugs & Connectors
Shear Bolt LV Branch Connector
Branch connector for LV & MV applications with sector shape stranded or solid conductor. IEC 61238-1 compliant with aluminium alloy construction.
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Key Features
Sector shape stranded or solid conductor
Aluminium alloy body
Confirming to IEC 61238-1 requirements
Applications
LV & MV distribution branching
Utility tap-off connections
Street lighting connections
Specifications
| Nom X-Section Area min (mm²) | Nom X-Section Area max (mm²) | a (mm) | b (mm) | d3 (mm) | A/F (mm) | P/N |
|---|---|---|---|---|---|---|
| 70-95 | 50-70 | 42 | 30 | 42 | 13 | ASBLVUBC 70-95/50-70 |
| 150-185 | 70-150 | 50 | 37 | 54 | 17 | ASBLVUBC 150-185/70-150 |
| 185-300 | 185-300 | 60 | 51 | 65.5 | 17 | ASBLVUBC 185-300/185-300 |

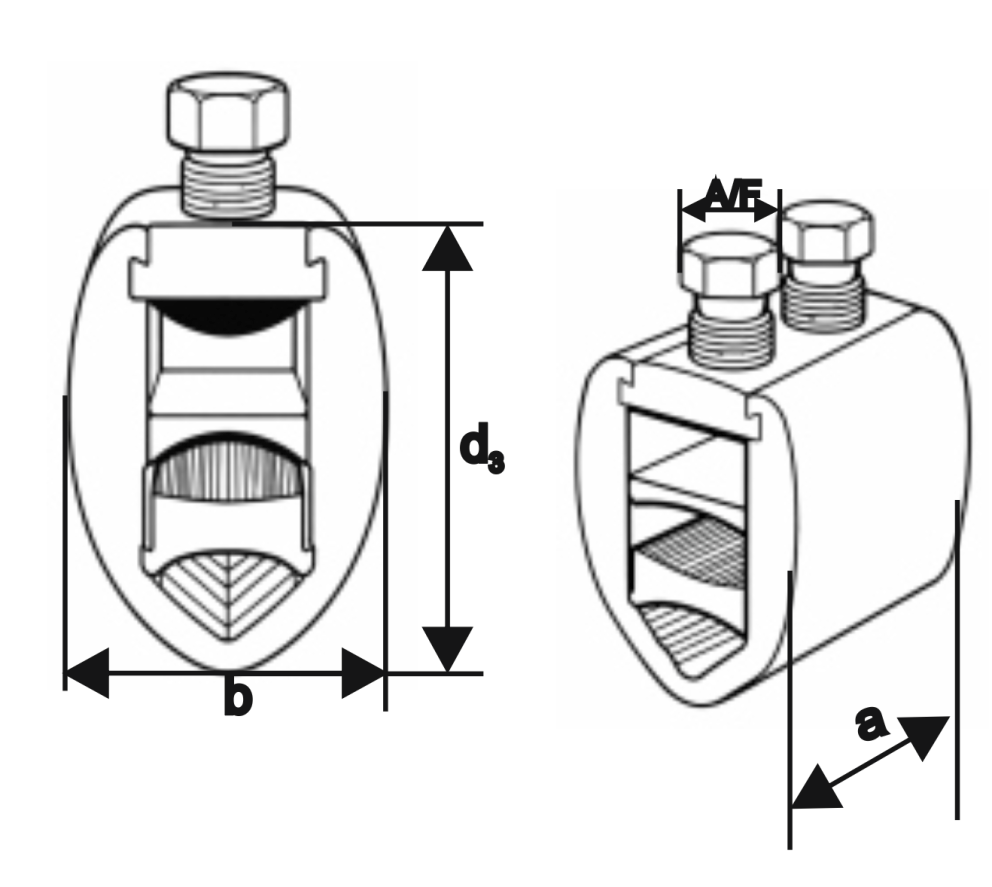

Technical Drawing
