Separable Connectors

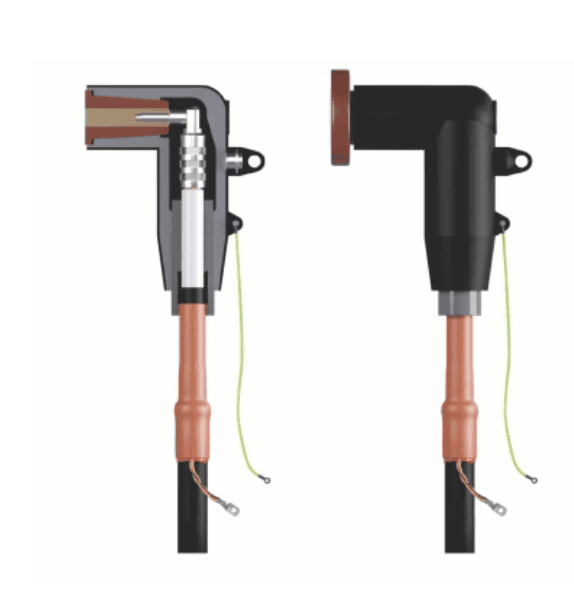

Separable Connectors — 1 & 3 Core up to 36kV, 630A for XLPE/EPR Insulated Cable
As a result of the different models of bushings and the varying field requirements, different versions of separable connectors are available. A-1 Electricals offers separable connectors that are elbow-shaped, straight…
Voltage range: 12 kV to 36 kV
Current rating: up to 630 A
Cable types: XLPE / EPR insulated
Cores: 1 core and 3 core
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Key Features
One-piece connector made of insulating Silicon/EPDM rubber with semi-conductor screen
Indoor and outdoor installation in any position
Connectable/disconnectable under no-load and no-voltage conditions
Test point for voltage status monitoring
Fixture device on the bushing
Energization only after plugging on the bushing
Available in elbow-shaped, straight or T-shaped configurations
Multi-ranged insulation bodies compatible with compression or shear off cable lugs
Technical Specifications
Voltage range: 12 kV to 36 kV
Current rating: up to 630 A
Cable types: XLPE / EPR insulated
Cores: 1 core and 3 core
A Interface: 12 and 24 kV — EN 50180 / EN 50181
B Interface: 24 and 36 kV — EN 50180 / EN 50181
C Interface: 24 and 36 kV — EN 50180 / EN 50181
Insulation material: Silicon / EPDM rubber
Applications
Connection of MV single-core cables to transformers
Cubicle and compact substation connections
Motor terminal connections
Switchgear cable terminations
Medium voltage power distribution networks
