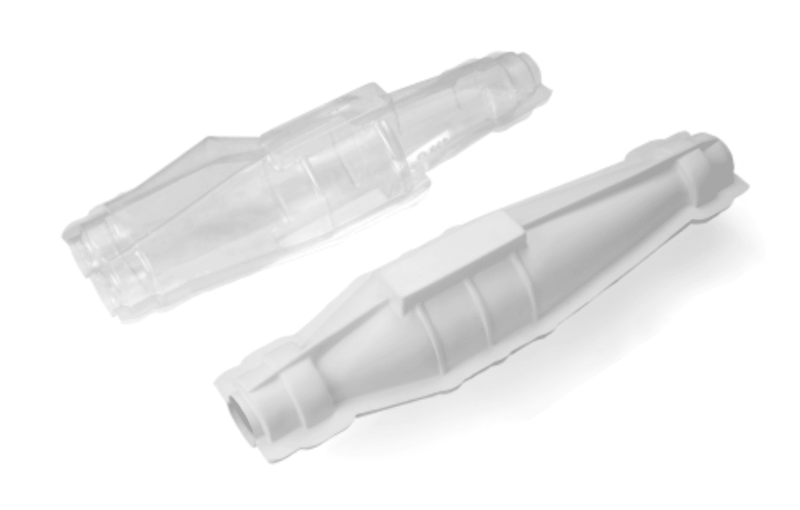

Resin Cast Straight and Branch Joints
LV Joints, Resin Joints | LV Inline Resin Joints for Armoured Cables
LV inline resin joints designed to connect LV power cables inline by encapsulating in a resin filled shell. Clear rigid joint shells aid correct installation. Shell designed for use with…
Cable conductor sizes: 1.5-300 mm²
Cable entry diameter: 9-77 mm
Configurations: Straight joint and Branch joint
Core options: 2-core, 3-core, 4-core
ISO 9001:2015
Quality System
CE / RoHS
Compliant
IEC Tested
Certified
Key Features
Designed to connect LV power cables inline by encapsulating in a resin filled shell
Excellent mechanical protection
Clear rigid joint shells to aid correct installation
Shell designed to use with crimp or mechanical connectors
Available in straight joint and branch joint types
Technical Specifications
Cable conductor sizes: 1.5-300 mm²
Cable entry diameter: 9-77 mm
Configurations: Straight joint and Branch joint
Core options: 2-core, 3-core, 4-core
Applications
LV armoured cable inline jointing
Underground LV cable systems
Multi-core LV cable connections
Distribution network cable jointing

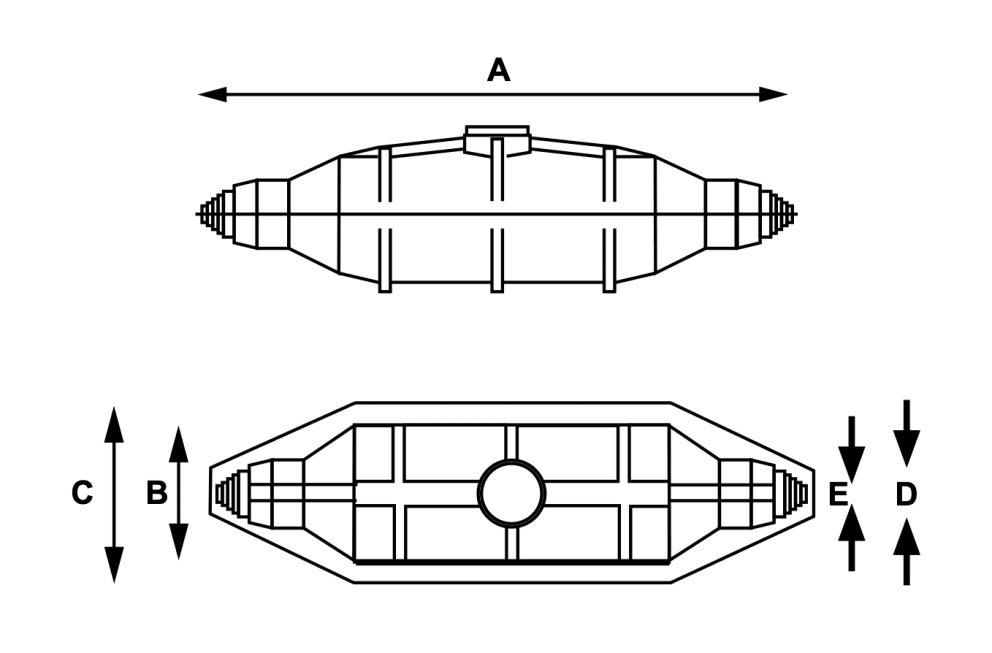

Straight Joints | Dimensions
| Part Number | A (mm) | B (mm) | C (mm) | ΦD (mm) | ΦE (mm) |
|---|---|---|---|---|---|
| ARSTJ-6 | 275 | 50 | 85 | 21 | 9 |
| ARSTJ-16 | 295 | 60 | 95 | 27 | 15 |
| ARSTJ-35 | 330 | 80 | 115 | 33 | 21 |
| ARSTJ-70 | 395 | 110 | 140 | 41 | 29 |
| ARSTJ-120 | 575 | 120 | 150 | 57 | 39 |
| ARSTJ-185 | 670 | 135 | 170 | 67 | 49 |
| ARSTJ-300 | 870 | 160 | 195 | 77 | 59 |
Notes
All dimensions are in mm.
Technical Drawing
Straight Joints | Selection
| Part Number | 2-core (mm²) | 3-core (mm²) | 4-core (mm²) | Entry Dia. min (mm) | Entry Dia. max (mm) |
|---|---|---|---|---|---|
| ARSTJ-6 | 1.5-10 | 1.5-10 | 1.5-6 | 9 | 21 |
| ARSTJ-16 | 10-25 | 10-25 | 10-16 | 15 | 27 |
| ARSTJ-35 | 35-50 | 35-50 | 25-35 | 21 | 33 |
| ARSTJ-70 | 70-95 | 70-95 | 50-70 | 29 | 41 |
| ARSTJ-120 | 120-150 | 120-150 | 95-120 | 39 | 57 |
| ARSTJ-185 | 185-240 | 185-240 | 150-185 | 49 | 67 |
| ARSTJ-300 | 300 | 300 | 240-300 | 59 | 77 |
Notes
Cable conductor size in mm². Cable entry diameter in mm.
Technical Drawing

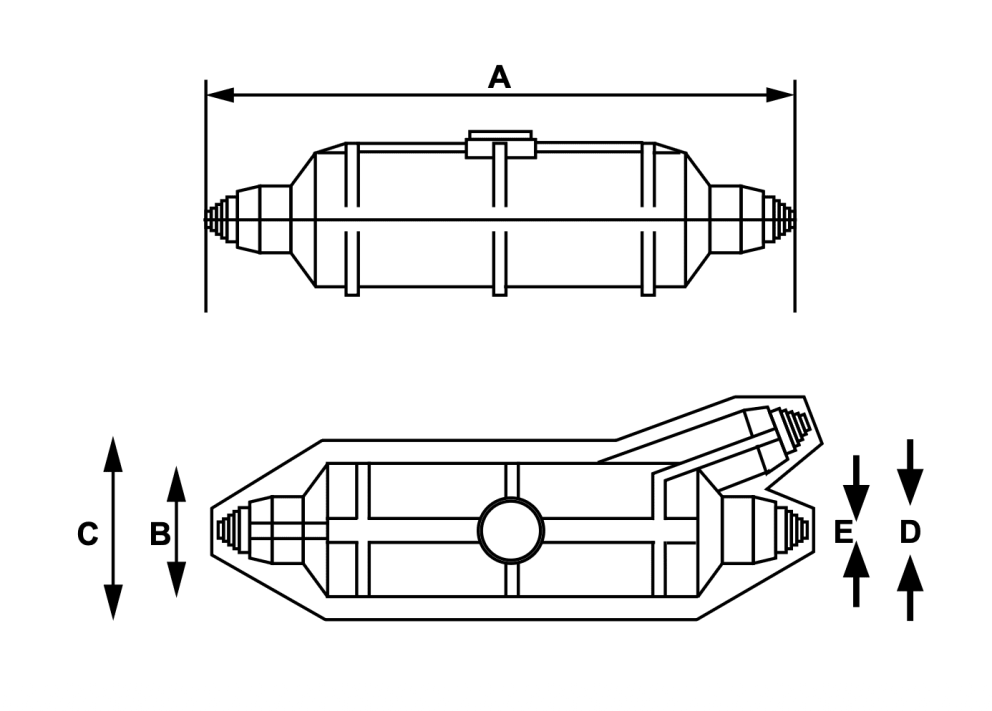

Branch Joints | Dimensions
| Part Number | A (mm) | B (mm) | C (mm) | ΦD (mm) | ΦE (mm) |
|---|---|---|---|---|---|
| ARBJT-6 | 245 | 60 | 120 | 21 | 9 |
| ARBJT-16 | 315 | 75 | 140 | 27 | 15 |
| ARBJT-35 | 380 | 100 | 170 | 33 | 21 |
| ARBJT-70 | 470 | 120 | 185 | 41 | 29 |
| ARBJT-120 | 595 | 150 | 220 | 57 | 39 |
| ARBJT-185 | 690 | 180 | 240 | 67 | 49 |
| ARBJT-300 | 870 | 195 | 275 | 77 | 59 |
Notes
All dimensions are in mm.
Technical Drawing
Branch Joints | Selection
| Part Number | 2-core (mm²) | 3-core (mm²) | 4-core (mm²) | Entry Dia. min (mm) | Entry Dia. max (mm) |
|---|---|---|---|---|---|
| ARSTJ-6 | 1.5-10 | 1.5-10 | 1.5-6 | 9 | 21 |
| ARSTJ-16 | 10-25 | 10-25 | 10-16 | 15 | 27 |
| ARSTJ-35 | 35-50 | 35-50 | 25-35 | 21 | 33 |
| ARSTJ-70 | 70-95 | 70-95 | 50-70 | 29 | 41 |
| ARSTJ-120 | 120-150 | 120-150 | 95-120 | 39 | 57 |
| ARSTJ-185 | 185-240 | 185-240 | 150-185 | 49 | 67 |
| ARSTJ-300 | 300 | 300 | 240-300 | 59 | 77 |
Notes
Cable conductor size in mm². Cable entry diameter in mm.
Technical Drawing
